Compact 6G-SDI router with built in re-synchronizers on all inputs allows clean switching between all video sources of the same video standard, and can be used as 12 re-synchronizers for automatic re-timing of SDI feeds. Smart Videohub CleanSwitch supports 12 inputs and 12 outputs in virtually all SD, HD and Ultra HD video formats. Supports multiple formats on the same router at the same time and will clean switch between multiple formats that match the reference frame rate when the switching is between the same video standard. Includes front panel button and spin knob routing, elegant machined metal front panel with LCD for routing display and video monitoring and remote Ethernet control.

12 x 10-bit SD-SDI, HD-SDI and 6G-SDI.

12 x 10-bit SD-SDI, HD-SDI and 6G-SDI.

3

On all 12 inputs for clean switch.

On all SDI outputs.

Tri-Sync or Black Burst.

Ethernet.

RJ-6 RS-422.

Auto detection of SD, HD or 6G-SDI. Simultaneous routing of 4K, HD and SD video.

USB

12 buttons for local control of Videohub. 6 buttons and scroll wheel for control of LCD display or RJ45 Ethernet.

Via front panel LCD or RJ45 Ethernet.

1 x input for controlling router crosspoint switching.

525i59.94 NTSC, 625i50 PAL.

720p50, 720p59.94, 720p60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
1080i50, 1080i59.94, 1080i60

2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p
2K DCI 23.98PsF, 2K DCI 24PsF, 2K DCI 25PsF

2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30

4K DCI 23.98p, 4K DCI 24p, 4K DCI 25p

SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M Level A and B , ITU-R BT.656 and ITU-R BT.601.

4:2:2 and 4:4:4

Television standard sample rate of 48kHz and 24 bit.

10-bit 4:2:2 and 4:4:4

YUV or RGB.

Automatically selects between SD-SDI, HD-SDI, and 6G-SDI on each input.

Video payload identification ancillary data as per SMPTE 352M.

12 buttons for local control of Videohub with 6 buttons and scroll wheel for menu control. 2.2 inch color display.

Includes Blackmagic Videohub software control panel for Mac and Windows. Supports Blackmagic Smart Control and Blackmagic Master Control hardware panels. Includes Blackmagic Videohub SDK and Ethernet Videohub Control Protocol.

Router control included free for Windows™ and Mac™.

Via included updater application.

Operating Systems

Mac 13.0 Ventura,
Mac 14.0 Sonoma or later.

Windows 10, 64-bit.
Windows 11.

Router connections preserved and restored instantly at power on.

IEC power cable required. 100 - 240V AC input.

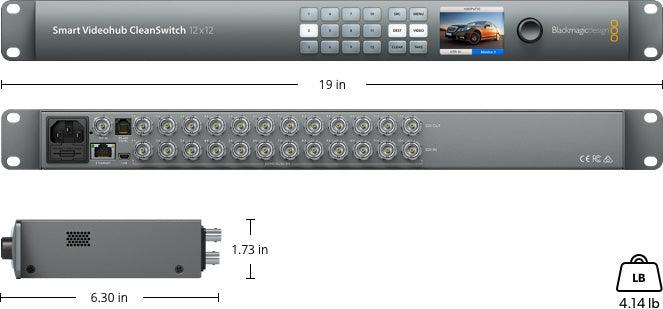

Physical Specifications

0° to 40° C (32° to 104° F)

-20° to 45° C (-4° to 113° F)

0% to 90% non-condensing
