Description

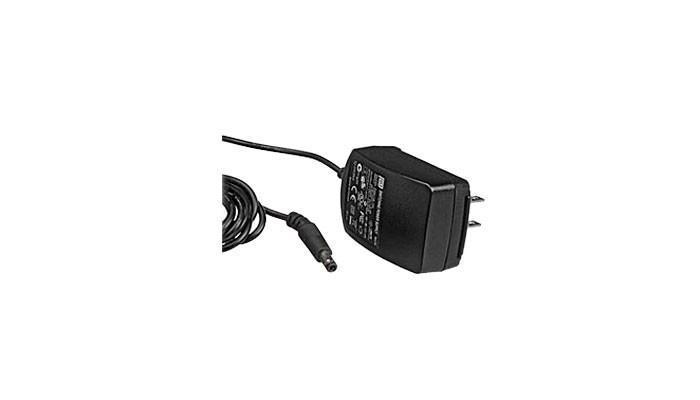

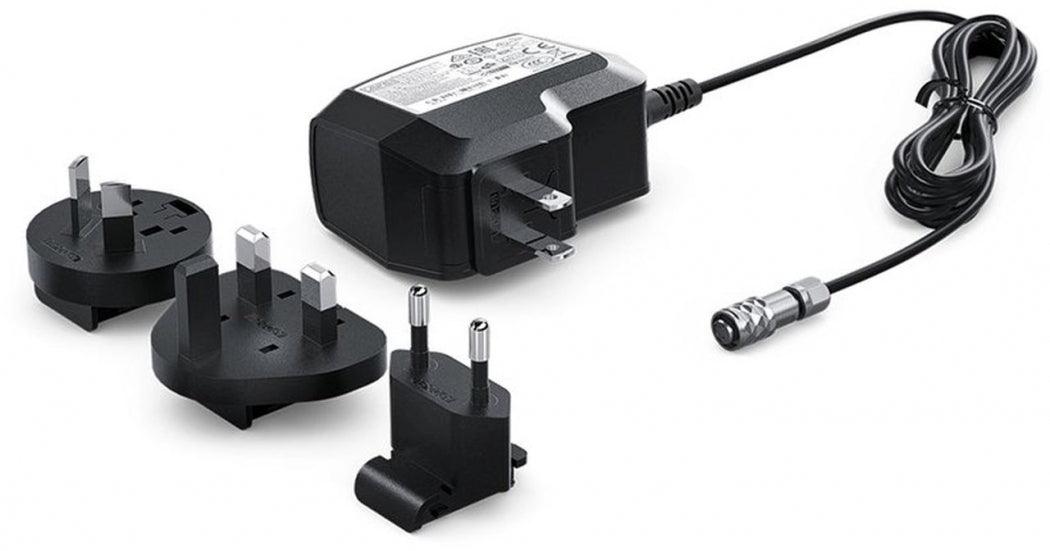

Replacement Blackmagic Design Pocket Cinema Camera 4K Power Supply

External Control
Blackmagic Zoom Demand and Blackmagic Focus Demand for controlling your camera and lens from tripod handles.

iPad control, Bluetooth control, USB PTP camera control. External control of some camera settings, focus, iris and zoom with compatible lenses, color corrector, tally and internal record start and stop when used with a compatible ATEM and ATEM Software Control.

Effective Sensor Size
18.96mm x 10mm (Four Thirds)

Lens Mount
Active MFT mount.

Lens Control
Iris, focus and zoom on supported lenses.

Dynamic Range
13 Stops.

Dual Native ISO
400 and 3200

Shooting Resolutions
4096 x 2160 (4K DCI) up to 60 fps
4096 x 1720 (4K 2.4:1) up to 75 fps
3840 x 2160 (Ultra HD) up to 60 fps
2880 x 2160 (2.8K anamorphic) up to 80 fps
2688 x 1512 (2.6K 16:9) up to 120 fps
1920 x 1080 (HD) up to 120 fps

Frame Rates
Maximum sensor frame rate dependent on resolution and codec selected. Project frame rates of 23.98, 24, 25, 29.97, 30, 50, 59.94 and 60 fps supported.
Off-speed frame rates up to 60 fps in 4K DCI, 120 fps in 2.6K 16:9 and HD windowed.

Focus
Auto focus available using compatible lenses.

Iris Control
Iris wheel and touchscreen slider for manual iris adjustment on electronically controllable lenses, iris button for instant auto iris settings on compatible lenses.

Screen Dimensions
5” 1920 x 1080.

Screen Type
LCD capacitive touchscreen.

Metadata Support
Automatically populated lens data from electronic Micro Four Thirds lenses.
Automatic recording of camera settings and slate data such as project,
scene number, take and special notes.

Controls
Touchscreen menus on 5 inch screen. 1 x Power Switch,
1 x Record Button,
1 x Stills Button,
1 x Scroll Wheel with push integrated into handgrip,
1 x ISO Button,
1 x White Balance,
1 x Shutter Button,
3 x software configurable Fn buttons,
1 x IRIS Button,
1 x Focus Button,
1 x High Frame Rate (HFR) Button,
1 x Zoom Button,
1 x Menu Button and 1 x Playback Button.

Total Video Inputs

None.

Total Video Outputs

1 x HDMI up to 1080p60

Analog Audio Inputs

1 x mini XLR analog switchable between mic with phantom power support and line level (up to +14dBu). 1 x 3.5mm Stereo Input. Can also be used for Timecode input.

Analog Audio Outputs

1 x 3.5mm headphone jack.

Computer Interface

USB Type-C for external drive recording, PTP camera control and software updates.
