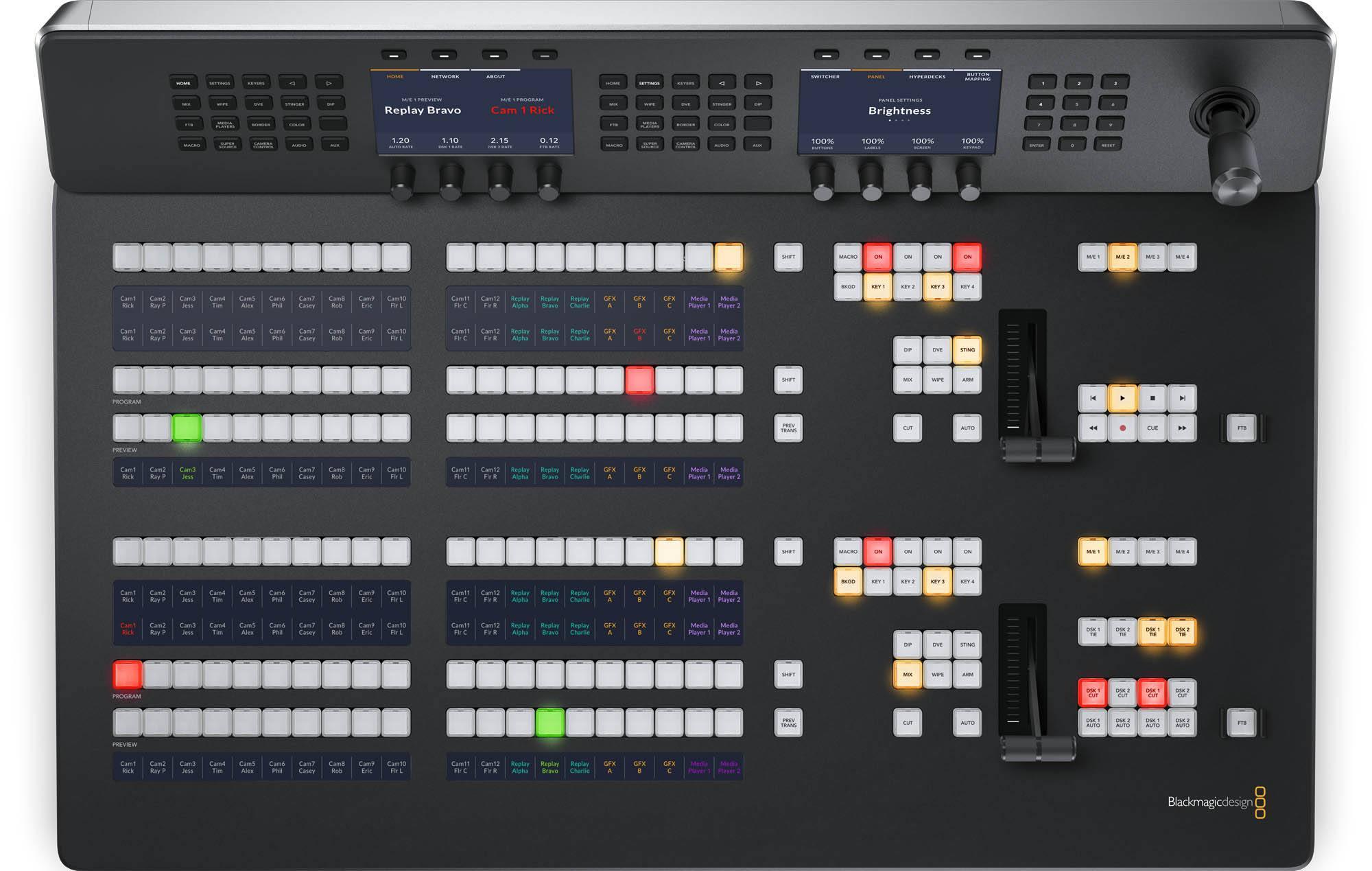

ATEM 2 M/E Advanced Panel 20

Save $380.00
No reviews

Price:
Sale price$9,795.00 Regular price$10,175.00
Description

    The 2 M/E model features 2 M/E rows with 20 input buttons and 2 independent system control LCDs for each row. Plus each row can control up to 4 M/Es in larger switchers. Both rows and all input buttons include LCDs for custom labeling. Each row also includes an independent select bus!
    Connections
    Ethernet

    4 x 10/100/1000 BASE-T with loop outputfor additional control panels or computers.

    Software Updates

    1 x USB-C for firmware updates.

    ATEM 2 M/E Advanced Panel 20
    Product Specifics
    Number of Mix Effects Rows

    2

    Direct Cross Points

    20

    Shifted Cross Points

    40

    Crosspoint Button Type

    Tri-Color LED

    Crosspoint Label

    6 rows 24 character LCD

    On-Air indicator

    8

    Power Status Indicators

    None

    DSK Transition Selectors

    4 x Auto, Cut, Tie/Preview

    Preview Transition

    2

    Transition Rate Displays

    Via main menu

    LCD Menu Displays

    2

    Menu Control

    2 x 20 buttons

    Dedicated Macro Buttons

    2 x 20

    Transport Control Buttons

    8

    Destination Bus

    2

    Source Select Bus

    2

    Fader Bar

    2

    3 Axis Joystick

    1

    Numeric Keypad

    1

    Software
    Software Applications

    ATEM Software Control Panel.

    Operating Systems

    Mac icon

    Mac 14.0 Sonoma,
    Mac 15.0 Sequoia or later.

    Windows Icon

    Windows 10 and 11.

    Power Requirements

    Input Voltage

    2 x Internal 100 - 240V AC.

    Redundant Power

    Yes

    Power Usage

    100W

    Physical Specifications
    ATEM 2 M/E Advanced Panel 20
    Environmental Specifications
    Operating Temperature

    0° to 40° C (32° to 104° F)

    Storage Temperature

    -20° to 60° C (-4° to 140° F)

    Relative Humidity

    Up to 95%

    What's Included

    ATEM 2 M/E Advanced Panel 20

    Warranty

    1 Year Limited Manufacturer’s Warranty.



    Shipping details

    Our couriers will try to get your order delivered the day after your order is placed with us. The cut-off time for next day delivery is one pm on that day.

    It is the customer's responsibility to ensure someone is available to sign for receipt of the goods at the delivery address provided. If our courier is unable to deliver for any reason, you may be invoiced for the attempted/failed delivery backcharge. Please double check your address is correct. Thank you.
