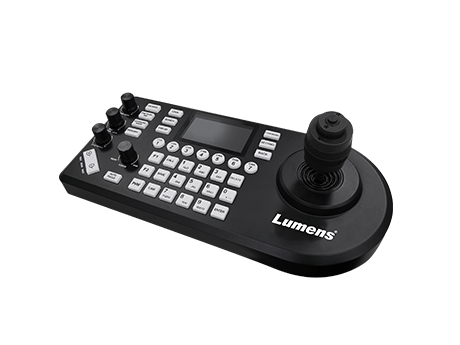

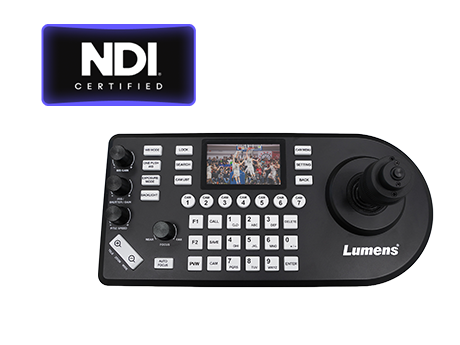

Lumens VS-KB21N

Save $17.47
No reviews

Price:
Sale price$2,795.00 Regular price$2,812.47
Description

IP Camera Controller
with NDI

Controls up-to total of 255 IP-connected or NDI-connected cameras

  • Quick access control of exposure, white balance, focus, PTZ speed and 2 user-assignable keys
  • Supports RTSP and NDI HX Stream Preview on LCD screen
  • Supports RS-232, RS-422, and Ethernet control
  • Supports VISCA, VISCA Over IP and NDI control protocols
NDI Workflows
VS-KB21N identifies NDI cameras on the IP network and allows monitoring and full device control. The controller also supports the VISCA protocol making it a supremely versatile unit.
3" LCD Preview Screen
The low latency preview screen monitors up-to 255 IP streams simultaneously. For precise framing, the operator can switch to a single stream layout enabling full screen video preview
Quick Camera Select
With 7 hot keys, the operator can instantly select the PTZ or box camera they want to control. This makes it easier than ever to manage a multi-camera production.
Quick Settings
The LCD screen displays all key camera parameters including iris, shutter and gain. This allows quick and accurate set-up of each camera.
5 year warranty
Lumens offers a 5-year warranty with all its products as standard.

*The warranty policy may be different depending on the sales region, please contact your local salesperson.



Support

More Details

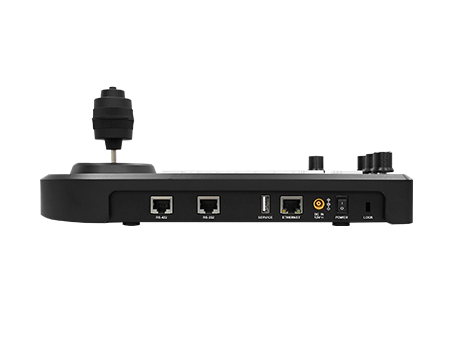

Comm. Interface
RS-232 / RS-422 / IP
Display
3" LCD
Joystick
4-axis (Pan / Tilt / Zoom)
Speed Control
x1 (1 Knob)
Zoom Control
x1 (Zoom Seesaw Lever)
Gain Control
R/B Gain
Focus Control
Auto / Manual
Assign Button
x2
Keypad with backlight
Yes
Stream Preview
RTSP / NDI HX2 / NDI HX3
Control Protocol
NDI / VISCA / VISCA Over IP
Baud Rate
2400 / 4800 / 9600 / 38400 / 115200 bps
Camera Address
1~255
Preset
255
Power
DC12V / PoE
Power Consumption
PoE : 5W
DC In : 5W
Dimension(WxHxD)
11.89″ x 5.63″ x 4.41″
(302 mm x 143mm x 112mm)
Weight
2.8 lbs (1.3 kg)

Optional Accessories

VC-AC07

VC-AC07

CAB-RS232-01

CAB-RS232-01
