Description

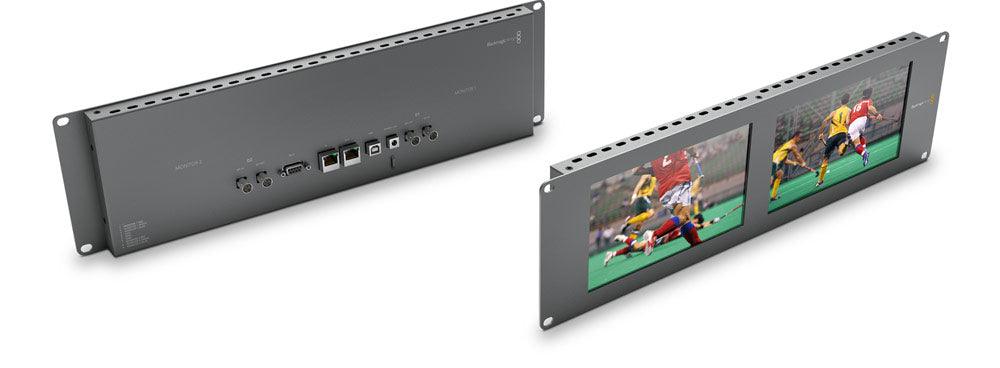

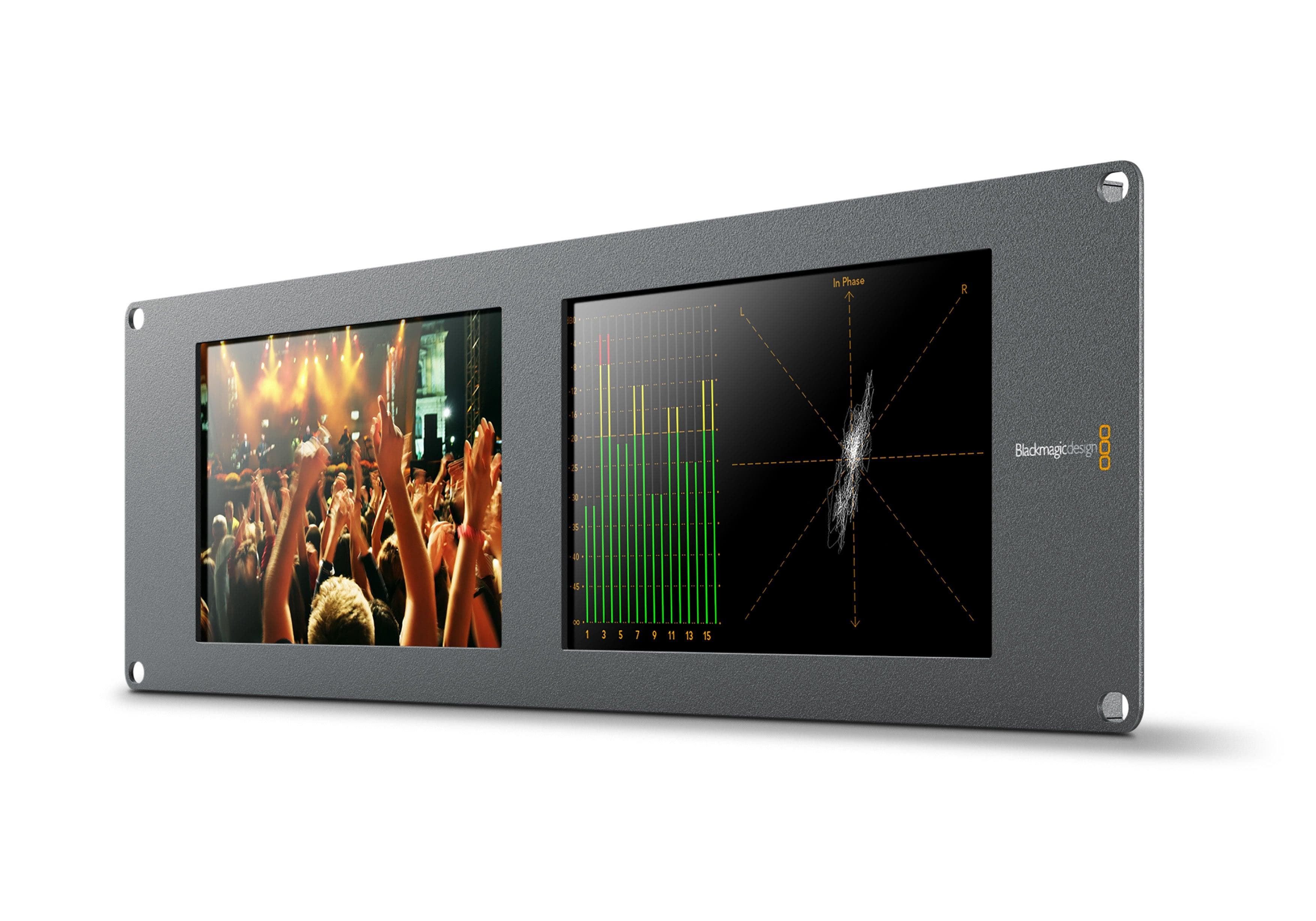

SmartScope Duo 4K looks like a SmartView Duo but adds independent waveform monitoring so you can select between waveform, vectorscope, RGB parade, YUV parade, histogram and audio phase level displays. Each monitor is independent so can display any combination of scope or picture view!

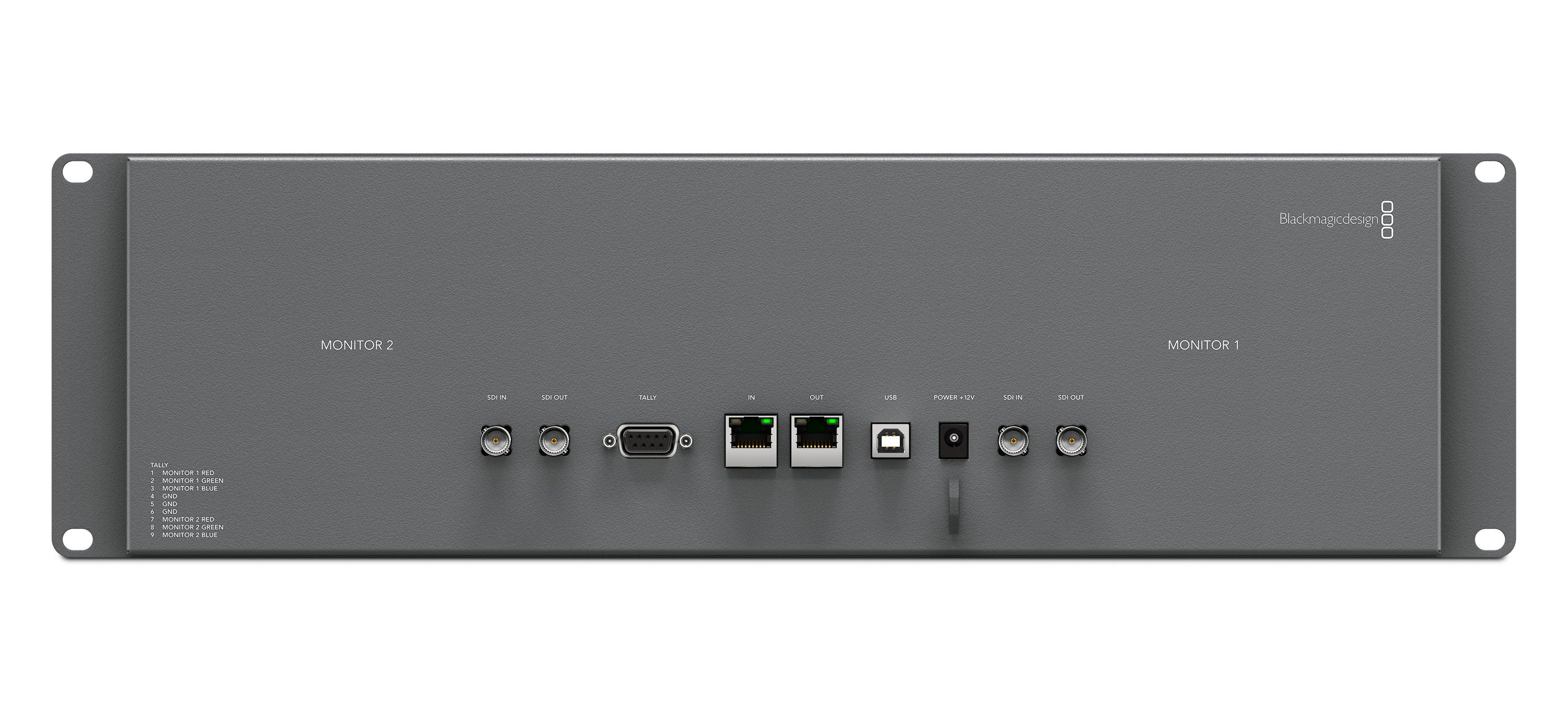

Connections
Automatically switches between SD, HD and 6G-SDI. Reclocked loop through output.
1 x 10 bit loop through SD, HD and
6G-SDI switchable.
16 channels embedded in SD, HD and UHD.
16 channels embedded in SD, HD and UHD.
Standard definition SDI, high definition SDI and 6G-SDI.
9-pin D connector
Standards
525i29.97 NTSC, 625i50 PAL
720p50, 59.94, 60
1080p23.98, 24, 25, 29.97, 30, 50, 59.94, 60
1080PsF23.98, 24, 25, 29.97, 30
1080i50, 59.94, 60
2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p
2K DCI 23.98PsF, 2K DCI 24PsF, 2K DCI 25PsF
2160p23.98, 24, 25, 29.97, 30
SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M Level B and SMPTE 425M.
Television sample rate of 48KHz
4:2:2 and 4:4:4
8-bit
YUV and RGB
USB 2.0 for software updates and Ethernet for configuration
Hardware based real time.
Scopes
Luminance Waveform, Vectorscope, RGB Parade, YUV Parade, Histogram, Audio phase and level.
Software
Configuration utility for MAC and Windows.
Via included firmware updater software.

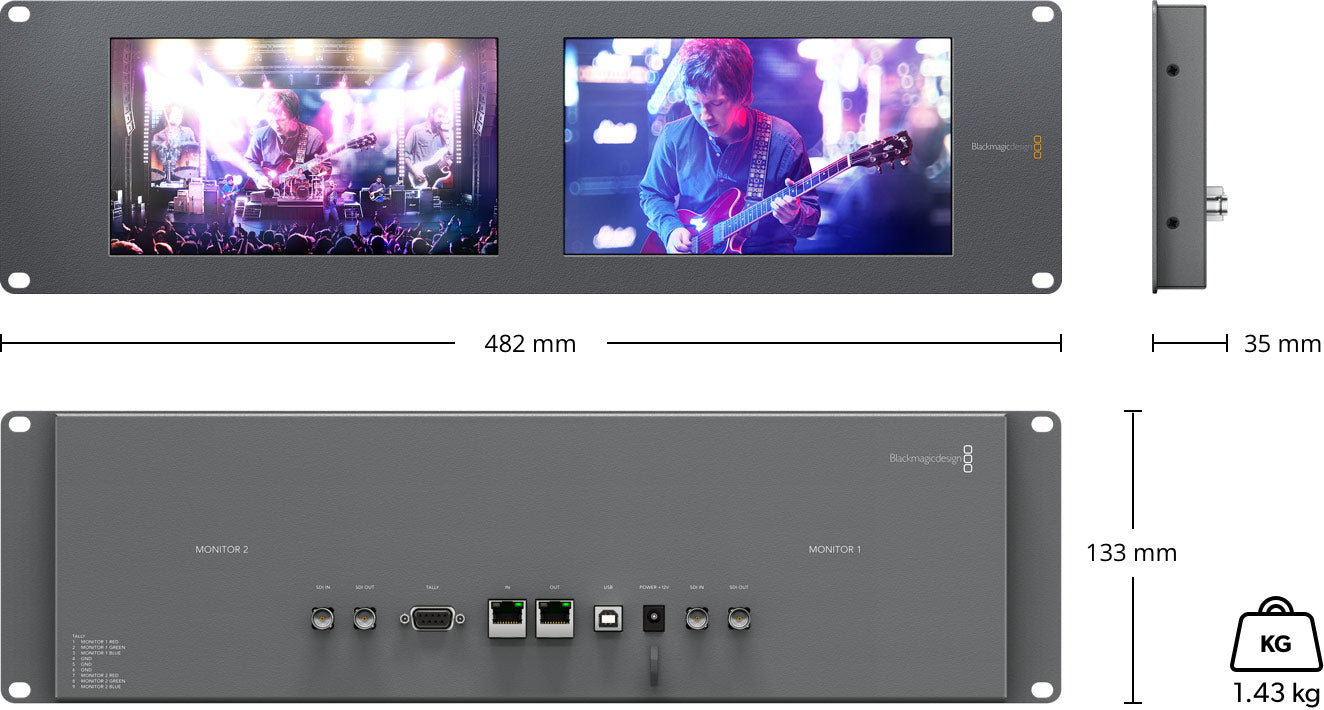

3RU
