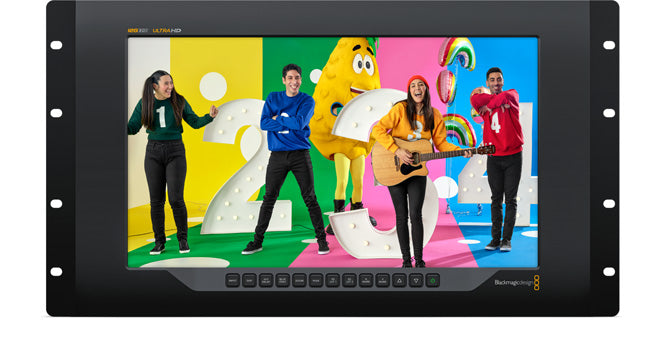

SmartView 4K G3 is the first Ultra HD broadcast monitor with both 12G-SDI and SMPTE-2110 IP video inputs. SmartView 4K G3 connects directly to IP based broadcast systems as well as a range of 12G-SDI professional video equipment up to 2160p60, making it perfect for broadcast and live production. It includes AC and 12V DC power connections, 3D LUTs and monitoring controls such as focus peaking, H/V delay, blue only and framing guides.

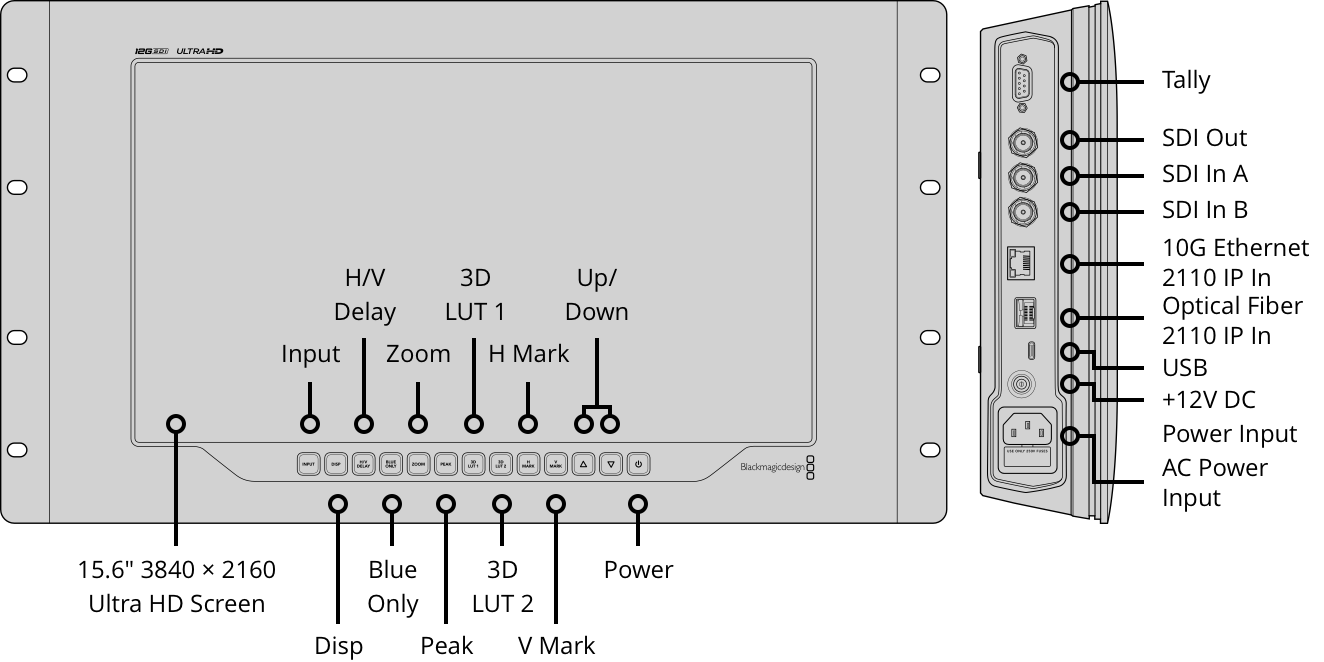

Connections
1 loop out.
Reclocked video output that automatically switches to input selection.
270Mb, 1.5G, 3G, 6G, 12G.
SFP Optical Fiber connector cage.
Supports 2110 IP video and optical SDI.
Auto detection of 4K, Ultra HD, 2K, HD or SD inputs.
USB
1 x 10Gb/s RJ‑45 connector supporting 10/100/1000/10G BASE-T for SMPTE-2110 IP video in, configuration and firmware updates.
9-pin D connector
Standards
525i59.94 NTSC, 625i50 PAL
720p50, 720p59.94, 720p60
1080i50, 1080i59.94, 1080i60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60
1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI, 2Kp47.95 DCI, 2Kp48 DCI, 2Kp50 DCI, 2Kp59.94 DCI, 2Kp60 DCI
2KPsF23.98, 2KPsF24, 2KPsF25, 2KPsF29.97, 2KPsF30
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60
4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp47.95 DCI, 4Kp48 DCI, 4Kp50 DCI, 4Kp59.94 DCI, 4Kp60 DCI
SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M Level A and B, SMPTE 425M, SMPTE 2082.
REC 601, REC 709
Automatically selects between SD, HD, 3G, 6G and 12G-SDI.
4:2:2 and 4:4:4
IP Video Compliance
IGMP v2
Sender: Narrow
Receiver: Narrow, Wide Synchronous, Asynchronous
Audio Conformance level: Level C
Full access to entire SMPTE ancillary data stream. Includes RP 188/SMPTE 12M-2, closed captioning and HDR static metadata.
IEEE 1588‑2008 (PTP v2)
ST 2059‑1
ST 2059‑2
v1.3.2
Peer‑to‑peer via mDNS/DNS‑SD
v1.1.2
Natural Grouping
Receiver capabilities
Blackmagic IP10 codec used when converting 12G-SDI rates to 10G 2110 IP video.
Software
Via included firmware updater software.
Via USB or Ethernet.
