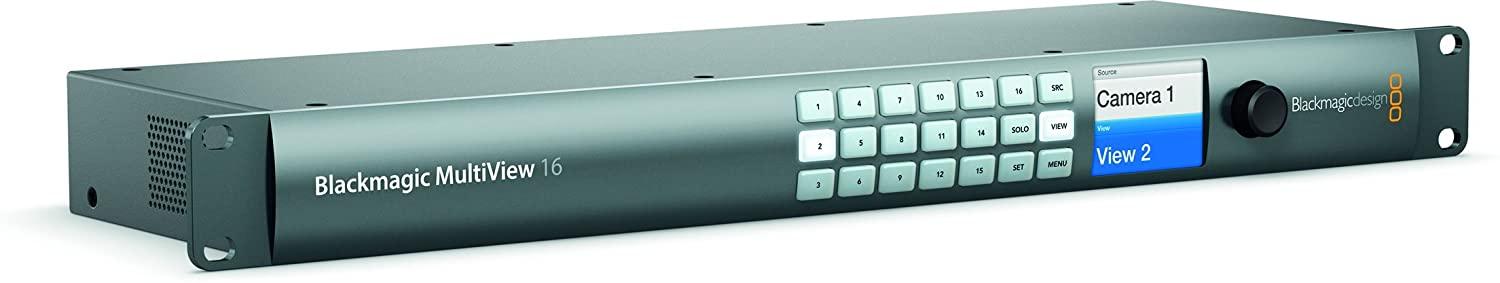

Monitor up to 16 SDI sources using an Ultra HD monitor or television so you get twice the resolution per view! Monitor from SD, HD or Ultra HD-SDI sources in any combination, in any order! Features full frame re-sync on each input.

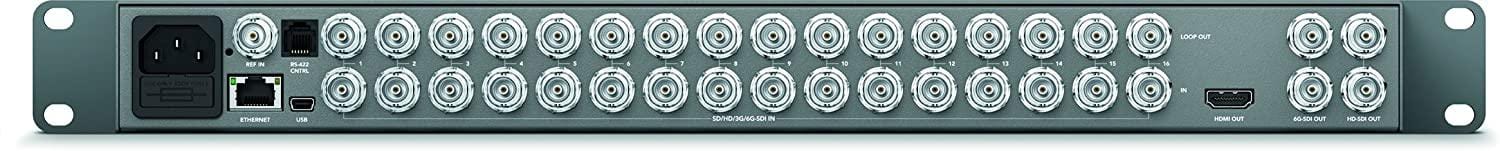

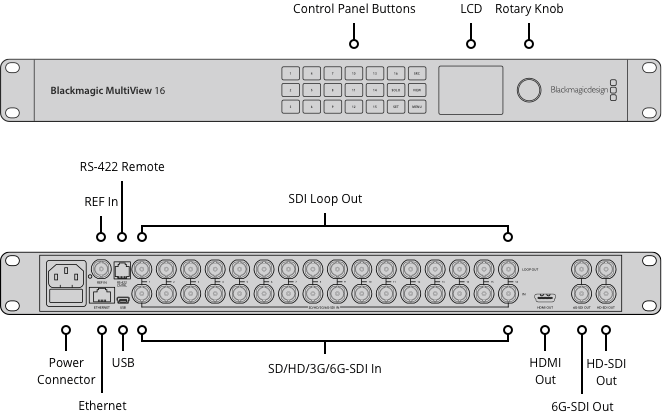

Connections
16 x 10-bit SD-SDI, HD-SDI and 6G‑SDI.
16 x 10-bit SD-SDI, HD-SDI and 6G‑SDI.
270Mb, 1.5G, 3G, 6G.
2 x 10-bit HD-SDI, 2 x 10 bit 6G‑SDI.
1 x HDMI type A connector. Output supports EDID of the monitor.
On all SDI outputs, auto switching between standard definition, high definition or 6G‑SDI video.
Black Burst and Tri-Sync for SD, HD and 4K.
Auto detection of SD, HD or 6G‑SDI. Simultaneous viewing of 4K, HD and SD video.
USB 2.0 high speed (480Mb/s) interface or via Ethernet.
Via front panel LCD or use either RJ45 Ethernet or USB 2.0 for firmware updates and IP address setting.
Standards
525i59.94 NTSC, 625i50 PAL
720p50, 720p59.94, 720p60
1080i50, 1080i59.94, 1080i60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2KPsF23.98 DCI, 2KPsF24 DCI, 2KPsF25 DCI
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30
4Kp24 DCI
1080i50, 1080i59.94
1080p25, 1080p29.97
2160p25, 2160p29.97
SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 425M-B, ITU‑R BT.656 and ITU‑R BT.601.
Each view, VU standard.
Yes
4:2:2
Television standard sample rate of 48kHz and 24-bit.
10-bit 4:2:2
YUV
Automatically selects between SD-SDI, HD-SDI, and 6G‑SDI on each input so that each input can be running a different television standard.
Video payload identification ancillary data as per SMPTE 352M.
Control

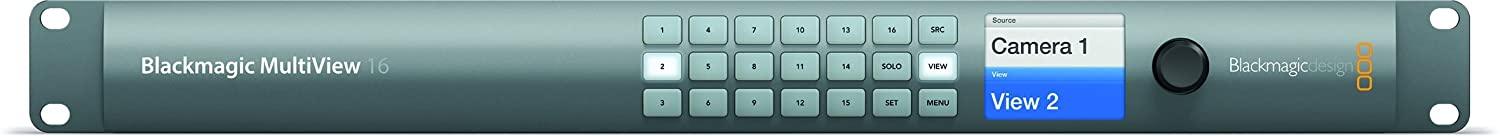

16 buttons for local control of source routing with 5 buttons and scroll wheel for menu control. 2.2 inch color display.
Includes Blackmagic Videohub software control panel for Mac OS and Windows for routing sources to views. Supports Blackmagic Smart Control and Blackmagic Master Control hardware panels. Includes Blackmagic Videohub SDK and Ethernet Videohub Control Protocol.
RJ9 for external control.
Display
Built in 1.5 inch LCD for menu settings.
Software
MultiView software included free for Windows™ and Mac™
Via included updater application.
