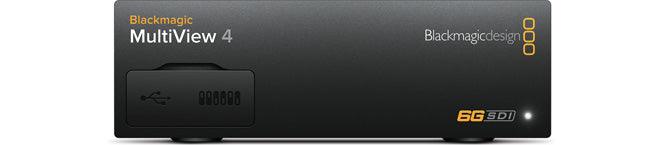

Blackmagic MultiView 4 is a multi viewer that lets you monitor 4 completely independent SDI video sources on a single display! Featuring 4 6G-SDI inputs with full re-synchronization, MultiView 4 lets you monitor any combination of SD, HD and Ultra HD video formats and frame rates all at the same time. Blackmagic MultiView 4 can output to both 1080 HD and 2160p Ultra HD displays so you connect it to either regular HD or Ultra HD televisions. If you connect an Ultra HD television or monitor, you can take advantage of the extra resolution of Ultra HD and see full resolution 1920 x 1080 HD in each view for incredible sharpness! You can even turn on audio meter overlays, custom labels and more in each view!
Connections
4 x 10-bit SD-SDI, HD-SDI and 6G‑SDI.
4 loop, 1 HD/Ultra HD.
270Mb, 1.5G, 3G, 6G.
1 x 10-bit HD-SDI and 10 bit 6G‑SDI
1 x HDMI type A connector. Output supports EDID of the monitor.
On all SDI outputs, auto switching between standard definition, high definition or 6G‑SDI video.
None
Auto detection of SD, HD or 6G‑SDI. Simultaneous viewing of 4K, HD and SD video.
USB 2.0 high speed (480Mb/s) interface or via Ethernet.
RJ45 Ethernet or USB 2.0 for firmware updates and IP address setting.
Standards
525i59.94 NTSC, 625i50 PAL
720p50, 720p59.94, 720p60
1080i50, 1080i59.94, 1080i60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2KPsF23.98 DCI, 2KPsF24 DCI, 2KPsF25 DCI
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30
4Kp24 DCI
1080i50, 1080i59.94
2160p25, 2160p29.97
SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 425M, SMPTE 425M-B, ITU‑R BT.656 and ITU‑R BT.601.
Each view, VU standard.
None
4:2:2
Television standard sample rate of 48kHz and 24‑bit.
10-bit 4:2:2
YUV
Automatically selects between SD‑SDI, HD‑SDI, and 6G‑SDI on each input so that each input can be running a different television standard.
Video payload identification ancillary data as per SMPTE 352M.
Control
None. Supports Teranex Mini Smart Panel which adds menus and 2.2 inch color display.
None
Display
Optional Teranex Mini Smart Panel with 2.2 inch LCD for menu settings.
Software
MultiView software included free for Windows™ and Mac™.
Via included updater application.
