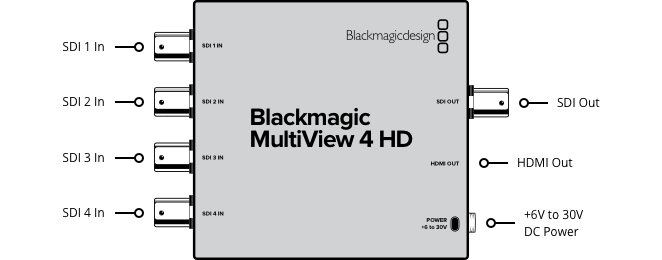

SDI Video Inputs
4 x 10-bit SD-SDI and HD-SDI.

SDI Video Outputs
1 x HD-SDI.

SDI Rates
270Mb, 1.5G, 3G.

SDI Video Multi View Outputs
1 x 10-bit HD-SDI.

HDMI Video Multi View Outputs
1 x HDMI type A connector. Output supports EDID of the monitor.

SDI Reclocking
On all SDI outputs, auto switching between standard definition or high definition.

Reference Input
None

Multi Rate Support
Auto detection of SD or HD.

Updates
USB 2.0 high speed (480Mb/s) interface.

Configuration
USB 2.0

SD Video Standards
525i59.94 NTSC, 625i50 PAL

HD Video Standards
720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080PsF23.98, 1080PsF24, 1080i50, 1080i59.94, 1080i60

2K Video Standards
2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p

SDI Compliance
SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 425M-B, ITU‑R BT.656 and ITU‑R BT.601.

Audio Meters
Each view, VU standard.

Source Routing
None

SDI Video Sampling
4:2:2

SDI Audio Sampling
Television standard sample rate of 48kHz and 24-bit.

SDI Color Precision
10-bit 4:2:2

SDI Color Space
YUV

SDI Auto Switching
Automatically selects between SD-SDI and HD-SDI on each input so that each input can be running a different television standard.

SDI Metadata Support
Video payload identification ancillary data as per SMPTE 352M.

Built in Control Panel
None

External Control Panel
None

Software Control
MultiView software included free for Windows™ and Mac™.

Internal Software Upgrade
Via included updater application.

Power Supply
+12V universal power supply included with international socket adapters for all countries. Cable tie point.

Power Fail Protection
MultiView 4 HD settings preserved and restored instantly at power on.

Power Consumption
5.5 Watts

Operational Voltage Range
6 to 36V DC

Operating temperature
0° to 40° C (32° to 104° F)

Storage temperature
-20° to 45° C (-4° to 113° F)

Relative Humidity
0% to 90% non-condensing

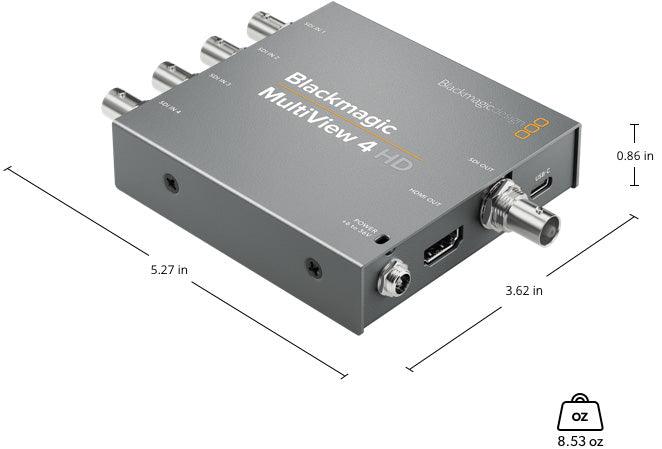

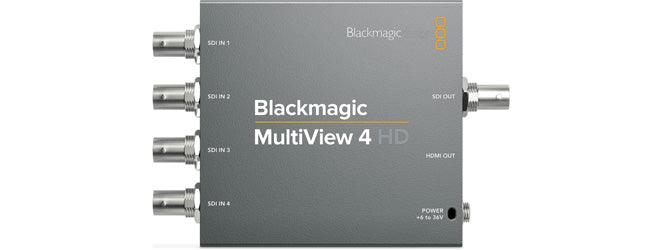

Blackmagic MultiView 4 HD
+12V universal power supply with international socket adapters
