- Description
- Connections
- Power Requirements
- Physical Specifications
- Environmental Specifications
- What's Included
- Warranty

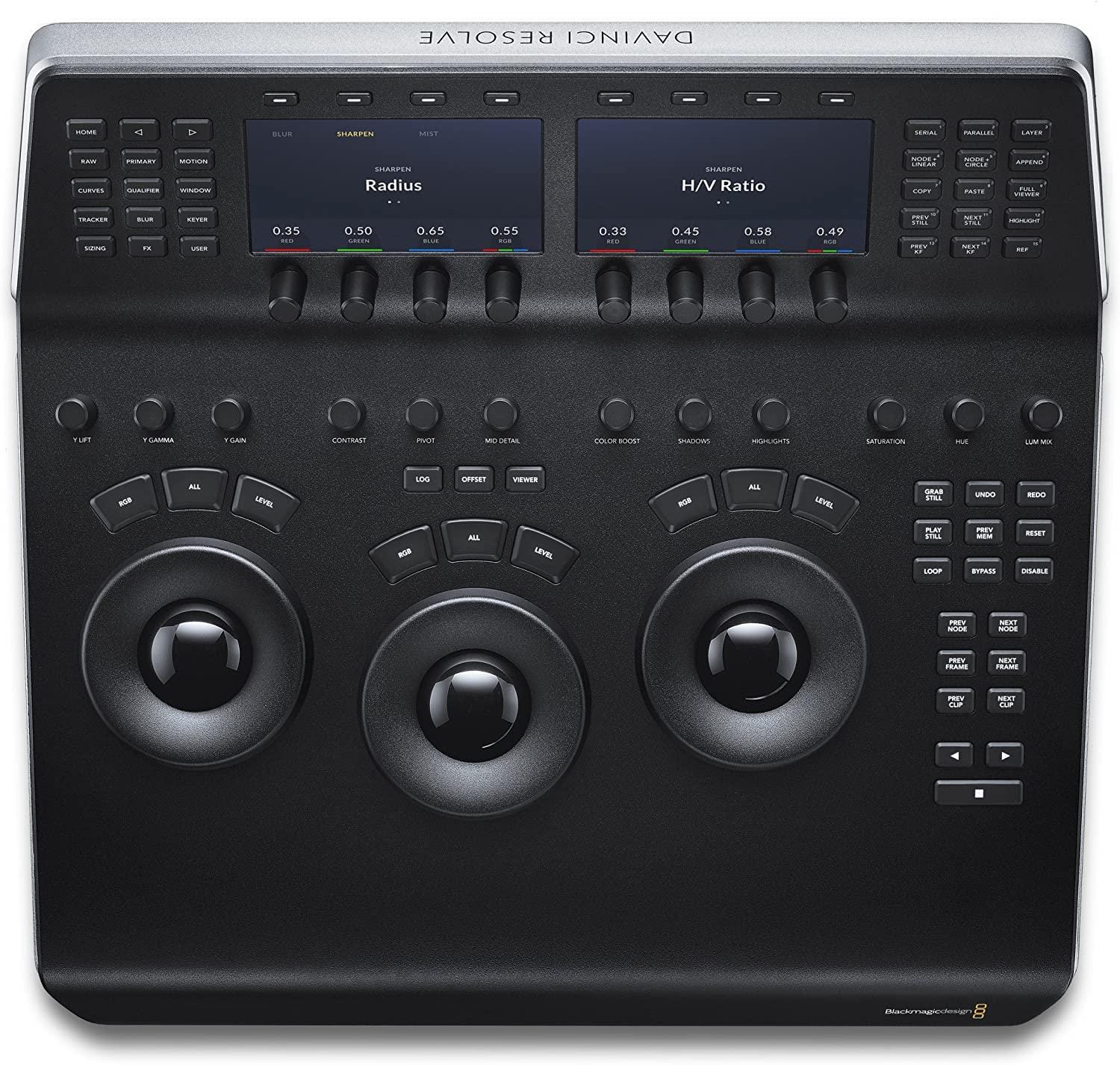

A compact professional hardware control panel featuring 3 high resolution weighted trackballs, 12 control knobs for essential tools and an upper deck with two 5” screens, DaVinci Resolve Mini Panel has 8 soft knobs and 8 soft buttons, and dedicated keys for switching tools, working with nodes, grabbing stills, navigating the timeline and more!

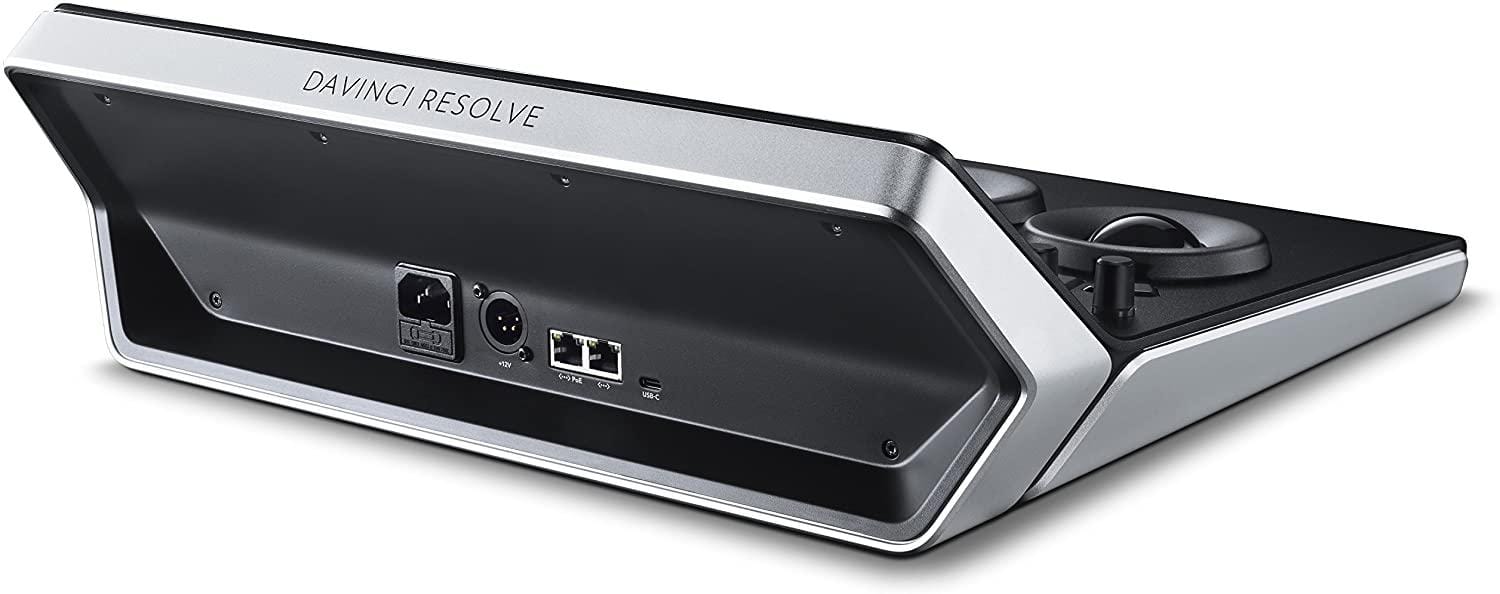

Computer Interface
USB Type‑C.
Ethernet
1 x Ethernet connection supporting 10/100/1000 BaseT with PoE.
1 x Ethernet connection supporting 10/100/1000 BaseT.
Power
1 x IEC C14 mains input.
1 x +12V DC 4‑pin XLR.
1 x Ethernet with PoE.
USB Type‑C.
Ethernet
1 x Ethernet connection supporting 10/100/1000 BaseT with PoE.
1 x Ethernet connection supporting 10/100/1000 BaseT.
Power
1 x IEC C14 mains input.
1 x +12V DC 4‑pin XLR.
1 x Ethernet with PoE.
Power Supply
Internal 100 - 240V AC 1.5A 50/60Hz with IEC C14 mains input.
Power Usage
17W max.
Internal 100 - 240V AC 1.5A 50/60Hz with IEC C14 mains input.
Power Usage
17W max.
Operating Temperature
0° to 40°C (32° to 104°F)
Storage Temperature
-20° to 60°C (-4° to 140°F)
Relative Humidity
0% to 90% non-condensing
0° to 40°C (32° to 104°F)
Storage Temperature
-20° to 60°C (-4° to 140°F)
Relative Humidity
0% to 90% non-condensing
DaVinci Resolve Mini Panel
DaVinci Resolve Studio activation key
DaVinci Resolve Studio activation key
1 Year Limited Manufacturer's Warranty.
