Analog Video Outputs
6 x common Blackburst or Tri Level reference outputs.
CONTACT US
WE WANT TO HEAR FROM YOU
Please feel free to Email: mediatitanstech@gmail.com or Phone: (03) 9021 2521 or send us a message here. Please allow one business day to respond.
INQUIRIES
- Description
- Connections
- Standards
- Software
- Power Requirements
- Physical Specifications
- Environmental Specifications
- What's Included
- Warranty
- Shipping details
- Reviews
Description
Includes 6 crystal stabilized video reference outputs for referencing all the video equipment in your studio in either high definition Tri‑Sync or standard definition Blackburst television standards. Perfect for small studios and outside broadcasts!
Connections
SDI Rates
270Mb, 1.5G.
Multi Rate Support
Via mini switches
Updates and Configuration
USB
Standards
Analog Format Support
525i29.97 NTSC, 625i50 PAL, 720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080PsF23.98, 1080PsF24, 1080i50, 1080i59.94, 1080i60
Software
Software Control
Mac™ and Windows™ software upgrade via USB.
Internal Software Upgrade
Via included updater application.
Operating Systems
Mac 10.15 Catalina,
Mac 11.1 Big Sur or later.
Windows 10, 64-bit.
Settings Control
Mini Switches or USB software.
Power Requirements
Power Supply
+12V universal power supply included with international socket adapters for most countries. Cable tie point.
Power Consumption
3.00 Watts
Operational Voltage Range
12V DC
Physical Specifications
Environmental Specifications
Operating temperature
0° to 40° C (32° to 104° F)
Storage temperature
-20° to 45° C (-4° to 113° F)
Relative Humidity
0% to 90% non‑condensing
What's Included

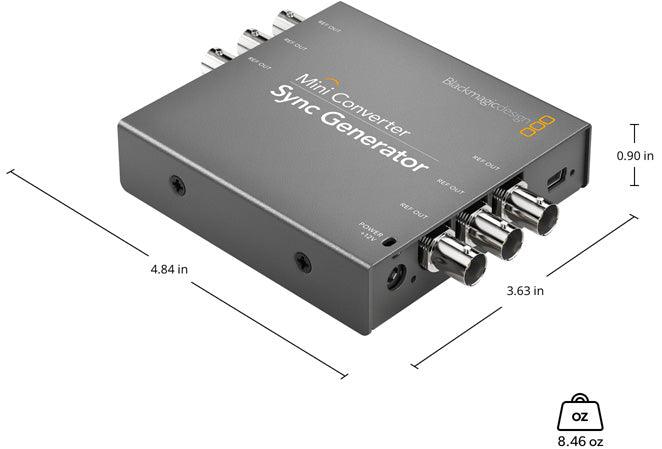

Mini Converter Sync Generator
12V universal power supply with international socket adapters
Warranty
3 Year Limited Manufacturer’s Warranty.
