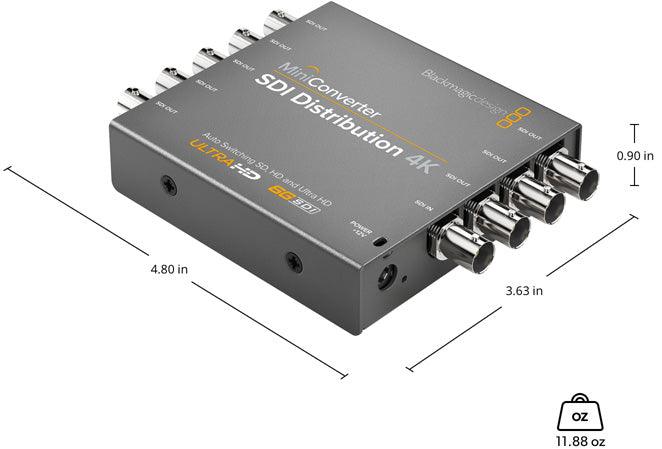

When you need to connect to multiple SDI devices, then Mini Converter SDI Distribution 4K is the perfect solution! Connect a single SDI source to 8 re‑clocked SDI outputs with automatic switching between all SD‑SDI, HD‑SDI, 3G‑SDI and 6G‑SDI video formats, plus all ASI, ancillary and embedded audio formats.
Connections
Switchable between SD, HD and 6G‑SDI.
Yes
8 outputs automatically match the SDI video input.
Auto detection of SD, HD or 6G‑SDI.
Standards
525i59.94 NTSC, 625i50 PAL
720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080p23.98, 1080PsF23.98, 1080p24, 1080PsF24, 1080p25, 1080PsF25, 1080p29.97, 1080PsF29.97, 1080p30, 1080PsF30, 1080p50, 1080p59.94, 1080p60
2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p, 2K DCI 23.98PsF, 2K DCI 24PsF, 2K DCI 25PsF
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30
4K DCI 23.98p, 4K DCI 24p, 4K DCI 25p
SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE ST‑2081, ITU‑R BT.656 and ITU‑R BT.601
SDI video inputs are automatically detected between standard definition and high definition.
4:2:2 and 4:4:4
Television standard sample rate of 48 kHz and 24 bit.
4:2:2 and 4:4:4
YUV and RGB
Automatically detects SD, HD or 6G‑SDI.
Yes
Power Requirements
+12V universal power supply included with international socket adapters for most countries. Cable tie point.
4.80 Watts
12 ‑ 31V DC
Operating Systems
Mac 10.15 Catalina,
Mac 11.1 Big Sur or later.
Windows 10, 64-bit.
Physical Specifications
Environmental Specifications
0° to 40° C (32° to 104° F)
-20° to 45° C (-4° to 113° F)
0% to 90% non-condensing
What's Included
Mini Converter SDI Distribution 4K
12V universal power supply with international socket adapters
Warranty
3 Year Limited Manufacturer’s Warranty.
