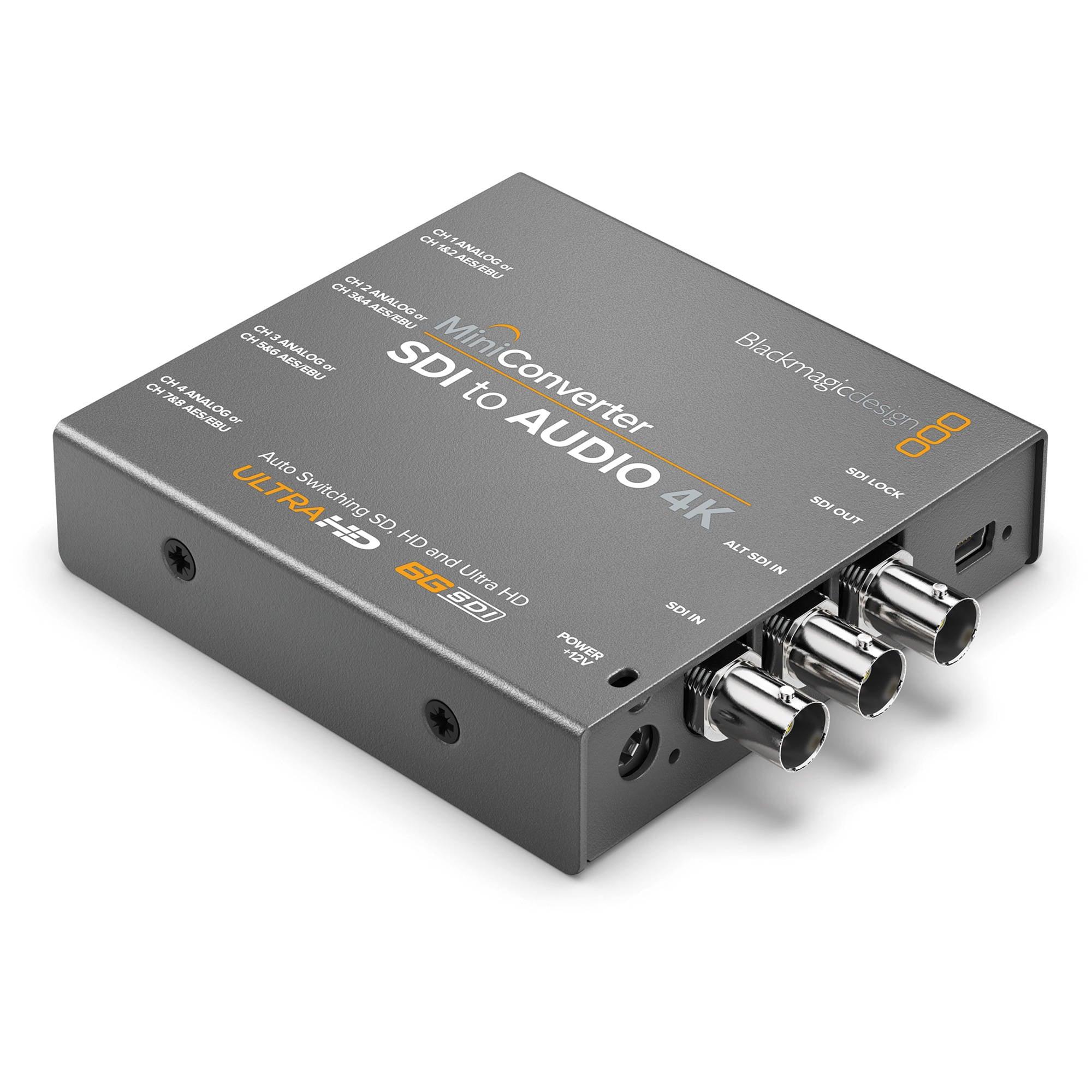

Mini Converter SDI to Audio 4K includes everything you need to de‑embed 4 channels of analog audio or 8 channels of AES/EBU digital audio from any SDI video connection. Now you can access the audio in any SDI video connection for output to a massive range of audio equipment such as audio mixers, analog broadcast decks, audio monitors and more!

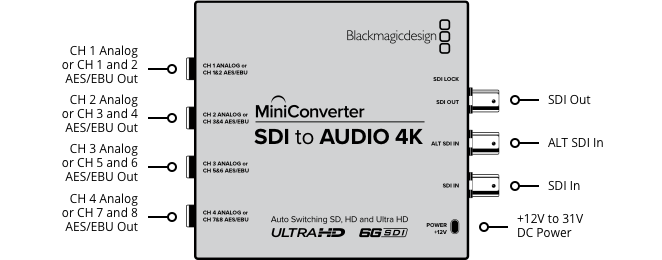

Connections
1 x SD, HD or 6G‑SDI. 1 x ALT SDI Input for automatic switch over if main input fails.
1 x SDI Video Loop Output.
Automatically switches over if main SDI input is lost.
4 channels of professional balanced analog audio with standard 1/4 inch jack connections.
8 channels of professional balanced digital with standard 1/4 inch jack connections.
Auto detection SD, HD or 6G‑SDI.
USB
Yes
Standards
525i59.94 NTSC, 625i50 PAL
720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30, 1080i50, 1080i59.94, 1080i60
2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p, 2K DCI 23.98PsF, 2K DCI 24PsF, 2K DCI 25PsF
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30
4K DCI 23.98p, 4K DCI 24p, 4K DCI 25p
SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE ST‑2081, ITU‑R BT.656 and ITU‑R BT.601
SDI video inputs are automatically detected between standard definition and high definition.
4:2:2, 4:4:4
Television standard sample rate of 48 kHz and 24 bit.
4:2:2, 4:4:4
YUV, RGB
Automatically selects between SD, HD, 3G and 6G‑SDI.
Software
Mac™ and Windows™ software upgrade via USB.
Via included updater application.
Operating Systems
Mac 10.15 Catalina,
Mac 11.1 Big Sur or later.
Windows 10, 64-bit.
Settings Control
Mini Switches or USB software.
Power Requirements
+12V universal power supply included with international socket adapters for most countries. Cable tie point.
5.52 Watts
12V ‑ 31V DC

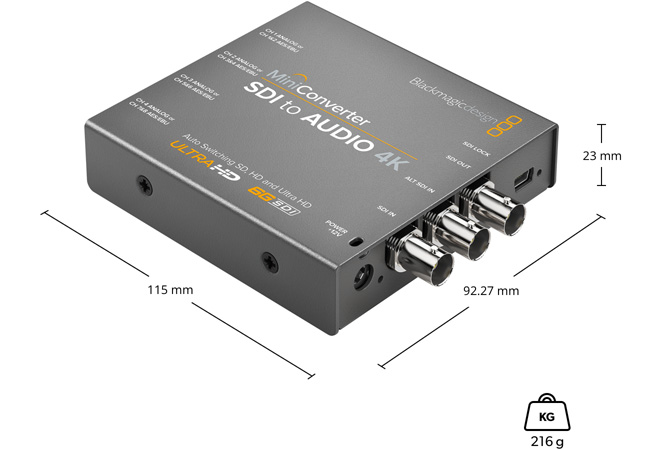

Physical Specifications
Environmental Specifications
0° to 40° C (32° to 104° F)
-20° to 45° C (-4° to 113° F)
0% to 90% non-condensing
What's Included
Mini Converter SDI to Audio 4K
12V universal power supply with international socket adapters
Warranty
3 Year Limited Manufacturer’s Warranty.
