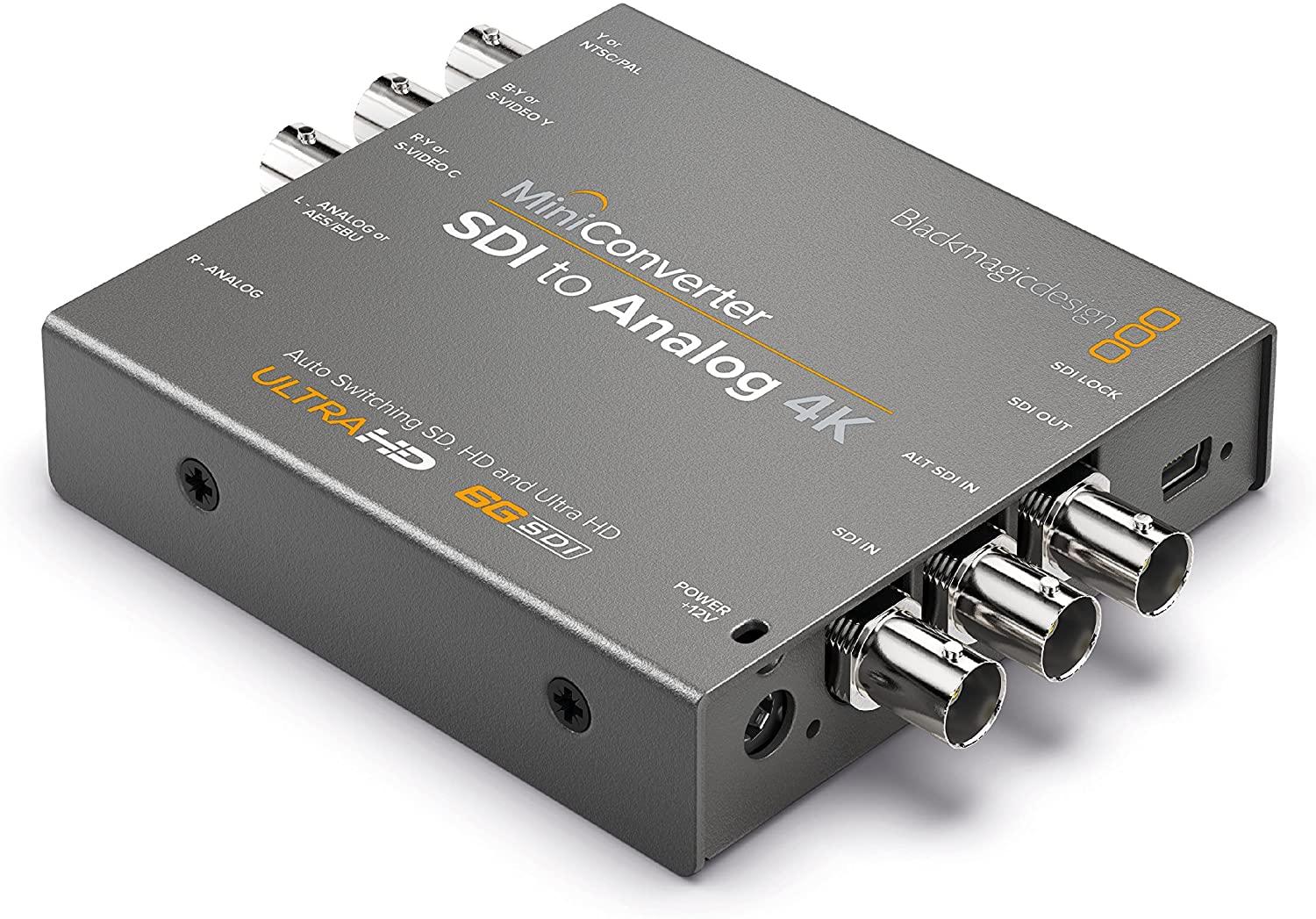

Mini Converter SDI to Analog 4K includes everything you need to convert from SD, HD, 3G and 6G‑SDI video to analog in HD/SD component, NTSC and PAL video. The built in down converter means you can even connect Ultra HD sources to component video in SD or HD as well as NTSC and PAL video! Easily connect any analog equipment such as Betacam SP, VHS, and video monitors!

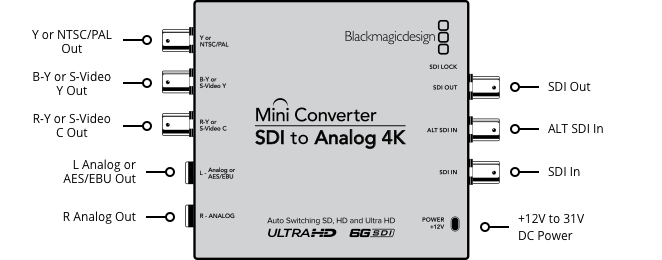

Connections
1 x SD, HD or 6G‑SDI. 1 x ALT SDI Input for automatic switch over if main input fails.
1 x SDI Video Loop Output.
NTSC, PAL, S‑Video and component SD/HD from 6G‑SDI input.
2 channels of professional balanced analog audio with standard 1/4 inch jack connections.
2 channels of professional balanced digital with standard 1/4 inch jack connections.
Automatically switches over if main SDI input is lost.
Auto detection of SD, HD or 6G‑SDI.
USB
Yes
Standards
525i59.94 NTSC, 625i50 PAL
720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30, 1080i50, 1080i59.94, 1080i60
2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p, 2K DCI 23.98PsF, 2K DCI 24PsF, 2K DCI 25PsF
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30
4K DCI 23.98p, 4K DCI 24p, 4K DCI 25p
SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE ST‑2081, ITU‑R BT.656 and ITU‑R BT.601
SDI video inputs are automatically detected between standard definition and high definition.
4:2:2
Television standard sample rate of 48 kHz and 24 bit.
4:2:2
YUV
Automatically detects SD and HD.
525i59.94 NTSC, 625i50 PAL, 720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080i50, 1080i59.94, 1080i60
YUV
4:2:2
Format Conversion
HD down conversion
Software
Mac™ and Windows™ software upgrade via USB.
Via included updater application.
Operating Systems
Mac 10.15 Catalina,
Mac 11.1 Big Sur or later.
Windows 10, 64-bit.
Settings Control
Mini Switches or USB software.
Power Requirements
+12V universal power supply included with international socket adapters for most countries. Cable tie point.
8.04 Watts
12 ‑ 31V DC

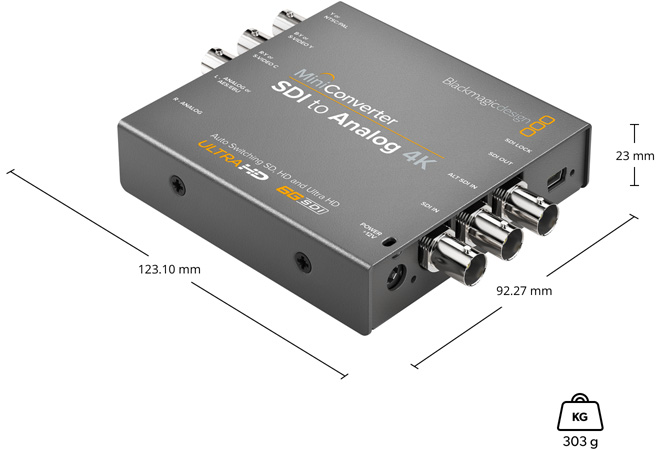

Physical Specifications
Environmental Specifications
0° to 40° C (32° to 104° F)
-20° to 45° C (-4° to 113° F)
0% to 90% non‑condensing
What's Included
Mini Converter SDI to Analog 4K
Software CD
12V universal power supply with international socket adapters
Warranty
3 Year Limited Manufacturer’s Warranty.
