This model has been specifically designed for professional monitoring. It includes a 17 point 3D LUT for color calibrating any monitor, projector or television. You can even output the 3D LUT on the SDI loop output! Plus it supports DCI formats and film rates including 1080p24, 1080p47.95 and 1080p48. Includes 100 to 240V AC power supply with international socket adapters.
Connections
1 x SD, HD or 3G-SDI.
1 x SDI loop out.
HDMI Type A out.
Auto detection of SD or HD.
USB Type‑C.
Standards
525i59.94 NTSC, 625i50 PAL
720p50, 720p59.94, 720p60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60
1080PsF25, 1080PsF29.97, 1080PsF30
1080i50, 1080i59.94, 1080i60
2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI, 2Kp47.95 DCI, 2Kp48 DCI, 2Kp50 DCI, 2Kp59.94 DCI, 2Kp60 DCI
2KPsF25 DCI, 2KPsF29.97 DCI, 2KPsF30 DCI
SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M
SDI video connections are switchable between standard definition, 720p, 1080i, 1080p and DCI high definition.
4:2:2
YUV
Automatically detects SD, HD and level A or B for 3G‑SDI.
525i29.97 NTSC, 625i50 PAL
720p50, 720p59.94, 720p60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60
1080i50, 1080i59.94, 1080i60
4:2:2. A 17 point LUT can be loaded via the software utility for calibrating or improving monitor color.
YUV
Settings Control
Via MacOS™ and Windows™ software utility connected by USB.
Operating Systems
Mac 10.15 Catalina,
Mac 11.1 Big Sur or later.
Windows 10, 64-bit.
Software
Internal software upgrade via USB.
Power Requirements
1.6 W
4.4V to 5.25V DC
Environmental Specifications
0° to 40° C (32° to 104° F)
-20° to 60° C (-4° to 140° F)
0% to 90% non-condensing
Physical Specifications
What's Included

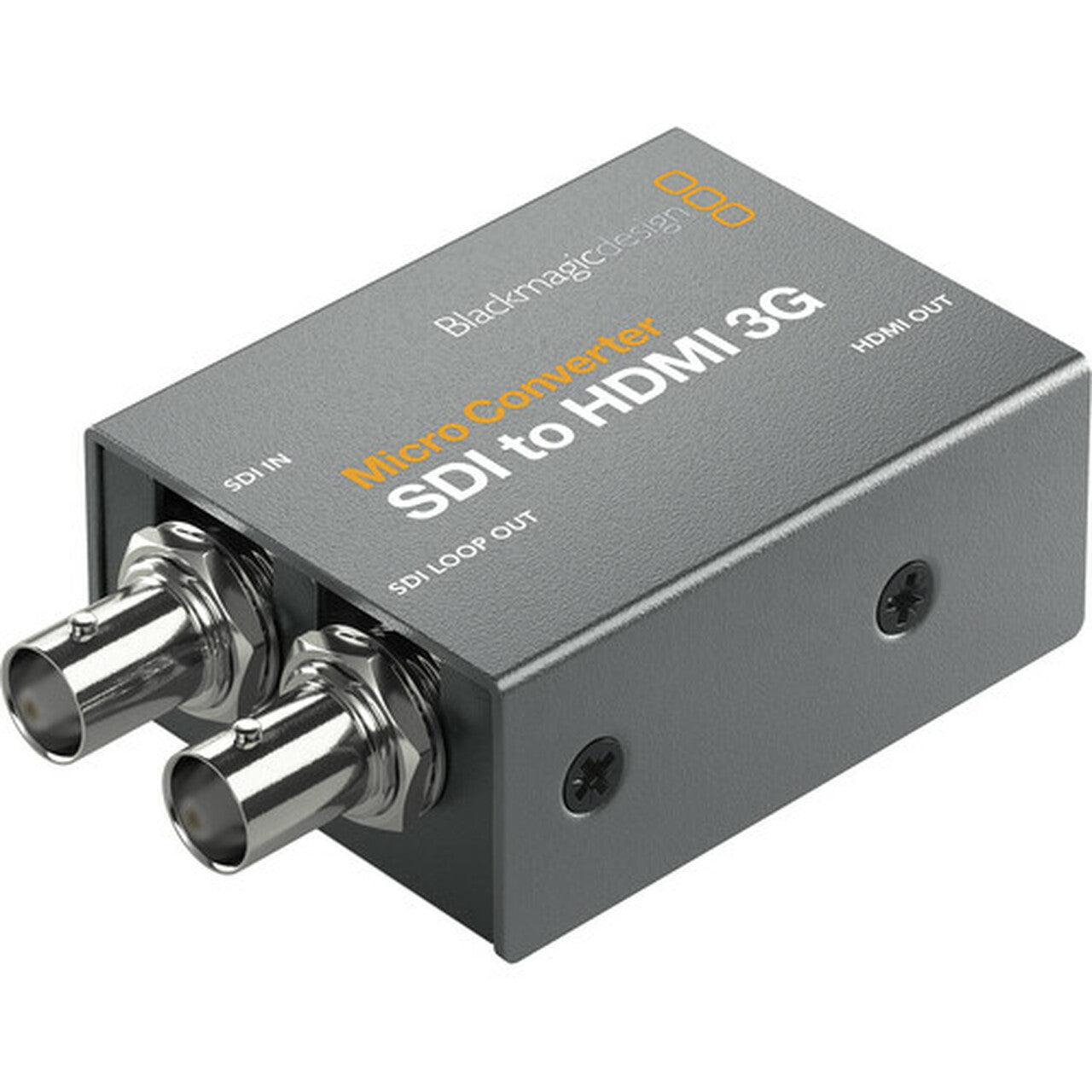

Micro Converter SDI to HDMI 3G
Warranty
3 Year Limited Manufacturer’s Warranty.
