Blackmagic Video Assist 7" 12G HDR

Save $158.00
No reviews

Price:
Sale price$1,157.00 Regular price$1,315.00
Description
    Blackmagic Video Assist 7" 12G HDR adds professional monitoring and recording to any SDI or HDMI camera in all HD, Ultra HD, 2K and 4K DCI formats! The super bright 2500nit 7 inch HDR monitor supports 3D LUTs and features professional scopes along with powerful focus assist and exposure tools that help you accurately set focus, exposure and frame shots. Dual built in SD card recorders save files from any camera in 10‑bit 4:2:2 ProRes or DNx formats. You also get two mini XLR connections with 48V of phantom power and a noise floor of ‑128dBV for high quality, crystal clear audio recording. Plus, you can start editing immediately because you don’t have to convert the files!

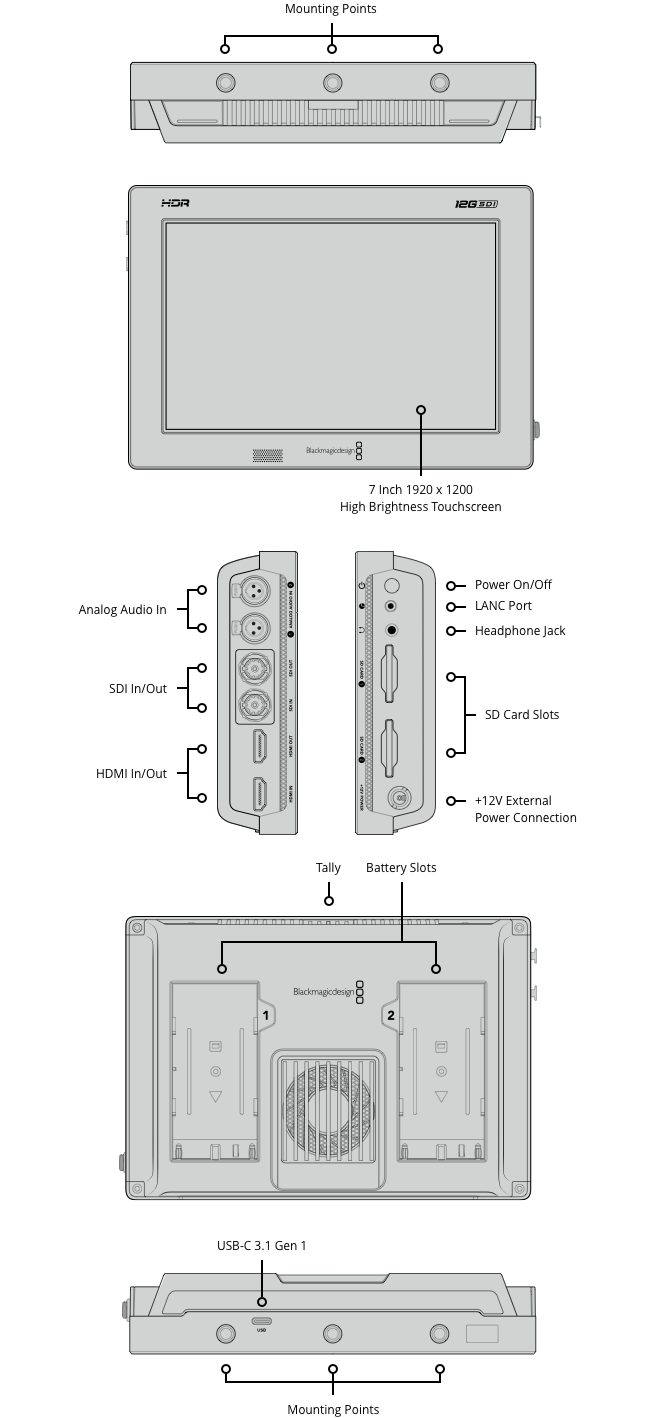

    Connections

    SDI Video Inputs

    1

    SDI Video Outputs

    1

    SDI Rates

    270Mb, 1.5G, 3G, 6G, 12G.

    HDMI 2.0a Video Inputs

    1

    HDMI 2.0a Video Outputs

    1

    Analog Audio Inputs

    2 x balanced mini XLR with phantom power

    Analog Audio Outputs

    1 x 3.5 mm headphone jack.

    Built in Speaker

    Mono

    Screen Dimensions

    7 inch 1920 x 1200.

    Screen Brightness

    2500nits

    Screen Color

    P3 wide color gamut

    SDI Audio Inputs

    16 channels embedded via 12G-SDI

    SDI Audio Outputs

    16 channels embedded via 12G-SDI

    HDMI Audio Inputs

    8 channels embedded via HDMI 2.0a

    HDMI Audio Outputs

    8 channels embedded via HDMI 2.0a

    Remote Control

    1 x 2.5mm LANC for Record Start and Stop.

    SD Interface

    Dual UHS-II SD slots

    Storage Type

    Removable SDXC UHS-II, SDXC UHS-I and SDHC UHS-I SD cards.
    Supports DS, HS, SDR12, SDR25, DDR50, SDR50 and SDR104 SD cards.

    Computer Interface

    1 x USB Type‑C 3.1 Gen 1 for external drive recording, webcam out, initial setup, software updates and Video Assist Utility software control.

    Blackmagic Video Assist 7” 12G HDR
    SDI Video Standards

    SD Video Standards

    525i59.94 NTSC, 625i50 PAL

    HD Video Standards

    720p50, 720p59.94, 720p60
    1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
    1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
    1080i50, 1080i59.94, 1080i60

    2K Video Standards

    2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI
    2KPsF23.98 DCI, 2KPsF24 DCI, 2KPsF25 DCI, 2KPsF29.97 DCI, 2KPsF30 DCI

    Ultra HD Video Standards

    2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60

    4K Video Standards

    4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI

    SDI Compliance

    SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 425M, SMPTE 2084

    SDI Metadata Support

    HD RP188

    Audio Sampling

    Television standard sample rate of 48 kHz and 24-bit.

    Video Sampling

    4:2:2 YUV

    Color Precision

    10-bit

    Color Space

    REC 601, REC 709, REC 2020

    HDR Support

    HDR10, Hybrid Log Gamma

    Multiple Rate Support

    SDI and HDMI switches between 270 Mb/s, 1.5 Gb/s, 3 Gb/s, 6 Gb/s and 12 Gb/s

    SDI RAW

    Blackmagic RAW

    HDMI Video Standards

    SD Video Standards

    525i59.94 NTSC, 625i50 PAL

    HD Video Standards

    720p50, 720p59.94, 720p60
    1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
    1080i50, 1080i59.94, 1080i60

    Ultra HD Video Standards

    2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60

    4K Video Standards

    4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI

    HDMI Color Precision

    10-bit

    HDR Support

    HDR10, Hybrid Log Gamma

    Copy Protection

    HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content.

    Media

    Media

    2 x UHS-II SD for Ultra HD, compatible with regular SD for HD recording. USB Type-C 3.1 Gen 1 for external drive recording.

    Media Type

    SDXC UHS-II, SDXC UHS-I and SDHC UHS-I SD cards.

    Supported Codecs

    Blackmagic RAW Constant Bitrate 3:1, Blackmagic RAW Constant Bitrate 5:1, Blackmagic RAW Constant Bitrate 8:1, Blackmagic RAW Constant Bitrate 12:1, Blackmagic RAW Constant Quality Q0, Blackmagic RAW Constant Quality Q5,

    Apple ProRes 422 HQ, Apple ProRes 422, Apple ProRes 422 LT, Apple ProRes 422 Proxy, DNxHR HQX, DNxHR SQ, DNxHR LB, DNxHR HQX MXF, DNxHR SQ MXF, DNxHR LB MXF.

    Control

    Recorder Control

    Integrated capacitive touchscreen LCD with onscreen controls for settings and navigating menus.

    External Control

    LANC, SDI and HDMI start/stop and timecode run.

    Blackmagic RAW

    Supported Cameras

    Canon

    Canon EOS C300 Mark II

    FUJIFILM

    FUJIFILM GFX100
    FUJIFILM GFX100 II
    FUJIFILM GFX100S
    FUJIFILM GFX100S II
    FUJIFILM X-H2s
    FUJIFILM X-H2
    FUJIFILM X-M5
    FUJIFILM X-T5
    FUJIFILM X-T50
    FUJIFILM X-S20

    Leica

    Leica SL2-S

    Nikon

    Nikon Z 6
    Nikon Z 7
    Nikon Z 6II
    Nikon Z 7II

    Panasonic

    Panasonic AU-EVA1
    Panasonic AW-UB10
    Panasonic AW-UB50
    Panasonic LUMIX BGH1
    Panasonic LUMIX BS1H
    Panasonic LUMIX GH5S
    Panasonic LUMIX GH6
    Panasonic LUMIX GH7
    Panasonic LUMIX G9II
    Panasonic LUMIX S1
    Panasonic LUMIX S1H
    Panasonic LUMIX S5
    Panasonic LUMIX S5D
    Panasonic LUMIX S5II
    Panasonic LUMIX S5IIX

    SIGMA

    SIGMA fp
    SIGMA fp L

    Z CAM

    Z CAM E2
    Z CAM E2-M4
    Z CAM E2-F6
    Z CAM E2-S6

    Software

    Software Included

    Blackmagic OS

    Scopes

    Scopes

    Waveform, RGB Parade, Vector, RGB Histogram.

    Viewing Modes

    Scopes with picture in picture or picture overlay and opacity control. Waveform and Parade with standard and HDR graticules.
