Timecode Clock
Highly accurate timecode clock. Less than 1 frame drift every 8 hours.

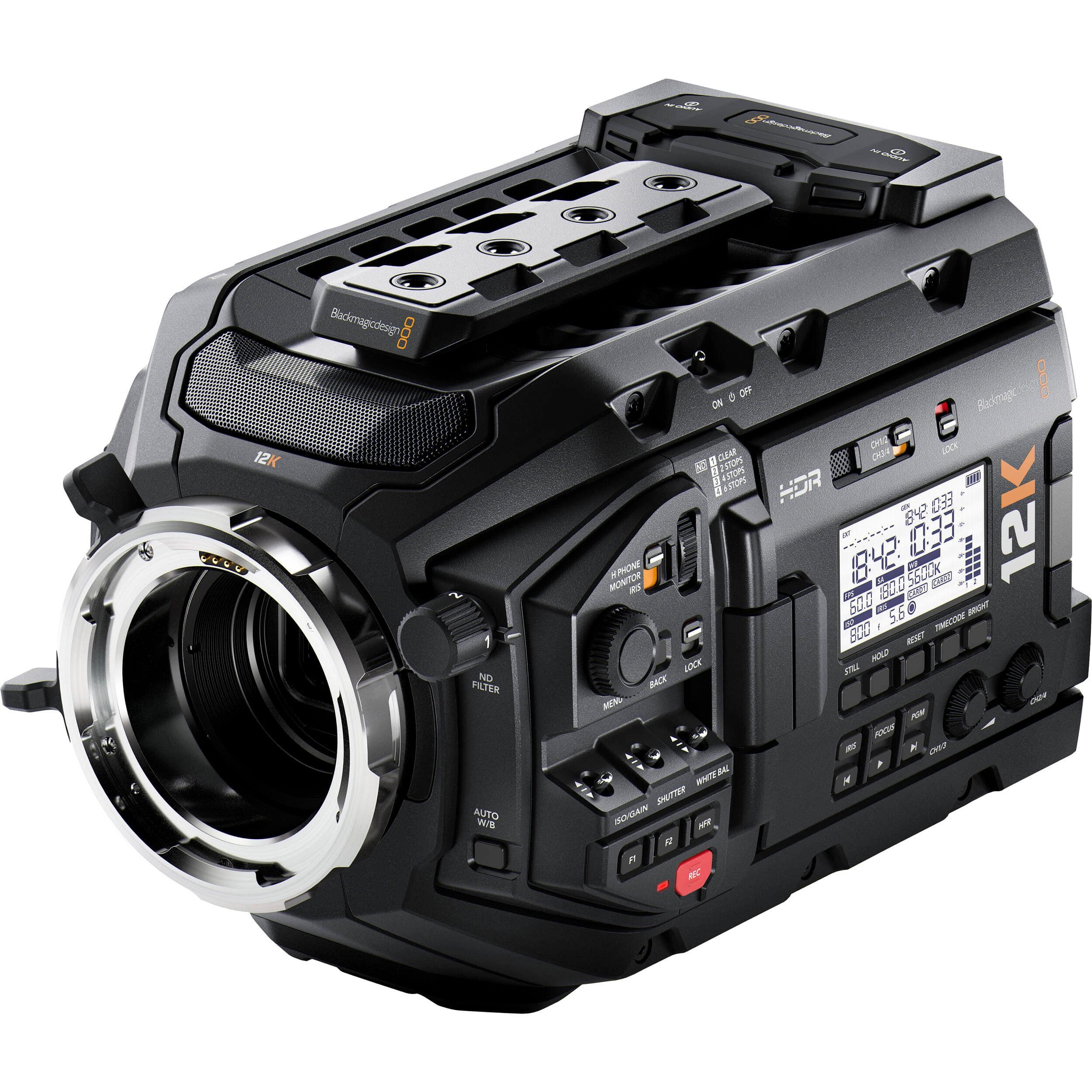

Featuring a revolutionary 12K Super 35mm 80 megapixel sensor with Generation 5 Color Science and 14 stops of dynamic range, URSA Mini Pro 12K is designed for high end feature film production.
URSA Mini Pro 12K is a revolution in digital film with a 12,288 x 6480 12K Super 35 sensor and 14 stops of dynamic range. The third generation URSA Mini Pro features new color science and shoots 80 megapixels per frame in Blackmagic RAW. You also get built in ND filters, user changeable lens mount and recording to dual CFast or SD cards. URSA Mini Pro 12K even supports recording direct to a flash disk or SSD using its built in SuperSpeed USB-C connection!
Effective Sensor Size
27.03mm x 14.25mm (Super35)
Lens Mount
PL mount included. Interchangeable with optional EF and F lens mounts.
Lens Control
12pin broadcast connector for compatible lenses and electronic control via EF mount pins on optional EF lens mount.
Dynamic Range
14 Stops
Shooting Resolutions
12,288 x 6480 (12K DCI)
11,520 x 6480 (12K 16:9)
12,288 x 5112 (12K 2.4:1)
7680 x 6408 (12K anamorphic)
8192 x 4320 (8K DCI)
7680 x 4320 (8K 16:9)
8192 x 3408 (8K 2.4:1)
5120 x 4272 (8K anamorphic)
6144 x 3240 (6K Super16)
4096 x 2160 (4K Super16)
4096 x 2160 (4K DCI)
3840 x 2160 (4K 16:9)
4096 x 1704 (4K 2.4:1)
2560 x 2136 (4K anamorphic)
Frame Rates
Maximum sensor frame rate dependent on resolution selected. Project frame rates of 23.98, 24, 25, 29.97, 30, 50, 59.94 and 60 fps supported.
High Speed Frame Rates
12K 17:9 full sensor up to 60 fps12K 2.4:1 up to 75 fps
8K DCI full sensor up to 120 fps
4K DCI full sensor up to 120 fps
8K 2.4:1 and 4K 2.4:1 up to 160 fps6K Super 16 up to 120 fps
4K Super 16 up to 240 fps
Built in ND Filters
Four position ND filter wheel with clear, 2-stop, 4-stop and 6-stop IR ND filters.
Focus
Focus button triggers auto focus when using compatible lenses with focus servo. Touch and hold on LCD determines focus region and triggers auto focus.
Iris Control
Iris wheel and touchscreen slider for manual iris adjustment on electronically controllable lenses, iris button for instant auto iris settings on compatible lenses so no pixel is clipped in film mode. Scene average auto exposure in video mode.
Screen Dimensions
4 inch
Screen Type
LCD capacitive touchscreen.
Metadata Support
Automatically populated lens data from i/Technology with compatible PL lenses and electronic EF lenses when using optional EF lens mount. Automatic recording of camera settings and slate data such as project, scene number, take and special notes.
Controls
Touchscreen menus on 4 inch screen. Push buttons for other controls. 3 assignable shortcut keys.
Total Video Inputs
1 x 12G-SDI
Total Video Outputs
1 x 12G-SDI, 1 x 3G-SDI Monitoring.
SDI Rates
1.5G, 3G, 6G, 12G.
Analog Audio Inputs
2 x XLR analog switchable between mic, line and AES audio. Phantom power support.
Analog Audio Outputs
1 x 3.5mm headphone jack, supports iPhone microphone for talkback.
Reference Inputs
Tri-Sync/Black Burst/Timecode.
Remote Control
1 x 2.5mm LANC input for Rec Start/Stop, plus Iris and Focus control using compatible lenses.
Computer Interface
1 x USB Type-C 3.1 Gen 2 with power delivery for external drive recording.
1 x USB Type-C for software updates.
Microphone
Integrated stereo microphone.
Built in Speaker
1 x mono speaker.
SD Video Standards
None
HD Video Standards
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080i50, 1080i59.94, 1080i60
Ultra HD Video Standards
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
SDI Compliance
SMPTE 292M, SMPTE 424 Level B, SMPTE 2081-1, SMPTE 2082-1
SDI Audio Sampling
48 kHz and 24 bit
Media
2 x CFast 2.0 card slots, 2 x SD UHS-II card slots, 1 x USB-C 3.1 Gen 2 expansion port with power delivery for recording to external media.
Alternative Media
1 x 2.5” drive slot for 7mm and 9.5mm U.2 NVMe SSD or SATA SSD with optional URSA Mini Recorder.
Media Format
Can format media to ExFAT (Windows/Mac) or HFS+ (Mac) file systems.
Storage Type
2 x CFast 2.0
2 x SD UHS-II cards
1 x high speed USB-C expansion port for external media.
Storage Rates
12K Full Sensor - 12,288 x 6480
at 24 frames per second.
Blackmagic RAW 5:1 - 578 MB/s
Blackmagic RAW 8:1 - 361 MB/s
Blackmagic RAW 12:1 - 241 MB/s
Blackmagic RAW 18:1 - 160 MB/s
Blackmagic RAW Q0 - 289 to 1,156 MB/s
Blackmagic RAW Q1 - 241 to 963 MB/s
Blackmagic RAW Q3 - 145 to 722 MB/s
Blackmagic RAW Q5 - 97 to 413 MB/s
8K Full Sensor - 8192 x 4320
at 24 frames per second.
Blackmagic RAW 5:1 - 257 MB/s
Blackmagic RAW 8:1 - 161 MB/s
Blackmagic RAW 12:1 - 107 MB/s
Blackmagic RAW 18:1 - 71 MB/s
Blackmagic RAW Q0 - 257 to 642 MB/s
Blackmagic RAW Q1 - 214 to 428 MB/s
Blackmagic RAW Q3 - 107 to 321 MB/s
Blackmagic RAW Q5 - 81 to 257 MB/s
6K Super 16 - 6144 x 3240
at 24 frames per second.
Blackmagic RAW 5:1 - 146 MB/s
Blackmagic RAW 8:1 - 91 MB/s
Blackmagic RAW 12:1 - 61 MB/s
Blackmagic RAW 18:1 - 40 MB/s
Blackmagic RAW Q0 - 73 to 291 MB/s
Blackmagic RAW Q1 - 61 to 242 MB/s
Blackmagic RAW Q3 - 37 to 182 MB/s
Blackmagic RAW Q5 - 25 to 104 MB/s
4K Full Sensor - 4096 x 2160
at 24 frames per second.
Blackmagic RAW 5:1 - 161 MB/s
Blackmagic RAW 8:1 - 107 MB/s
Blackmagic RAW 12:1 - 80 MB/s
Blackmagic RAW 18:1 - 53 MB/s
Blackmagic RAW Q0 - 161 to 268 MB/s
Blackmagic RAW Q1 - 107 to 214 MB/s
Blackmagic RAW Q3 - 81 to 179 MB/s
Blackmagic RAW Q5 - 54 to 161 MB/s
4K Super 16 - 4096 x 2160
at 240 frames per second.
Blackmagic RAW 5:1 - 648 MB/s
Blackmagic RAW 8:1 - 405 MB/s
Blackmagic RAW 12:1 - 271 MB/s
Blackmagic RAW 18:1 - 180 MB/s
Blackmagic RAW Q0 - 648 to 1,618 MB/s
Blackmagic RAW Q1 - 540 to 1,079 MB/s
Blackmagic RAW Q3 - 271 to 810 MB/s
Blackmagic RAW Q5 - 203 to 648 MB/s
Recording Formats
Blackmagic RAW Q0, Q1, Q3, Q5, 5:1, 8:1, 12:1 and 18:1 at 12,288 x 6480, 11,520 x 6480, 12,288 x 5112, 7680 x 6408, 8192 x 4320, 7680 x 4320, 8192 x 3408, 5120 x 4272, 6144 x 3240, 4096 x 2160, 3840 x 2160, 4096 x 1704 and 2560 x 2136 stored as 12 bit non-linear with film, extended video, video or custom 3D LUT embedded in metadata.
