Effective Sensor Size
17.78mm x 10mm (Four Thirds)
The Blackmagic Studio Camera 4K Plus G2 has the same features as large studio cameras, miniaturized into a single compact and portable design. Plus with digital film camera dynamic range and color science, the cameras can handle extremely difficult lighting conditions while producing cinematic looking images. The sensor features an ISO up to 25,600 so you can create amazing images even in dimly lit venues. It even works under moonlight! Advanced features include tally, camera control, built in color corrector, Blackmagic RAW recording to USB disks and much more! You can even add a focus and zoom demand for lens control!
17.78mm x 10mm (Four Thirds)
Active MFT Mount.
Iris, focus, zoom on supported lenses.
13 Stops.
0dB and 18dB gain.
f11 with 2160p59.94.
f12 with 2160p50.
at 2,000 lux with 89.9% reflectance.
63dB for 2160p.
3840 x 2160 (Ultra HD) up to 60 fps.
23.98, 24, 25, 29.97, 30, 50, 59.94 and 60 frames per second.
Off-speed frame rates up to 60 fps in Ultra HD.
Auto focus available using compatible lenses.
7 inch 1920 x 1200
LCD capacitive touchscreen.
600 nits
Touchscreen camera settings and menus with rotary settings dial, program button, F1, F2 and F3 assignable function buttons, brightness contrast and peaking dials.
2 x 1/4 inch tripod mount.
1 x 3/8 inch tripod mount.
1
1
1.5G, 3G, 6G, 12G.
1
1 x 3.5mm Stereo Input. Can also be used for Timecode input.
1 x 3.5mm TRRS mini jack for headphones with mic.
Program SDI Input on camera or on Blackmagic Studio Converter.
2 channels of program audio embedded in 1.5G/3G/6G/12G-SDI. 2 talkback channels on 15 and 16
Remote camera control over SDI, HDMI or USB Ethernet.
2 x USB Type‑C 3.1 Gen 1 (up to 5Gb/s) expansion ports for external recording and focus / zoom demand connection. Software updates using USB‑C Port A.
Integrated stereo microphone.
1 x mono speaker.
None
1080i50, 1080i59.94, 1080i60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
SMPTE 292M, SMPTE 424M, SMPTE 425M level A and B, SMPTE 2081‑1, SMPTE 2081‑10, SMPTE 2082‑1 and SMPTE 2082‑10.
Television standard sample rate of 48 kHz and 24‑bit.
Television standard sample rate of 48 kHz and 24‑bit.
2 x USB-C 3.1 Gen 1 expansion ports for externalmedia for recording Blackmagic RAW.
Can format media to ExFAT (Windows/Mac) or HFS+ (Mac) file systems.
Blackmagic RAW Constant Bitrate 3:1,
Blackmagic RAW Constant Bitrate 5:1,
Blackmagic RAW Constant Bitrate 8:1,
Blackmagic RAW Constant Bitrate 12:1,
Blackmagic RAW Constant Quality Q0,
Blackmagic RAW Constant Quality Q1,
Blackmagic RAW Constant Quality Q3,
Blackmagic RAW Constant Quality Q5
2 x USB‑C 3.1 Gen 1 expansion ports for external media.
Blackmagic RAW 3:1, 5:1, 8:1, 12:1, Q0, Q1, Q3 and Q5 in Ultra HD 3840 x 2160 at the selected frame rate.
Storage rates based on 30 frames per second.
3840 x 2160 (Ultra HD)
Blackmagic RAW 3:1 - 127 MB/s
Blackmagic RAW 5:1 - 77 MB/s
Blackmagic RAW 8:1 - 48 MB/s
Blackmagic RAW 12:1 - 32 MB/s
Blackmagic RAW Q0 - 96 to 190 MB/s
Blackmagic RAW Q1 - 64 to 153 MB/s
Blackmagic RAW Q3 - 43 to 109 MB/s
Blackmagic RAW Q5 - 26 to 64 MB/s
Constant Quality storage rates quoted are indicative only.
Actual storage rates are entirely dependent on image subject matter.
Blackmagic Zoom Demand and Blackmagic Focus Demand for controlling your camera and lens from tripod handles.
Blackmagic Control Protocol over SDI and HDMI for external control when used with a compatible ATEM switcher with ATEM Software Control or ATEM Camera Control Panel. Includes control of some camera settings, focus, iris and zoom with compatible lenses, color corrector, tally and record start and stop to external media via USB expansion port.
Camera Control REST API over USB Ethernet for external control via HTTP when used with REST client applications such as Postman.
Network time protocol support allows you to sync the time on your camera, whenever connected to a network with any NTP server of your choice.
Using a browser connected over Ethernet, web media manager allows you to access, browse, download and delete files from any drive connected to the camera.
Download files from any drive attached to your camera using FTP.
File sharing using SMB
DaVinci YRGB
1 x front facing for talent,
1 x rear facing for operator.
SDI Channels 15 and 16.
Blackmagic Camera Setup for Mac and Windows.
1 x External 12V DC 60W power supply.
1 x 12V DC locking 5.5 mm barrel connector.
15 ‑ 22 W.
Blackmagic Focus Demand
Blackmagic Zoom Demand
ATEM Mini switchers
ATEM Television Studio HD and HD Pro switchers
0° to 40° C (32° to 104° F)
-20° to 45° C (-4° to 113° F)
0% to 90% non-condensing

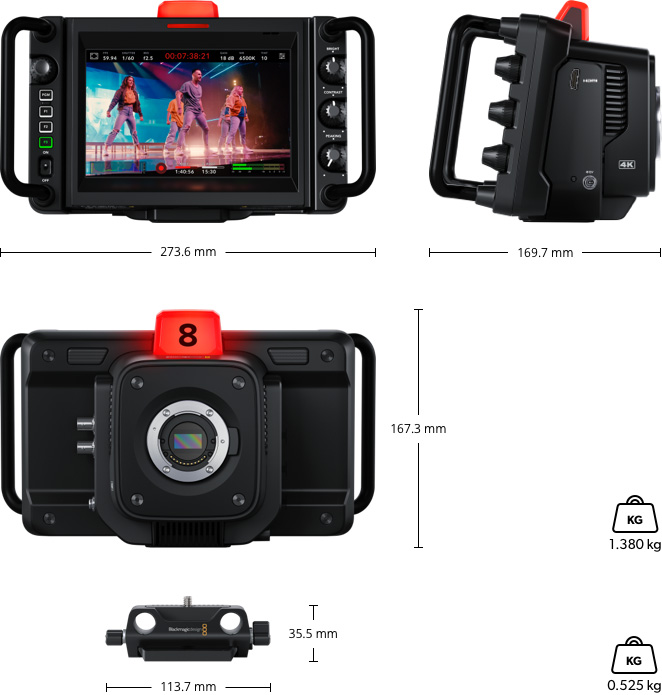

Blackmagic Studio Camera 4K Plus G2
Blackmagic Studio Camera Sun Shade
Tripod Mount compatible with 15mm lightweight rails
Turret Dust Cap
External 12V DC power supply with locking connector and international socket adapters for most countries.
12 Month Limited Manufacturer’s Warranty.
