10G Ethernet Ports
16 x 10Gb/s RJ‑45 connectors supporting 100/1000/10G BASE‑T.
CONTACT US
WE WANT TO HEAR FROM YOU
Please feel free to Email: mediatitanstech@gmail.com or Phone: (03) 9021 2521 or send us a message here. Please allow one business day to respond.
INQUIRIES
- Description
- Connections
- Control
- Software
- Power Requirements
- Environmental Specifications
- What's Included
- Warranty
- Shipping details
- Reviews
Description

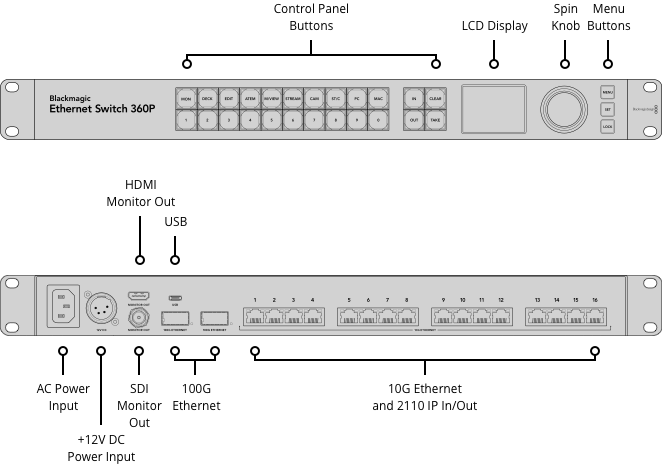

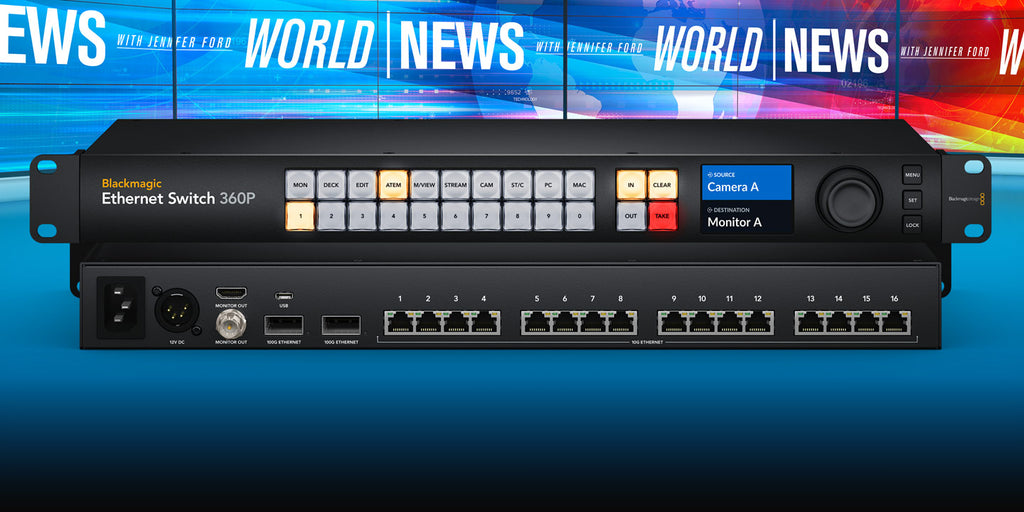

Blackmagic Ethernet Switch 360P is the first Ethernet switch designed specifically for the film and television industry. It is a high performance low latency Ethernet switch with 16 fast 10G Ethernet and 2 high speed 100G Ethernet ports, QSFP connection for high speed copper cables or longer optical fiber cables, rear Ethernet connections for better cable management and NMOS protocol for 2110 IP video workflows.
Connections
100G Ethernet Ports
2 x 100Gb/s QSFP28 connectors.
SDI Monitor Outputs
1
HDMI Monitor Outputs
1
Computer Interface
USB‑C
IP Video Compliance
Precision Time Protocol
IEEE 1588-2008 (PTP v2)
ST 2059‑1
ST 2059‑2
NMOS IS-04 Discovery and Registration
v1.3.2
Peer-to-peer via mDNS/DNS‑SD
NMOS IS-05 Connection Management
v1.1.2
NMOS BCP‑002‑01
Natural Grouping
NMOS BCP‑004‑01
Receiver capabilities
Displays
SDI Monitor Out Standards
1080p50, 1080p59.94, 1080p60
HDMI Monitor Out Standards
1080p50, 1080p59.94, 1080p60
Monitor Out Displays
Device Name, network connections, network activity.
Front Panel Display
Built in 2.2 inch LCD for video and menu settings.
Control
Built in Control Panel
24 buttons for local control of Blackmagic Ethernet Switch 360P with 3 buttons and search dial for video and menu settings menu control. 2.2 inch color display.
Software
Software Control
Internal Software Upgrade
Via included updater application.
Operating Systems
Mac 13.0 Ventura,
Mac 14.0 Sonoma or later.
Windows 10, 64-bit.
Windows 11.
Power Requirements
Power Supply
Internal 100 - 240V AC 50/60Hz with IEC C14 mains input.
Power Inputs
1 x IEC C14 mains input.
1 x 4-pin XLR +12V DC input.
Power Usage
100 W
Physical Installation
1 rack unit.
Physical Specifications
Environmental Specifications
Operating Temperature
5° to 40° C (41° to 104° F)
Storage Temperature
‑20° to 45° C (-4° to 113° F)
Relative Humidity
0% to 90% non‑condensing
What's Included
Blackmagic Ethernet Switch 360P
Welcome wallet with QR code for software download
Warranty
1 Year Limited Manufacturer’s Warranty.
