HDMI Video Outputs
1
CONTACT US
WE WANT TO HEAR FROM YOU
Please feel free to Email: mediatitanstech@gmail.com or Phone: (03) 9021 2521 or send us a message here. Please allow one business day to respond.
INQUIRIES
- Description
- Connections
- Video Standards
- Power Requirements
- Environmental Specifications
- What's Included
- Shipping details
- Reviews
Description

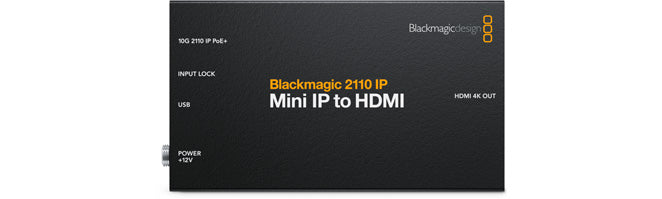

Blackmagic 2110 IP Mini IP to HDMI lets you monitor 2110 IP video and audio on any HDMI monitor or TV. Its compact design means it can be placed behind displays, while it connects and powers from 10G Ethernet and supports HD and Ultra HD standards to 2160p60. Also includes DC power supply.
Connections
HDMI Audio Outputs
1
SMPTE ST-2110 IP Video Inputs
1 x 10G Ethernet
SMPTE ST 2110 IP Audio Inputs
16 Ch embedded audio on ST-2110 IP video via 10G Ethernet.
Ethernet
1 x 10Gb/s RJ‑45 PoE++ connector supporting 10/100/1000/10G BASE-T for SMPTE-2110 IP video in, configuration and firmware updates.
Computer Interface
1 x USB-C 3.0 for configuration and firmware updates.
Video Standards
HDMI HD Video Standards
720p50, 720p59.94, 720p60
1080i50, 1080i59.94, 1080i60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60
HDMI Ultra HD Video Standards
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60
HDMI 4K Video Standards
4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp47.95 DCI, 4Kp48 DCI, 4Kp50 DCI, 4Kp59.94 DCI and 4Kp60 DCI.
SMPTE Compliance
SMPTE ST2110‑20, SMPTE ST2110‑21, SMPTE ST2110‑30, SMPTE ST2110‑40.
HDMI Color Precision
4:2:2
HDMI Color Space
YUV
IP Video Compliance
SMPTE 2110-20 (Uncompressed Video)
IGMP v2
SMPTE 2110-21 (Traffic Shaping)
Sender: Narrow
Receiver: Narrow, Wide Synchronous, Asynchronous
SMPTE 2110-30 (PCM)
Audio Conformance level: Level C
SMPTE 2110-40 (Ancillary Data)
Full access to entire SMPTE ancillary data stream. Includes RP 188/SMPTE 12M-2, closed captioning and HDR static metadata.
Codec
Blackmagic IP10 codec used when converting 12G-SDI rates to 10G 2110 IP video.
Precision Time Protocol
IEEE 1588-2008 (PTP v2)
ST 2059-1
ST 2059-2
NMOS IS-04 Discovery and Registration
v1.3.2
Peer-to-peer via mDNS/DNS‑SD
NMOS IS-05 Connection Management
v1.1.2
NMOS BCP-002-01
Natural Grouping
NMOS BCP-004-01
Receiver capabilities
Displays
1 x IP Input Lock LED indicator light
Operating Systems
Mac 13.0 Ventura,
Mac 14.0 Sonoma or later.
Windows 10 and 11.
Power Requirements
Power Supply
1 x +12V DC external universal power supply with locking 5.5mm barrel Jack plus international socket adapters for most countries.
1 x RJ45 Ethernet connector for power from PoE++ power supplies.
Operational Voltage Range
12 - 16 V
Power Usage
18W

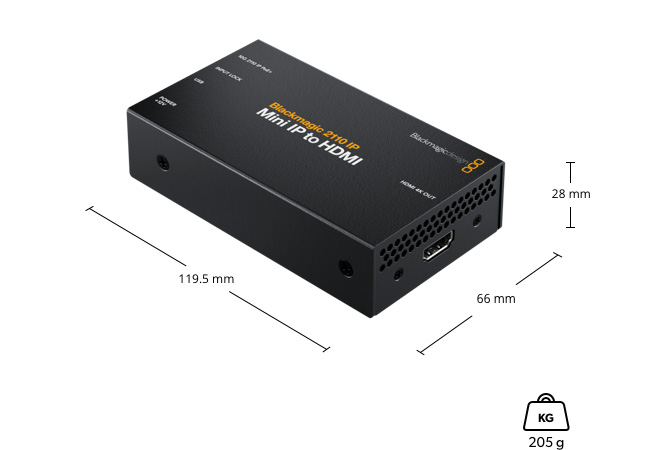

Physical Specifications
Environmental Specifications
Operating Temperature
5° to 40° C (41° to 104° F)
Storage Temperature
-20° to 45° C (-4° to 113° F)
Relative Humidity
0% to 90% non‑condensing
What's Included
Blackmagic 2110 IP Mini IP to HDMI
Welcome wallet with QR code for software download
Warranty
1 Year Limited Manufacturer’s Warranty.
Shipping details
Our couriers will try to get your order delivered the day after your order is placed with us. The cut-off time for next day delivery is one pm on that day.
It is the customer's responsibility to ensure someone is available to sign for receipt of the goods at the delivery address provided. If our courier is unable to deliver for any reason, you may be invoiced for the attempted/failed delivery backcharge. Please double check your address is correct. Thank you.
Reviews
