Blackmagic 2110 IP Mini BiDirect 12G lets you convert broadcast cameras with SDI connections to SMPTE-2110 IP video systems. Its 12G-SDI connection supports SD, HD and Ultra HD standards up to 2160p60 and even handles the SDI program return. Blackmagic 2110 IP Mini BiDirect 12G also has a 5 pin XLR talkback headset connection with talkback volume control and a press to talk button. It connects and powers from 10G Ethernet or the included DC power supply.
Connections
1
1
1 x 10G Ethernet
1 x 5 pin XLR Talkback.
1 x 5 pin XLR Talkback.
16 Ch embedded audio on SDI input.
16 Ch embedded audio on SDI output.
16 Ch embedded audio on ST-2110 IP video via 10G Ethernet.
16 Ch embedded audio on ST-2110 IP video via 10G Ethernet.
Auto detection of HD, Ultra HD and 4K.
Yes
1 x 10Gb/s RJ‑45 connector for SMPTE‑2110 IP video in and out.
1 x USB‑C for configuration and firmware updates.
SDI Video Standards
720p50, 720p59.94, 720p60
1080i50, 1080i59.94, 1080i60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60
1080PsF25, 1080PsF29.97, 1080PsF30
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60
4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp47.95 DCI, 4Kp48 DCI, 4Kp50 DCI, 4Kp59.94 DCI and 4Kp60 DCI.
SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M, SMPTE 2081‑1, SMPTE 2081‑10, SMPTE 2082‑1, SMPTE 2082‑10, SMPTE ST2110‑20, SMPTE ST2110‑21, SMPTE ST2110‑30, SMPTE ST2110‑40.
SDI video connections are switchable between standard definition, 720p, 1080i, 1080p, 2K DCI, Ultra HD and 4K DCI.
4:2:2
YUV
SDI video connections are switchable between 720p, 1080i, 1080p, Ultra HD and 4K DCI.
IP Video Compliance
IGMP v2
Sender: Narrow
Receiver: Narrow, Wide Synchronous, Asynchronous
Audio Conformance level: Level C
Full access to entire SMPTE ancillary data stream. Includes RP 188/SMPTE 12M-2, closed captioning and HDR static metadata.
Blackmagic IP10 codec used when converting 12G-SDI rates to 10G 2110 IP video.
IEEE 1588-2008 (PTP v2)
ST 2059-1
ST 2059-2
v1.3.2
Peer-to-peer via mDNS/DNS‑SD
v1.1.2
Natural Grouping
Receiver capabilities
LED Indicators
1 x IP Input Lock LED indicator light
1 x SDI Input Lock LED indicator light
1 x Tally LED indicator light
Control
Talkback button controls for Volume Up, Volume Down and Push to Talk.
Talkback and Tally
5‑pin XLR talkback headset connection for talkback on channels 15/16 in the SDI and 2110 IP video.
Tally LED indicator light
Operating Systems
Mac 13.0 Ventura,
Mac 14.0 Sonoma or later.
Windows 10 and 11.
Power Requirements
1 x +12V DC external universal power supply with locking 5.5mm barrel Jack plus international socket adapters for most countries.
1 x RJ45 Ethernet connector for power from PoE++ power supplies.
12 - 16 V
18W

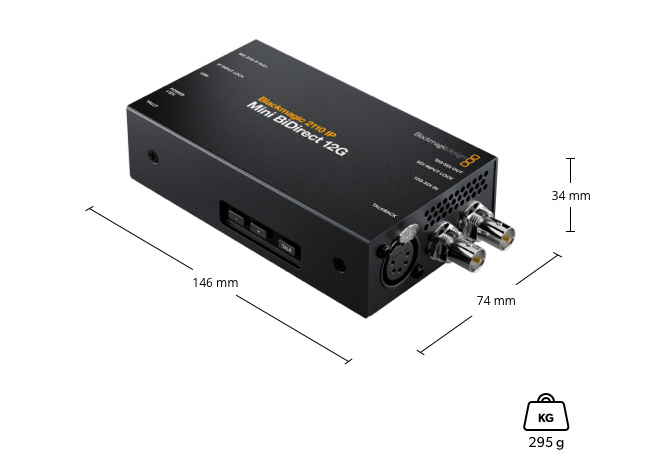

Physical Specifications
Environmental Specifications
5° to 40° C (41° to 104° F)
-20° to 45° C (-4° to 113° F)
0% to 90% non‑condensing
What's Included
Blackmagic 2110 IP Mini BiDirect 12G
Plug Pack Power Supply with universal adaptor plugs
Warranty
1 Year Limited Manufacturer’s Warranty.
