The new Blackmagic 2110 IP Converter 3x3G lets you convert 3 separate 3G-SDI devices to 2110 IP video systems. That’s because its 10G Ethernet connection can handle 3 separate video channels at the same time. Plus each channel has independent SDI inputs and SDI outputs, so you could even connect to 6 completely different SDI devices! All 3G-SDI inputs feature loop outputs so you can install the converter in line within existing SDI systems. There's also a reference output, timed to the 2110 PTP clock! Blackmagic 2110 IP Converter 3x3G includes an elegant front panel with a color LCD for monitoring, menus and diagnostics. You can even route IP inputs from the panel!

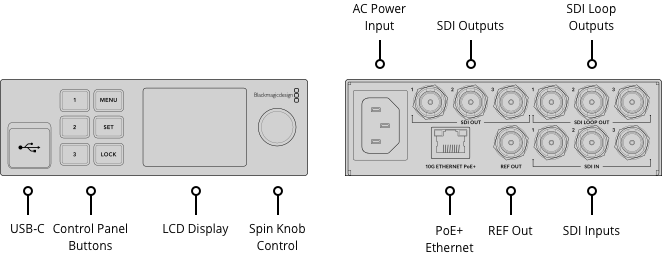

Connections
3
3
3
16 channels embedded audio.
10G Ethernet supports 3 x video input channels and 3 x video output channels each up to 1080p60 and up to 16 channels of embedded audio plus ancillary data.
1 x 10Gb/s PoE+ RJ‑45 connector supports 10/100/1000/10G BASE-T.
Tri-Sync or Black Burst.
USB-C for updates, configuration and control.
Video Standards
720p50, 720p59.94, 720p60
1080i50, 1080i59.94, 1080i60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M, ITU-R BT.656, ITU-R BT.601.
RP 188/SMPTE 12M-2 and closed captioning.
Television standard sample rate of 48 kHz and 24 bit.
8, 10 RGB 4:4:4 in all modes up to 1080p30 and 8, 10-bit YUV 4:2:2 in all modes.
REC 709
IP Video Compliance
IGMP v2
Sender: Narrow
Receiver: Narrow, Wide Synchronous, Asynchronous
Audio Conformance level: Level C
Full access to entire SMPTE ancillary data stream. Includes RP 188/SMPTE 12M-2, closed captioning and HDR static metadata.
IEEE 1588-2008 (PTP v2)
ST 2059-1
ST 2059-2
v1.3.2
Peer-to-peer via mDNS/DNS-SD
v1.1.2
Natural Grouping
Receiver capabilities
Control
6 buttons with spin knob control and 2.2 inch color display for device control and menu settings.
RJ-45 10Gb/s Ethernet and USB-C.
Display
Built in 2.2 inch LCD for video, video standard, audio and timecode monitoring plus menu settings.

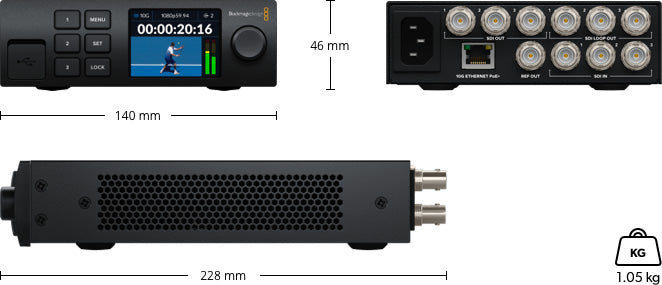

Physical Specifications
Operating Systems
Mac 13.0 Ventura,
Mac 14.0 Sonoma or later.
Windows 10 and 11.
Power Requirements
Power Supply
1 x Internal 100 - 240V AC 50/60Hz.
1 x IEC C14 socket for AC power.
1 x RJ45 Ethernet connector for power from PoE+ power supplies.
20 W
Environmental Specifications
5° to 40 ° C (32° to 104° F)
-20° to 60° C (-4° to 140° F)
0% to 90% non-condensing
What's Included
Blackmagic 2110 IP Converter 3x3G
Welcome wallet with QR code for software download
Warranty
1 Year Limited Manufacturer's Warranty
