Ethernet
RJ45 Ethernet In and Out. Power over ethernet supported on Ethernet In. No power over ethernet on Ethernet Out.
CONTACT US
WE WANT TO HEAR FROM YOU
Please feel free to Email: mediatitanstech@gmail.com or Phone: (03) 9021 2521 or send us a message here. Please allow one business day to respond.
INQUIRIES
- Description
- Connections
- Software
- Power Requirements
- Physical Specifications
- Environmental Specifications
- What's Included
- Warranty
- Shipping details
- Reviews

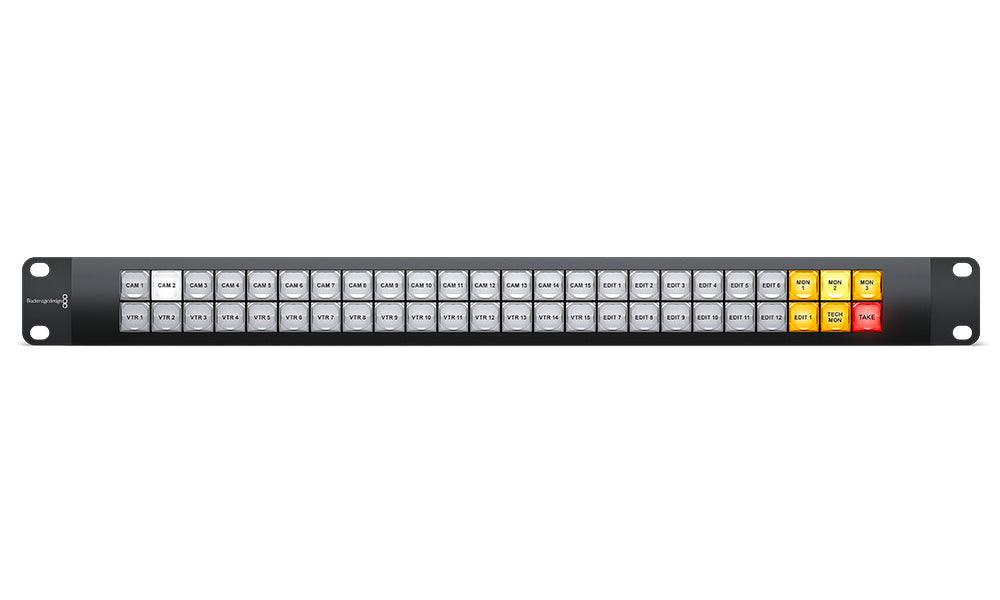

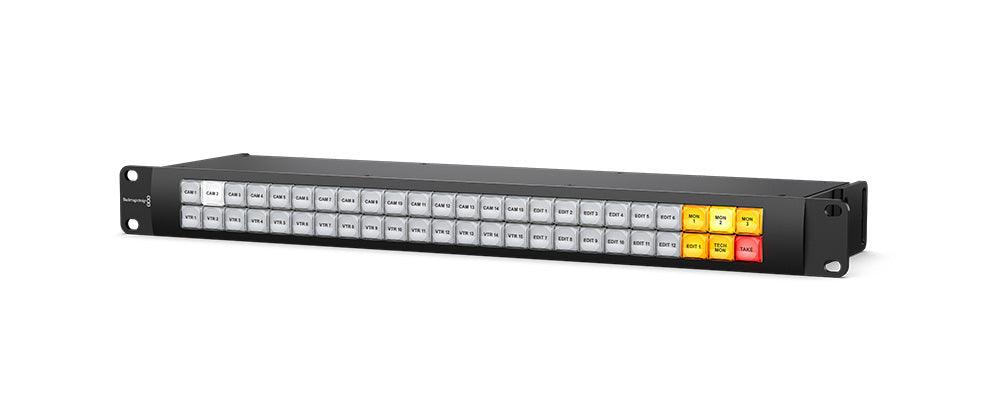

Description
When you want the fastest routing you can get, then Videohub Smart Control Pro lets you route with a single button press. Program each button for a single router cross point and when pressed the route is made. You can program to have multiple destinations and even a take button! Plus Videohub Smart Control Pro can be configured to be a Videohub or 2110 NMOS controller. Powers via DC or the Ethernet connection!

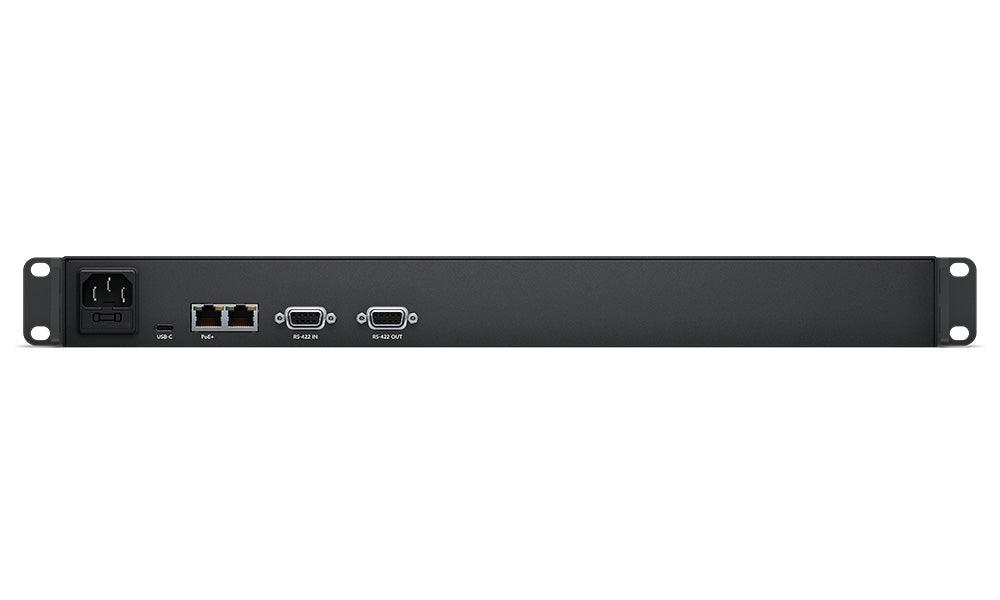

Connections
RS-422
In and Out (for future implementation)
Computer Interface
USB-C for configuration and software updates.
Power
100 - 240 AC
Macro Capability
Up to 10 macro buttons can be assigned to activate multiple simultaneous switching commands.
Hardware Control
48 programmable buttons and RJ45 Ethernet used for remote control of routers over an IP network.
IP Video Compliance
Precision Time Protocol
IEEE 1588‑2008 (PTP v2)
ST 2059‑1
ST 2059‑2
NMOS IS-04 Discovery and Registration
v1.3.2
Peer‑to‑peer via mDNS/DNS‑SD
NMOS IS-05 Connection Management
v1.1.2
NMOS BCP‑002‑01
Natural Grouping
NMOS BCP‑004‑01
Receiver capabilities
Software
Internal Software upgrade via included firmware updater application via USB.
Operating Systems
Mac 13.0 Ventura,
Mac 14.0 Sonoma or later.
Windows 10, 64-bit.
Windows 11.
Physical Installation
1 rack unit size. Less than 3 inches deep.
Button Configuration
Included free for Windows™ and Mac™ via USB 2.0 high speed (480Mb/s) interface.
Power Requirements
Power Fail Protection
Button configurations and router communication preserved and restored instantly at power on. Button configuration can also be saved for later recall.
Power Supply
Internal 100 - 240 V AC

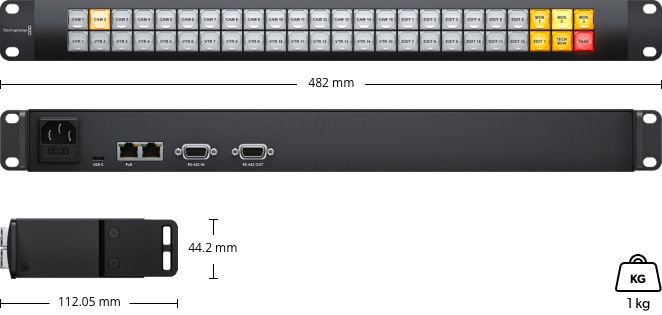

Physical Specifications
Environmental Specifications
Storage Temperature
-20° to 45° C (-4° to 113° F)
Relative Humidity
0% to 90% non-condensing
What's Included
Videohub Smart Control Pro
Warranty
1 Year Limited Manufacturer’s Warranty.
