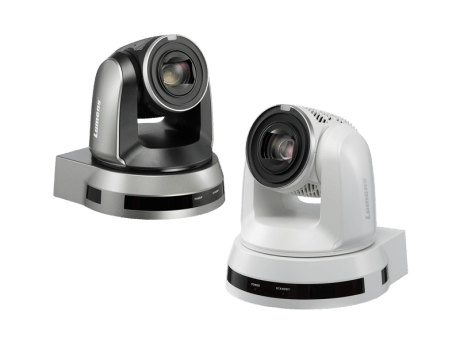

A powerful and cost-effective HD and UltraHD PTZ camera with 30x zoom, 3G-SDI, HDMI and IP streaming.
- Supports 4K UHD at 30fps and 1080P at 60fps
- Powerful 30x optical zoom, with 68 degrees horizontal field of view at its widest setting
- Easy installation: delivers video output via Ethernet, HDMI, and 3G-SDI simultaneously
- Excellent support: 5 year warranty as standard
*The VC-A61PN version of the camera adds NDI®|HX PTZ support for fast integration with NDI® infrastructures.
5 Year Warranty
Sensor
1/2.5" 8.57MP CMOS
Video Format
2160p: 29.97 / 25
1080p: 59.94 / 50 / 29.97 / 25
1080i: 59.94 / 50
720p: 59.94 / 50 / 29.97 / 25
Video Output (HD) Interface
3G-SDI / HDMI / Ethernet
Optical Zoom
30x
Digital Zoom
12x
Horizontal Viewing Angle
68°
Vertical Viewing Angle
38.3°
Diagonal Viewing Angle
78°
Aperture
F1.6 ~ F3.4
Focal Length
4.6mm ~ 135mm
Shutter Speed
1/1 ~ 1/10,000 sec
Minimum Object Distance
1.5m (Wide/Tele)
Video S/N Ratio
> 50dB
Minimum Illumination
0.1 lux (F1.6, 50IRE, 30fps)
Focus System
Auto / Manual / Smart AF
Gain Control
Auto / Manual
White Balance
Auto / Manual
Exposure Control
Auto / Manual
WDR
Yes
3D NR
Yes
Image Flip
Yes
Tally Light
Yes
IP Protocol
RTSP / RTMP / RTMPS / MPEG-TS / SRT
PoE
PoE+ (IEEE802.3at)
HDMI / 3G-SDI
HDMI Output: 2160p29.97
3G-SDI Output: 1080p59.94
IP Stream
HEVC(H.265) 4K 29.97fps
H.264 1080p 59.94fps
H.264 640x360 29.97fps
IP Compression
HEVC(H.265) / H.264
Panning Angle
+170 ~ -170°
Panning Speed
300°/sec
Tilting Angle
+90 ~ -30°
Tilting Speed
300°/sec
Preset Positions
256
Audio Input
Line In / MIC In
Audio Output
Ethernet / SDI / HDMI
Audio Compression Format
G.711
Control Interface
RS-232 / RS-422 / Ethernet / Remote
Control Protocol
VISCA / VISCAIP / PELCO D / ONVIF
IR Pass-Through
Yes
IR Receiver
Yes
IR Remote Control
Yes
DC In
12V +/- 20%
Power Consumption
PoE: 18W
DC In: 16W
Weight
4.4 lbs (2 kg)
Dimensions
6.9" x 7.5" x 7.3"
(174 x 190 x 187 mm )
Package Contents
Instruction for installation
Remote Control
Power Cord
Power Adapter
RS-422 Connector
Metal Plate A
Metal Plate B
M3 Screws
