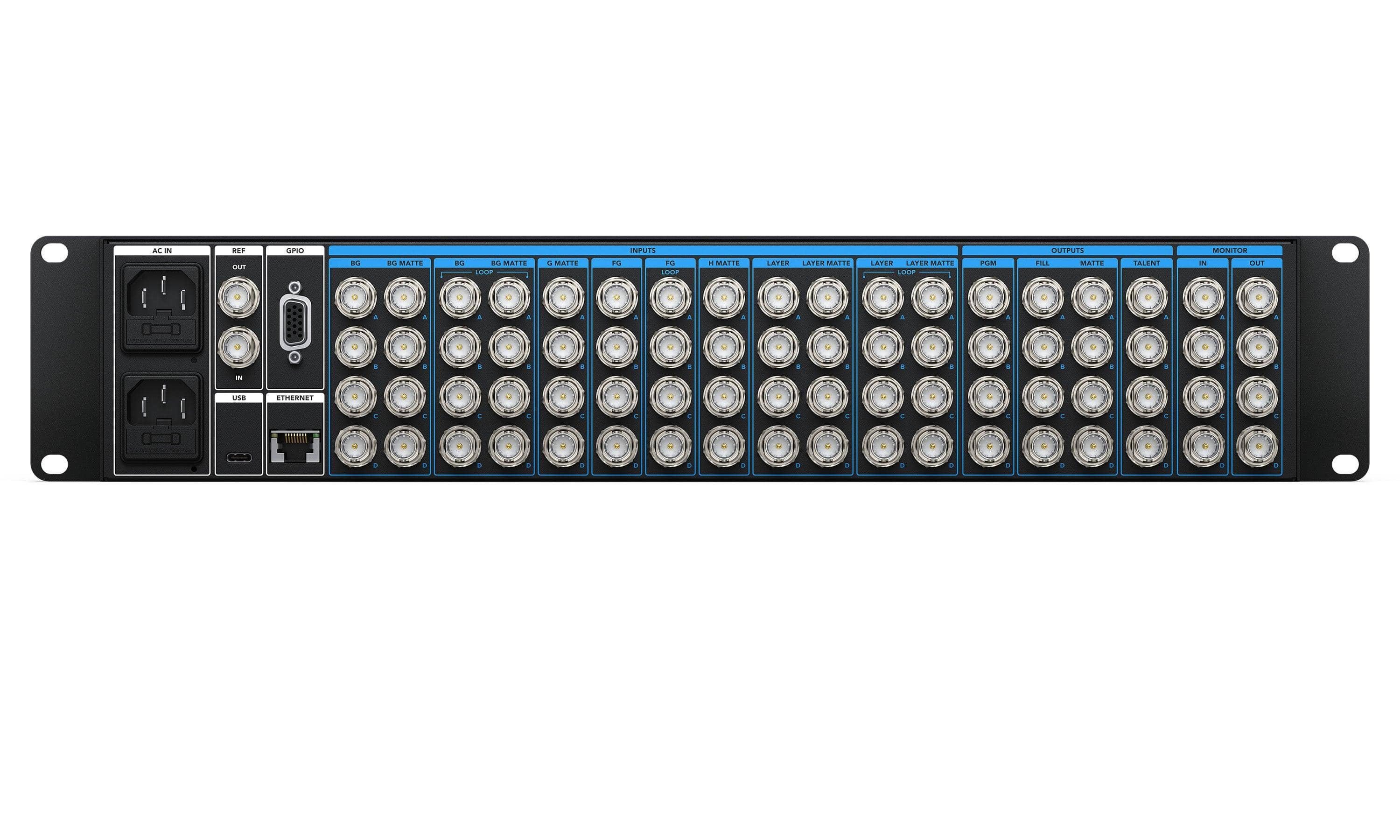

SDI Video Inputs
32

SDI Video Outputs
20

SDI Video Loop Outputs
20
reclocked SD, HD, Ultra HD, 8K for corresponding inputs.

SDI Rates
270Mb, 1.5G, 3G, 6G, 12G.

Video Input Re-Sync
On all inputs.

Reference Connections
1 x BNC In, 1 x BNC Out.
Tri-Sync or Black Burst.

GPIO
DE15

Ethernet
Up to 10Gb/s for device control and loading stills into Media Pool.

Computer Interface
1 x USB-C 3.0 for device configuration and software updates.

SD Video Standards
525i59.94 NTSC, 625i50 PAL

HD Video Standards
720p50, 720p59.94, 720p60
1080i50, 1080i59.94, 1080i60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30

Ultra HD Video Standards
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60

8K Video Standards
4320p23.98, 4320p24, 4320p25, 4320p29.97, 4320p30, 4320p50, 4320p59.94, 4320p60

SDI Compliance
SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M level A and B, SMPTE 2081-1, SMPTE 2081-10, SMPTE 2082-1, SMPTE 2082-10, SMPTE 2081-12, SMPTE 2082-11 and SMPTE 2082-12.

Video Sampling
4:2:2

Color Precision
10-bit

Color Space
REC 601, REC 709, REC 2020.

Multiple Rate Support
Auto detection of SD, HD, 6G‑SDI, 12G-SDI, 2SI Quad Link 12G‑SDI, 2SI Dual Link 12G‑SDI and 2SI Quad Link 6G‑SDI.

Foreground
4 x 12G-SDI In with Loop Out

Background
4 x 12G-SDI In with Loop Out
Still from Media Pool

Background Matte
4 x 12G-SDI In with Loop Out
Internal Window
Still from Media Pool

Garbage Matte
4 x 12G-SDI In
Internal Window
Still from Media Pool

Holdout Matte
4 x 12G-SDI In
Internal Window
Still from Media Pool

Layer
4 x 12G-SDI In with Loop Out
Still from Media Pool

Layer Matte
4 x 12G-SDI In with Loop Out
Internal Window
Still from Media Pool

Fill
4 x 12G-SDI

Matte
4 x 12G-SDI

Program
4 x 12G-SDI

Talent
4 x 12G-SDI

Monitor In
4 x 12G-SDI
for monitor cascade

Monitor Out
4 x 12G-SDI
For monitoring Program, Foreground Input, Background Input, Combined Matte, Internal Matte, Fill Out, Layer Input, Background Matte Input, Garbage Matte Input, Holdout Matte Input, Layer Matte Input, Processed Layer Matte, Processed Holdout Matte, Processed Garbage Matte, Processed Background Matte, Screen Correction.

Background Still Image Formats
TGA, TIFF, BMP, PNG, JPG.

Background with Alpha Still Image Formats
TGA, TIFF, BMP.

Layer Image Still Image Formats
TGA, TIFF, BMP, PNG, JPG.

Layer with Alpha Still Image Formats
TGA, TIFF, BMP.

Garbage Matte Still Image Formats
TIFF, BMP, PNG, JPG.

Holdout Matte Still Image Formats
TIFF, BMP, PNG, JPG.

Media Pool Memory
6GB non-volatile internal storage.

Built in 5 inch color display for device name, video preview, audio meters and menus.

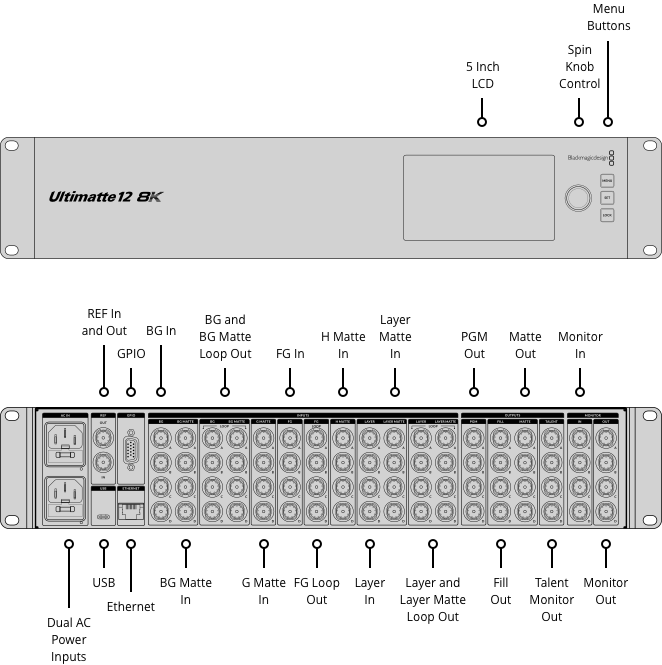

Front Panel
5 inch color display with 3 menu buttons and spin knob.

Control Connection
Network or direct Ethernet connection to a computer running Ultimatte Software Control or Ultimatte Smart Remote 4.

Software Control
Ultimatte Software Control
supported on Mac™ or Windows™ computers.

Hardware Control Panel
Ultimatte Smart Remote 4

Custom Control
Ethernet protocol and GPIO pin out included in the

Software Updates
Using USB‑C or Ethernet connection to Mac™ or Windows™ computers.

Configuration
Ultimatte IP address is set via the front panel or Ultimatte setup utility connected via USB.

Power Supply
2 x Internal 100-240V AC, 50/60Hz

Power Usage
218W

Optional Accessories
Ultimatte Smart Remote 4

Operating Temperature
0° to 40°C (32° to 104°F)

Storage Temperature
-20° to 60°C (-4° to 140°F)

Relative Humidity
0% to 90% non-condensing.

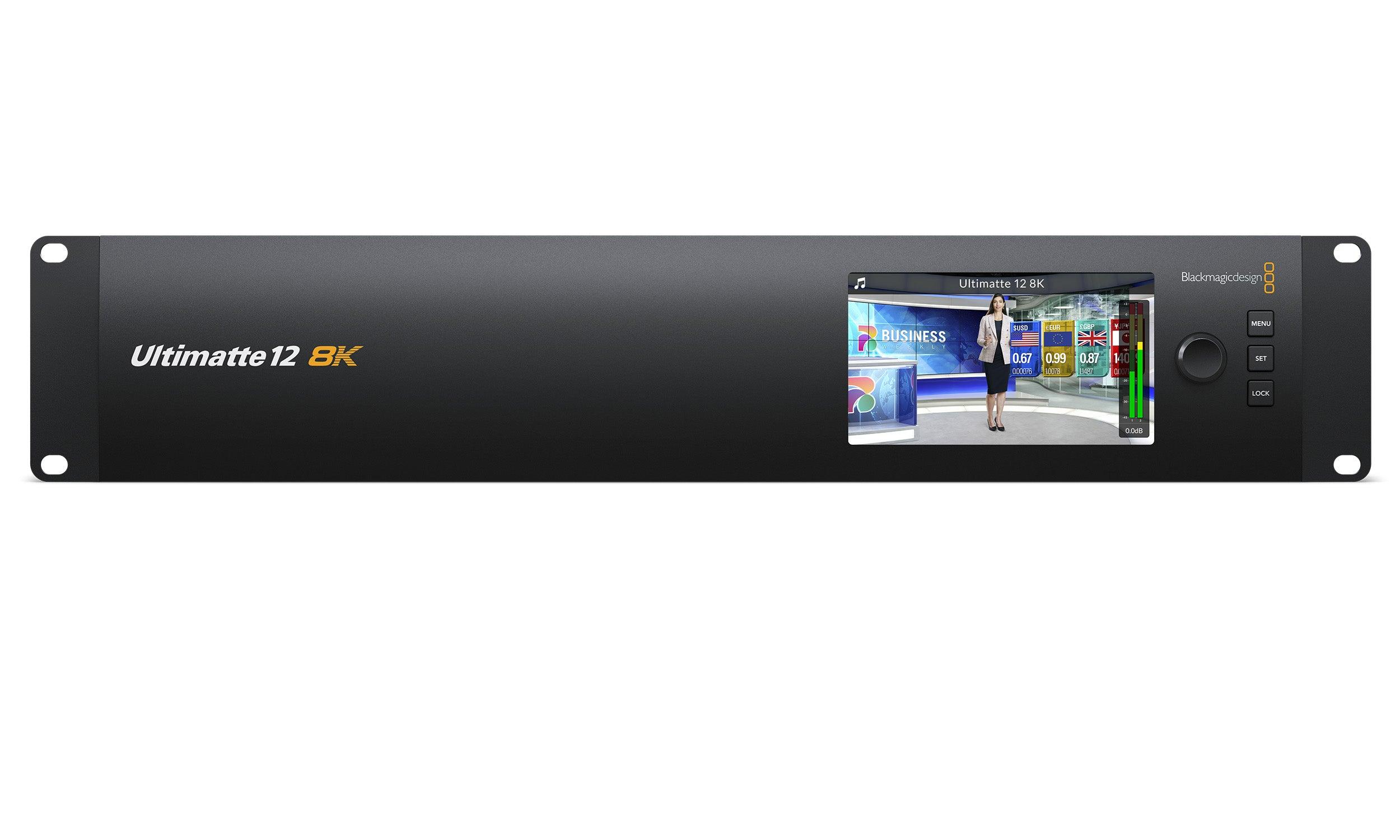

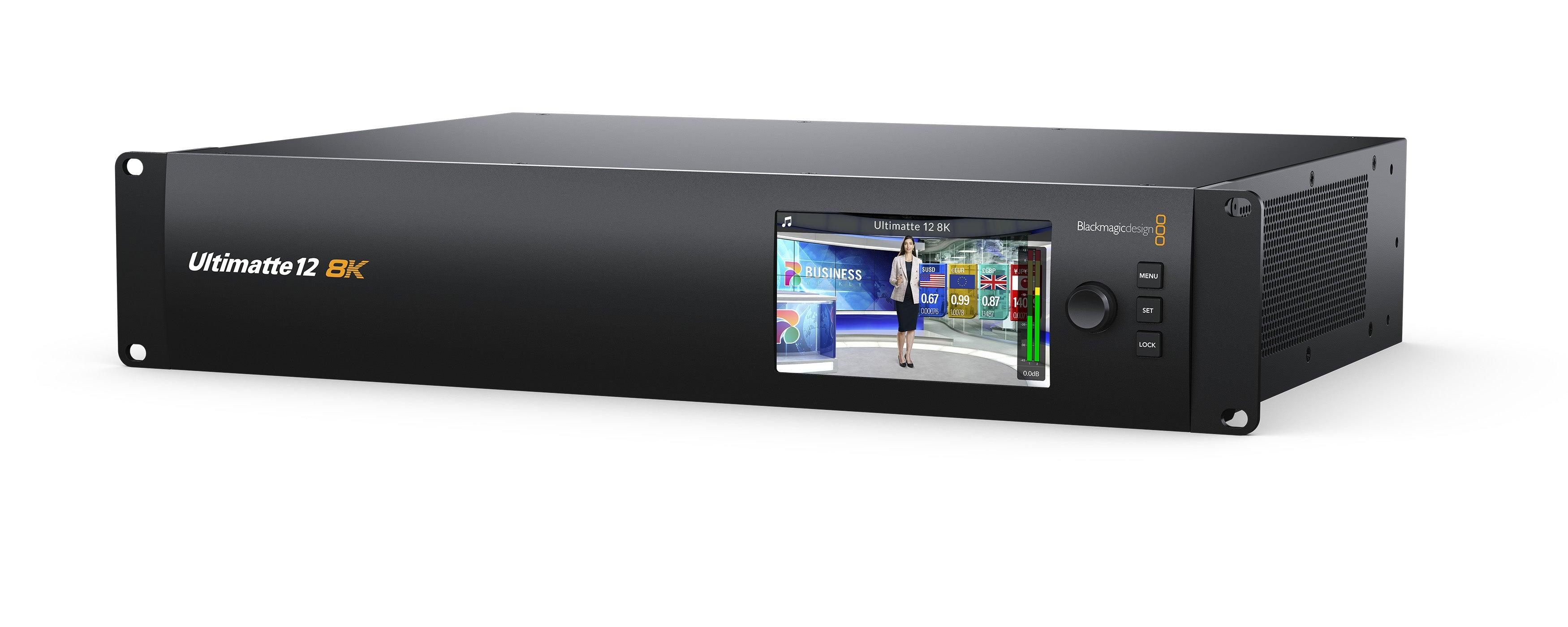

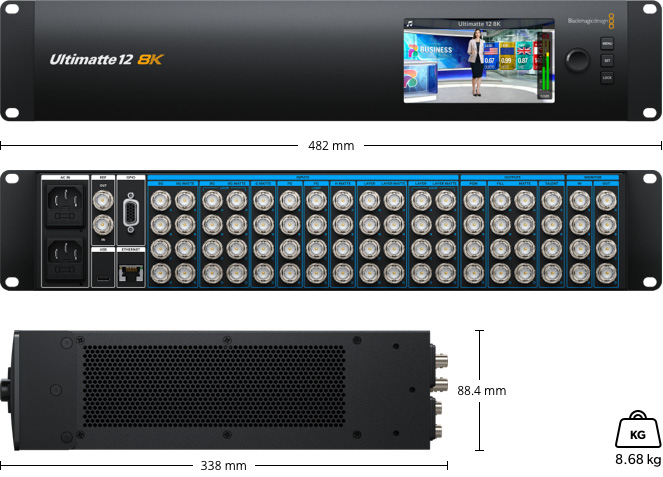

Ultimatte 12 8K

Welcome wallet with QR code for software download
