Add tally to your ATEM switcher with Blackmagic Design's GPI and Tally Interface! With 8 contact closure tally outputs, you can send a tally signal to your cameras, replay machines and monitors so everyone knows which camera is 'on-air'! If you need more tally outputs, simply connect multiple GPI and Tally Interfaces together because it connects via Ethernet to your ATEM production switcher.
Connections

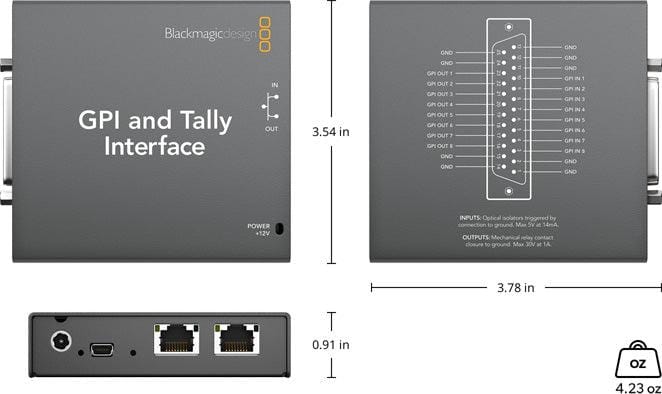

25 pin D-type connector providing 8 opto isolated inputs and 8 relay contact closure outputs.
1 x USB 2.0 high speed interface for configuration and firmware updates.
Optical isolators triggered by connection to ground. Max 5V at 14mA.
Mechanical relay contact closure to ground. Max 30V at 1A.
10/100 BaseT with loop through for connecting to other ethernet enabled equipment.
Software
Configured via ATEM Switcher Utility.
Firmware built into software driver. Loaded at system startup or via updater software.
Operating Systems
Mac 13.0 Ventura,
Mac 14.0 Sonoma or later.
Windows 10 and 11.
Power Requirements
12V power supply included with international socket adaptors for all countries.
Physical Specifications
Environmental Specifications
0° to 40° C (32° to 104° F)
-20 - 60 degrees celsius
Up to 95%
What's Included
GPI and Tally Interface
Software CD
Power Supply
Warranty
1 Year Limited Manufacturer’s Warranty.
