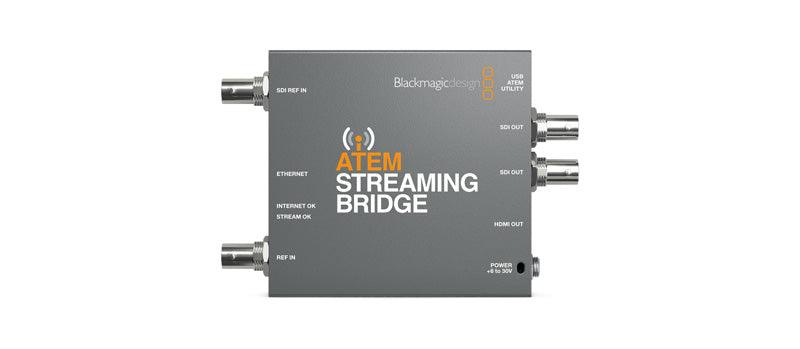

The ATEM Streaming Bridge is a video converter that lets you receive a H.264 stream from any ATEM Mini Pro and convert it back to SDI and HDMI video. This means you can send video to remote locations around your local Ethernet network, or via the internet globally! That's possible because it uses advanced H.264 codecs for higher quality at very low data rates. Imagine broadcasters and bloggers collaborating on shows and creating global networks of ATEM Mini Pro remote broadcast studios. Setup is easy as the ATEM software utility can create setup files that you can email to remote ATEM Mini Pro studios. ATEM Streaming Bridge is the perfect way to use ATEM Mini Pro as a remote broadcast studio!

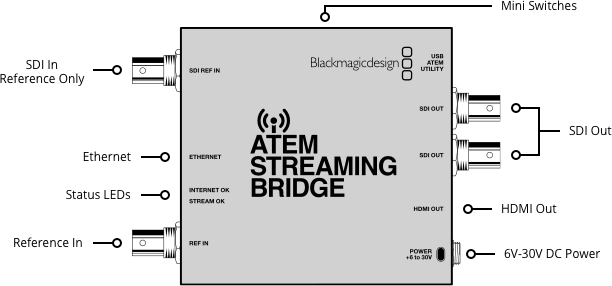

Connections
1 x 3G-SDI
2 x 3G-SDI
2 Channels embedded in HD-SDI.
HDMI type A out.
2 Channels embedded in HDMI.
1.5G, 3G.
Black burst and Tri‑Sync.
Ethernet supports 10/100/1000 BaseT.
1 x USB Type-C for software configuration and software updates.
Standards
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080i50, 1080i59.94, 1080i60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M‑B, SMPTE 425 Level A and Level B.
4:2:2
Television standard sample rate of 48 kHz and 24 bit.
10-bit
YUV
Streaming
ATEM Streaming Bridge supports video input streamed over ethernet from ATEM Mini and ATEM SDI models.
RTMP (Web Presenter, ATEM Mini, ATEM SDI)
SRT (Web Presenter)
Software
Internal software upgrade via updater application.
