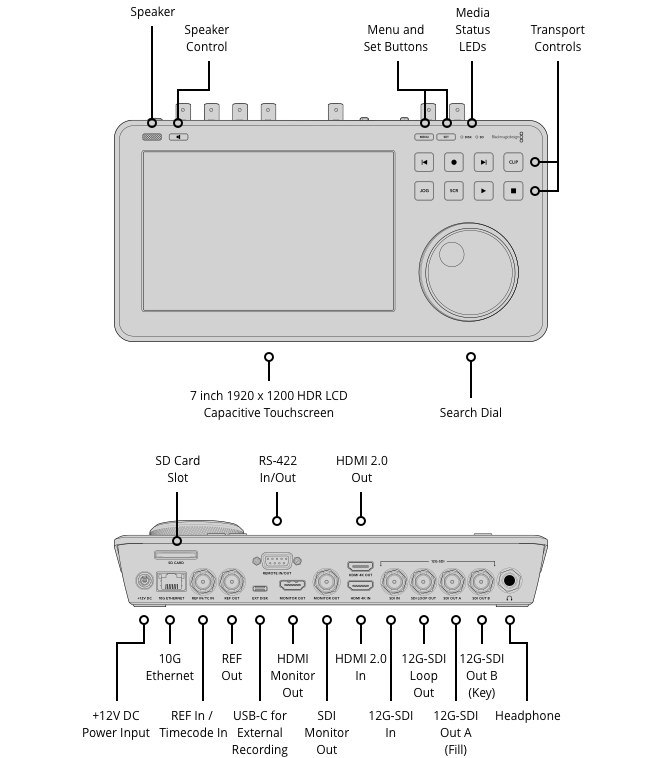

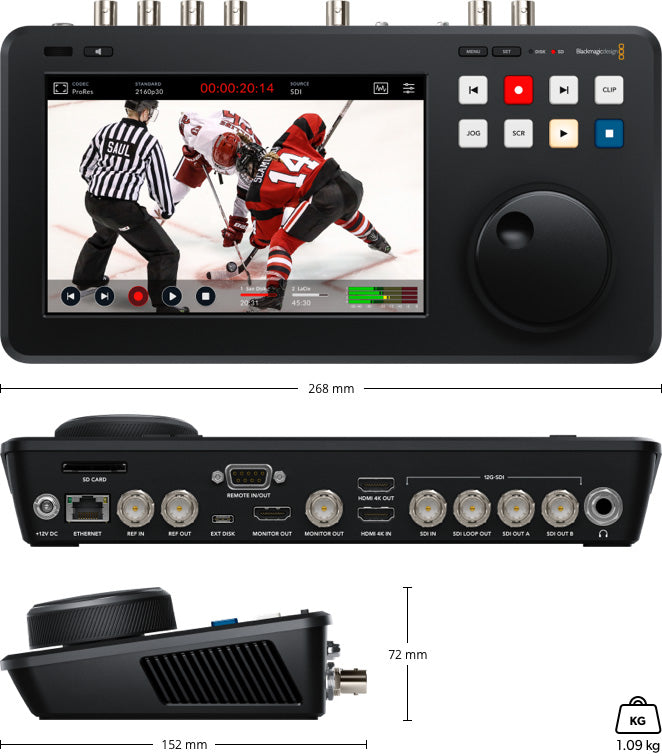

HyperDeck Shuttle 4K Pro is an advanced recorder and player with a large 7" LCD touchscreen for monitoring and scopes. The large search dial and broadcast controls are perfect for scrolling through media to find the media you want to play. 12G-SDI connections allow you to connect to professional broadcast equipment. Supports HDMI 4K, H.264, H.265, ProRes or DNx files, HD proxies, scopes, 3D LUT and network recording via fast 10G Ethernet.
Connections
1
1
2
1
270Mb, 1.5G, 3G, 6G, 12G.
1
1
1
Mono
1 x 6.35 mm headphone jack
7 inch LCD.
1 x BNC In,
Tri-Sync/Black Burst and Timecode.
1 x BNC Out.
Tri-Sync or Black Burst.
64 channels embedded audio.
64 channels embedded audio.
8 channels embedded audio.
8 channels embedded audio.
1 x RS-422 In.
Via user interface on HDMI Out orBlackmagic HyperDeck Ethernet Protocol.
1 x 10Gb/s RJ‑45 connector supporting 1000/10G BASE‑T.
1 x USB-C 3.1 Gen 1 (up to 5Gb/s) for external disk recording.
1 x USB-C for software updates.
Standards
525i59.94 NTSC, 625i50 PAL
720p50, 720p59.94, 720p60
1080i50, 1080i59.94, 1080i60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI
SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M level A and B, SMPTE 2081‑1, SMPTE 2081‑10, SMPTE 2082‑1, SMPTE 2082‑10, SMPTE 2084 and SMPTE 2108‑1.
Television standard 24‑bit, 48 kHz sample rate.
525i59.94 NTSC, 625i50 PAL,
720p50, 720p59.94, 720p60,
1080i50, 1080i59.94, 1080i60,
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60,
2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI,
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60,
4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI
Television standard 24‑bit, 48 kHz sample rate.
4:2:2 YUV
REC 601, REC 709, REC 2020.
33 point 3D LUTS can be applied to SDI monitor out.
Hybrid Log‑Gamma, ST2084 300, ST2084 500, ST2084 800, ST2084 1000, ST2084 2000, ST2084 4000, ST2084.
Auto detection of SD, HD, 6G‑SDI and 12G‑SDI.
HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content.
Media
2TB M.2 PCIe NVMe card for cache recording up to 16Gb/s included. Slot supports 60mm 80mm and 110mm cards.
1 x SD card slot
1 x USB‑C 3.1 Gen 1 expansion port for external recording of SD, HD, 2K DCI, Ultra HD and 4K DCI.
Please click here for a summary of compatible media.
UHS-I and UHS-II SD cards.
Can format media to ExFAT (Windows/Mac)or HFS+ (Mac) file systems.
Supported Codecs
ProRes HQ QuickTime, ProRes 422 QuickTime, ProRes LT QuickTime, ProRes Proxy QuickTime for all formats up to 2160p60.
Playback only of ProRes 4444 QuickTime up to 2160p60 with auto routing of fill and key over SDI A and B outputs.
DNxHD 220x, DNxHD 220x MXF, DNxHD 145, DNxHD 145 MXF, DNxHD 45, DNxHD 45 MXF for 720p and 1080p HD formats up to 60fps.
DNxHR HQX, DNxHR HQX MXF, DNxHR SQ, DNxHR SQ MXF, DNxHR LB, DNxHR LB MXF for 2K DCI and 2160p formats up to 60fps.
H.265 High 4:2:0 10‑bit, H.265 Medium 4:2:0 10‑bit, H.265 Low 4:2:0 10‑bit for all 2160p formats up to 60 fps.
H.264 SDI 4:2:2 10‑bit, H.264 High 4:2:0 8‑bit, H.264 Medium 4:2:0 8‑bit, H.264 Low 4:2:0 8‑bit for all formats up to 1080p60.
AAC 2 Channels.
PCM 2, 4, 8, 16, 32 or 64 Channels.
Scopes
Waveform, RGB Parade, Vector and Histogram scopes in broadcast quality 10-bit.
Picture in picture, picture overlay with opacity control. Waveform and RGB parade with standard and HDR graticules and Vector with zoom.
Control
Integrated capacitive touchscreen LCD with onscreen controls for settings and navigating menus. 11 buttons for transport and device control with search dial
11 buttons for transport and device control with search dial.
Teleprompter
Outputs 23.98p, 24p, 25p, 29.97p, 30p, 50p, 59.94p, 60p defaulting to the highest rate.
Rich text (.rtf) with support for most rich text formatting. Plain text (.txt)
Software
Blackmagic OS
Blackmagic HyperDeck Setup
Loaded at system start, or via Blackmagic HyperDeck Setup using USB port.
Operating Systems
Mac 14.0 Sonoma,
Mac 15.0 Sequoia or later.
Windows 10 and 11.
Displays
Built in LCD for video, audio and timecode monitoring and menu settings.
Power Requirements
1 x Locking 5.5mm barrel 12V DC Infor external power supply or battery use.
60 W max.
Physical Specifications
Environmental Specifications
0° to 40° C (32°to 104° F)
-20° to 60° C (-4° to 140° F)
0% to 90% non‑condensing
What's Included
HyperDeck Shuttle 4K Pro 2TB
2TB M.2 PCIe NVMe cache recording storage
12V universal power supply with international socket adapters
Warranty
1 Year Limited Manufacturer’s Warranty.
