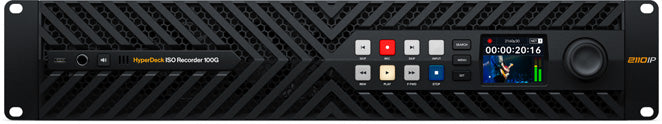

HyperDeck ISO Recorder 100G is designed for live production, recording 8 cameras at the same time. Record for later editing or get exciting live-action replay with DaVinci Resolve! Files are recorded in broadcast-quality ProRes format direct to network storage for very long record durations. It connects via SMPTE-2110 100G Ethernet, so all 8 video channels run over a single connection. Or add a Blackmagic SDI Expander 8x12G for 12G-SDI. You can also play back all 8 channels, great for testing!

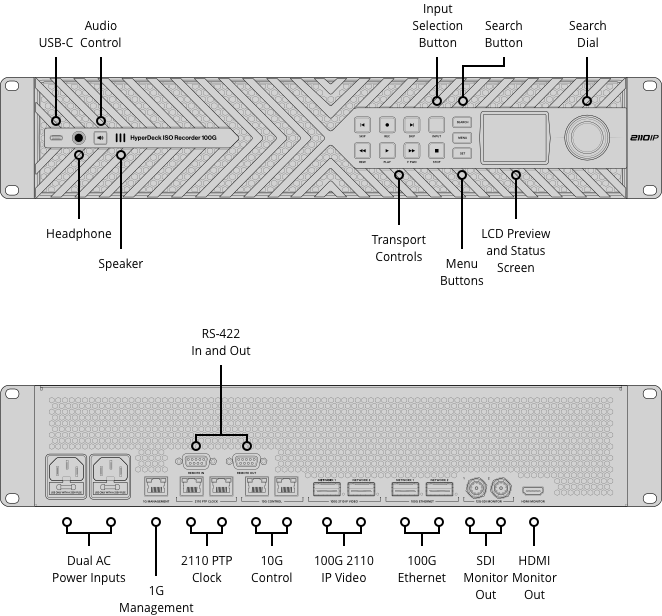

Connections
2 x 100G QSFP28 connections.
Supports ST 2022-7 redundant delivery of IP streams over two 2110 networks.
8 x Ultra HD or 8 HD
2 x 100G QSFP28 connections.
2 x 10G RJ45 Ethernet for NMOS control.
2 x RJ45 Ethernet for 2110 PTP clock.
1 x RJ45 Ethernet. Supports 10/100/1000 BASE-T. For HyperDeck Setup utility and software updates.
2
1
1.5G, 3G, 6G, 12G.
1 x 6.35 mm headphone jack.
16 Ch embedded audio on each 2110 IP video stream over 100G Ethernet.
16 Ch embedded audio on each 2110 IP video stream over 100G Ethernet.
16 channels embedded audio.
8 channels embedded audio.
1 x USB-C for HyperDeck Setup utility and software updates.
2 x IEC C14 power inputs.
Standards
720p50, 720p59.94, 720p60
1080i50, 1080i59.94, 1080i60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI
SMPTE 2110‑20, SMPTE 2110‑21, SMPTE 2110‑30, SMPTE 2110‑40, SMPTE 2022-7, SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M level A and B, SMPTE 2081‑1, SMPTE 2081‑10, SMPTE 2082‑1, SMPTE 2082‑10, SMPTE 2084, SMPTE 2108‑1.
720p50, 720p59.94, 720p60
1080i50, 1080i59.94, 1080i60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
Television standard 24‑bit, 48 kHz sample rate.
4:2:2 YUV
10-bit
Rec. 709, Rec. 2020.
Hybrid Log‑Gamma, ST2084 300, ST2084 500, ST2084 800, ST2084 1000, ST2084 2000, ST2084 4000, ST2084.
IP Video Compliance
IGMP v2
Sender: Narrow
Receiver: Narrow, Wide Synchronous, Asynchronous
Audio Conformance level: Level C
Full access to entire SMPTE ancillary data stream. Includes RP 188/SMPTE 12M-2, closed captioning and HDR static metadata.
Blackmagic IP10 codec optional for 2160p59.94 and 2160p60 as 2110 IP video.
IEEE 1588-2008 (PTP v2)
ST 2059-1
ST 2059-2
v1.3.2
Peer-to-peer via mDNS/DNS-SD
v1.1.2
Natural Grouping
Receiver capabilities
Audio
Front panel headphone outputs active monitor.
Front panel mono speaker outputs active monitor.
Front panel button functions as single press for momentary speaker ON, double press for speaker ON / OFF plus press and hold for volume control using search dial.
Processing
Built-in hardware encoder supports up to 8 x Ultra HD simultaneous real-time ProRes encoding.
Media
Records over 100G Ethernet to network storage.
Supported Codecs
ProRes HQ QuickTime, ProRes 422 QuickTime, ProRes LT QuickTime, ProRes Proxy QuickTime for all formats up to 2160p60.
AAC 2 Channels.
PCM 2, 4, 8 or 16 Channels.
Control
16 buttons for transport and device control with search dial featuring electronic clutch and 2.2 inch color display.
RS-422 deck control, 2110 IP video start/stop, timecode run. Includes Blackmagic HyperDeck Ethernet Protocol. Supports remote FTP and HTTP Web Media Manager.
Displays
Built in 2.2 inch LCD for monitoring video, audio, video standard and timecode plus menu settings. Use search dial to scrub between all available inputs and monitor on front panel.
Software
Blackmagic OS
Blackmagic HyperDeck Setup
Loaded at system start, or via Blackmagic HyperDeck Setup using USB port.
Operating Systems
Mac 15.0 Sequoia,
Mac 26.0 Tahoe or later.
Windows 11
Power Requirements
2 x 100 ‑ 240V AC 50/60Hz internal power supplies.
2 x IEC C14 sockets.
TBC
Accessories
HyperDeck Extreme Control
Blackmagic Cloud Store Ultra
Physical Installation
2 rack units height.

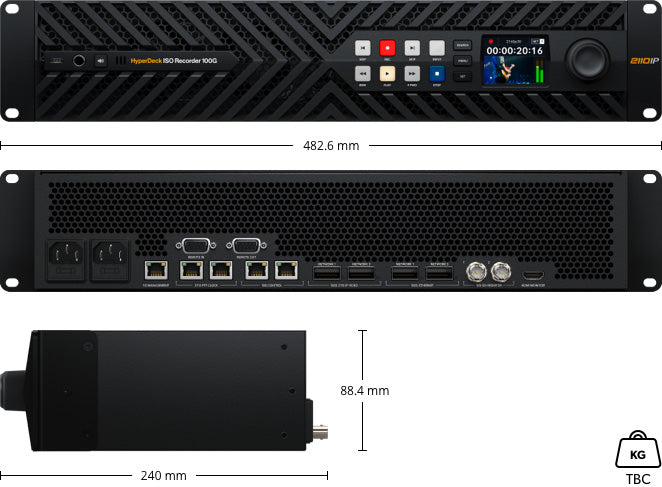

Physical Specifications
Environmental Specifications
0° to 40° C (32° to 104° F)
-20° to 45° C (-4° to 113° F)
0% to 90% non‑condensing
What's Included
HyperDeck ISO Recorder 100G
Welcome wallet with QR code for software download
