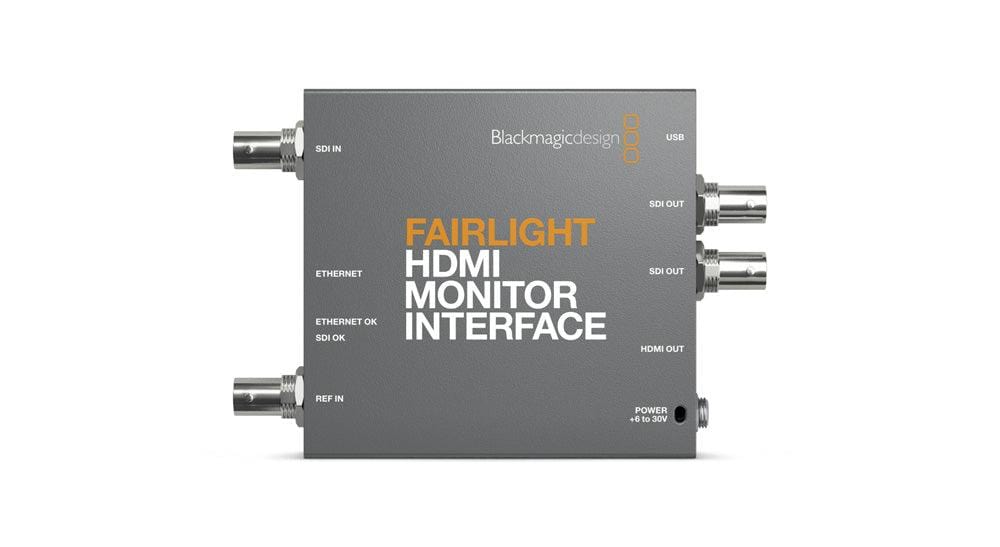

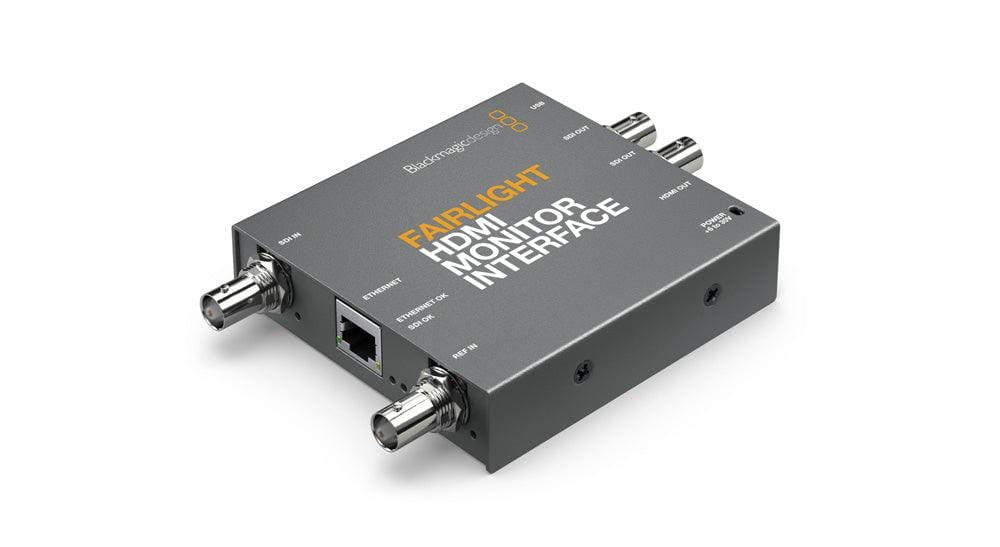

If you are using the Fairlight Console components in your own custom desk with HDMI monitors, you can use Fairlight HDMI Monitor Interface to generate the graphical feedback from Fairlight Console Channel Control! This compact converter can be placed discretely on the back of your HDMI monitor and converts the Fairlight console ethernet data to HDMI. You get instant graphic feedback for the channel control status just as you would with the Fairlight Console LCD Monitor! The interface input can also be switched to SDI so you can see the talent up close for checking lip sync while editing, and an SDI output that mirrors the HDMI output lets you connect the interface to a remote SDI monitor!
Ethernet
Ethernet supports 10/100/1000 BaseT.
HDMI Video Output
HDMI Type A out.
SDI Inputs
1 x 3G‑SDI
SDI Video Outputs
2 x 3G‑SDI
SDI Rates
1.5G, 3G.
Updates and Configuration
1 x USB Type‑C for software configuration and software updates.
Ethernet supports 10/100/1000 BaseT.
HDMI Video Output
HDMI Type A out.
SDI Inputs
1 x 3G‑SDI
SDI Video Outputs
2 x 3G‑SDI
SDI Rates
1.5G, 3G.
Updates and Configuration
1 x USB Type‑C for software configuration and software updates.
HDMI Video Standards
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
SDI Video Standards
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080i50, 1080i59.94, 1080i60
SDI Compliance
SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M‑B, SMPTE 425 Level A and Level B.
SDI Video Sampling
4:2:2
SDI Color Precision
10-bit
SDI Color Space
YUV
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
SDI Video Standards
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080i50, 1080i59.94, 1080i60
SDI Compliance
SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M‑B, SMPTE 425 Level A and Level B.
SDI Video Sampling
4:2:2
SDI Color Precision
10-bit
SDI Color Space
YUV
Internal software upgrade via updater application
Fairlight Studio and Console setup utility software when connected by USB.
Power Supply
+12V universal power supply included with international socket adapters for most countries.
Power Consumption
6W max.
Operational Voltage Range
6 - 30V DC.
+12V universal power supply included with international socket adapters for most countries.
Power Consumption
6W max.
Operational Voltage Range
6 - 30V DC.
Operating Temperature
0° to 40°C (32° to 104°F)
Storage Temperature
-20° to 60°C (-4° to 140°F)
Relative Humidity
0% to 90% non-condensing
0° to 40°C (32° to 104°F)
Storage Temperature
-20° to 60°C (-4° to 140°F)
Relative Humidity
0% to 90% non-condensing
Fairlight HDMI Monitor Interface
12V universal power supply with international socket adapters for most countries.
12V universal power supply with international socket adapters for most countries.
1 x USB Type‑C for software configuration and software updates.
1 Year Limited Manufacturer's Warranty.
