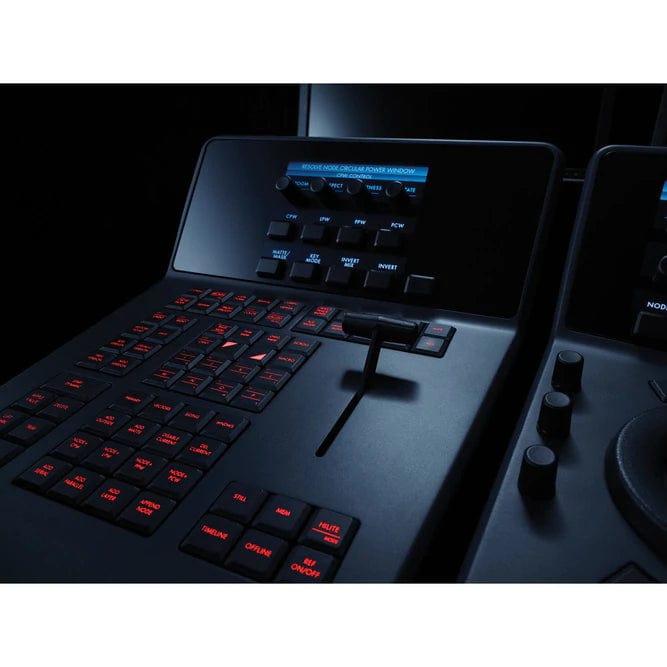

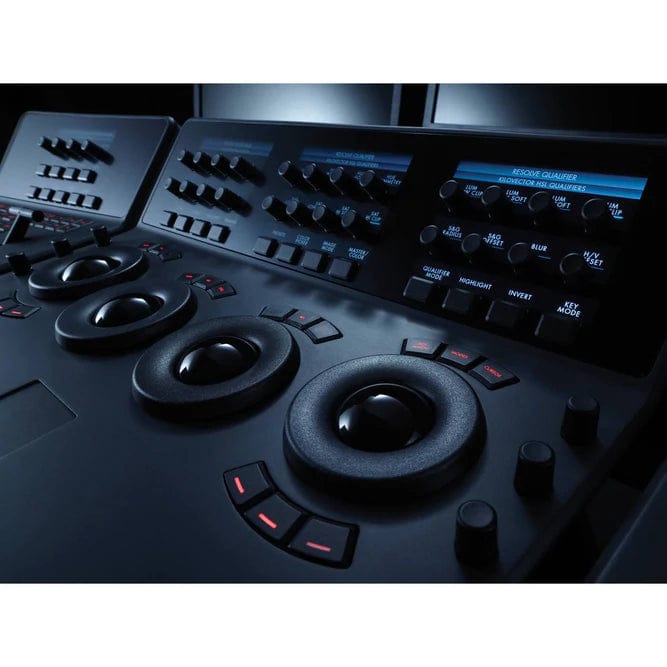

Designed with three ergonomically connected control surfaces and a pull out keyboard, DaVinci Resolve Advanced Panel gives you complete command of every color grading session! Each correction control has a separate soft key, knob, high resolution weighted trackball or ring so you can experiment quicker to create a wider range of looks!
Computer Interface
USB Type‑B connector on each panel.
USB Loop Out
2 x loop out USB Type‑A connectors for side panels.
USB Hub
2 x USB Type‑A connectors for a mouse and other USB devices.
Software Updates
USB Type Mini‑B connectors on each panel for factory software updates.
12V Power Input
Centre 3‑pin 3W3 D‑Sub connector on Trackball Panel.
3‑pin 3W3 D‑Sub connector on the Search Dial and T‑bar Panels.
12V Power Output
Left and right 3‑pin 3W3 D‑Sub connectors on Trackball Panel.
USB Type‑B connector on each panel.
USB Loop Out
2 x loop out USB Type‑A connectors for side panels.
USB Hub
2 x USB Type‑A connectors for a mouse and other USB devices.
Software Updates
USB Type Mini‑B connectors on each panel for factory software updates.
12V Power Input
Centre 3‑pin 3W3 D‑Sub connector on Trackball Panel.
3‑pin 3W3 D‑Sub connector on the Search Dial and T‑bar Panels.
12V Power Output
Left and right 3‑pin 3W3 D‑Sub connectors on Trackball Panel.
Power Supply
External 100 - 240V AC 1.5A 50/60Hz with IEC C14 mains input.
Power Usage
80W max.
External 100 - 240V AC 1.5A 50/60Hz with IEC C14 mains input.
Power Usage
80W max.
Operating Temperature
0° to 40°C (32° to 104°F)
Storage Temperature
-20° to 60°C (-4° to 140°F)
Relative Humidity
0% to 90% non-condensing
0° to 40°C (32° to 104°F)
Storage Temperature
-20° to 60°C (-4° to 140°F)
Relative Humidity
0% to 90% non-condensing
DaVinci Resolve Advanced Trackball Panel
DaVinci Resolve Advanced Search Dial Panel
DaVinci Resolve Advanced T-bar Panel
DaVinci Resolve Advanced Panel Dongle
DaVinci Resolve Studio Activation Key
12V Power Supply with IEC C14 Mains Inlet
2 x 1m 3‑pin Inter Panel Power Cables
3 x 2m USB Type‑A to Type‑B Cables
DaVinci Resolve Advanced Search Dial Panel
DaVinci Resolve Advanced T-bar Panel
DaVinci Resolve Advanced Panel Dongle
DaVinci Resolve Studio Activation Key
12V Power Supply with IEC C14 Mains Inlet
2 x 1m 3‑pin Inter Panel Power Cables
3 x 2m USB Type‑A to Type‑B Cables
1 Year Limited Manufacturer's Warranty.
