The ideal solution for converting analog component, s-video, NTSC/PAL composite to SDI video. Audio can be embedded from balanced analog or AES/EBU inputs. Now you can convert analog devices such as Betacam SP, VHS, set top boxes, gaming consoles and HDV cameras to incredible quality SD/HD-SDI video.
Connections
2 x SDI Video Outputs.
NTSC, PAL, S‑Video and Component SD/HD input.
2 channels of balanced analog audio.
2 channels of balanced AES/EBU audio.
Auto detection of SD or HD.
Via USB 2.0 high speed. (480 Mb/s)
Yes
Standards
525i59.94 NTSC, 625i50 PAL
720p50, 720p59.94, 720p60
1080i50, 1080i59.94, 1080i60
SMPTE 259M, SMPTE 292M, SMPTE 296M, ITU‑R BT.656 and ITU‑R BT.601.
4:2:2
Television standard sample rate of 48 kHz and 24 bit.
4:2:2
YUV
Automatically follows format of analog input.
YUV
4:2:2
Software
Mac™ and Windows™ software upgrade via USB.
Via included updater application.
Power Requirements
+12V universal power supply included with international socket adapters for most countries. Cable tie point.
6.50 Watts
12 ‑ 31V DC
Settings Control
Mini Switches or USB software.
Operating Systems
Mac 10.15 Catalina,
Mac 11.1 Big Sur or later.
Windows 10, 64-bit.
Physical Specifications
Environmental Specifications
0° to 40° C (32° to 104° F)
-20° to 45° C (-4° to 113° F)
0% to 90% non‑condensing
What's Included

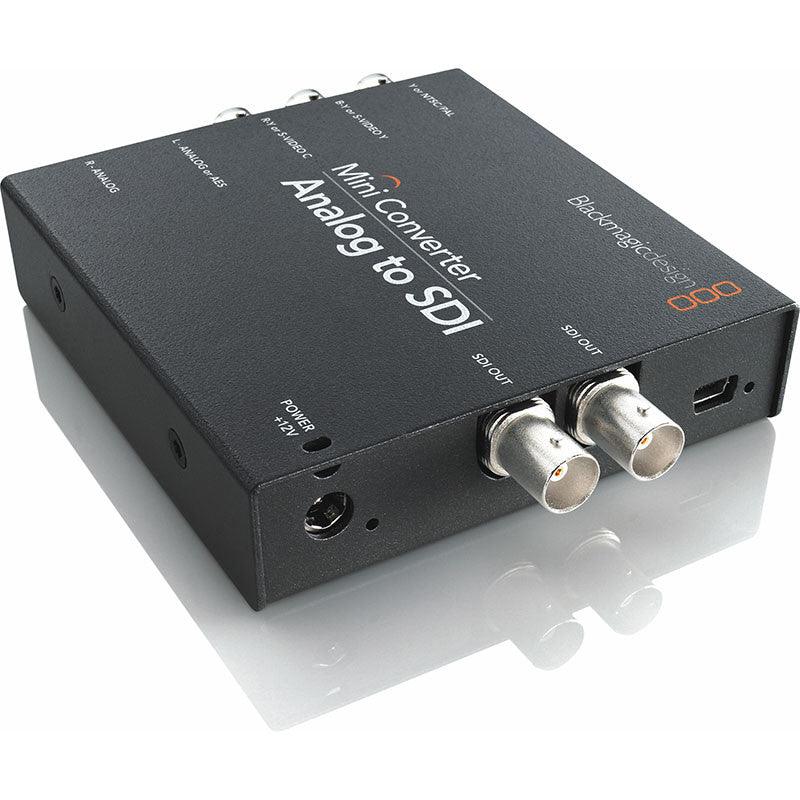

Mini Converter Analog to SDI
12V AC adapter with international socket adapters for all countries.
Warranty
3 Year Limited Manufacturer’s Warranty.
