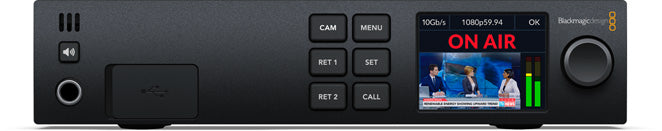

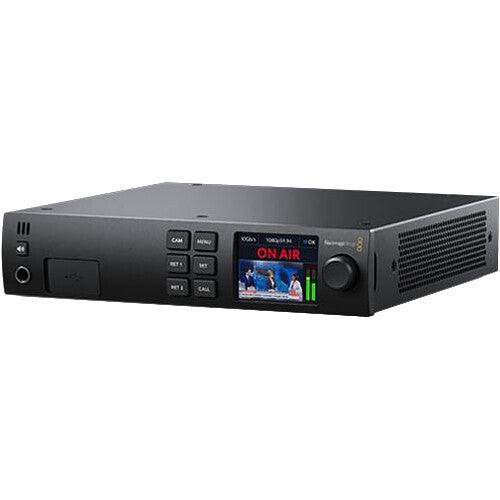

With 10G Ethernet on Blackmagic Studio Converter and Blackmagic Studio Camera Pro, you can connect all camera signals using one Ethernet IP link connection. That means the camera feed, return program feed, timecode, reference, tally, talkback and control are all sent down the single cable. That's the same benefits of SMPTE fiber, but the standard 10G copper Ethernet cable is much lower cost. The Blackmagic Studio Converter allows breakout of all the video, audio and talkback connections at the studio end. It also includes a massive power supply that powers the camera down the Ethernet cable, so you don't even need a power source near the camera!
Connections
2
2
1
1.5G, 3G, 6G, 12G.
Mono
2 channel analog Program audio in supported via 9‑pin connector.
1 x 6.35 mm headphone jack.
Return 1 with 2 channels of Program audio embedded in 1.5G/3G/6G/12G-SDI.
4 talkback channels on 13, 14, 15 and 16.
Return 2 with 2 channels of audio embedded in 1.5G/3G/6G/12G-SDI.
2 channels of Program audio embedded in 1.5G/3G/6G/12G-SDI.
4 talkback channels on 13, 14, 15 and 16.
1 x BNC In, 1 x BNC Out.
1 x BNC In, 1 x BNC Out.
Tri-Sync or Black Burst.
SDI channels 13 and 14 for Engineering talkback.
SDI channels 15 and 16 for Production talkback.
RJ-45 Talkback connector for analog external talkback systems.
2.2 inch LCD
1 x 10Gb/s PoE RJ‑45 Camera connector for SMPTE Fibre style workflow over Cat 6A network cable.
1 x 1Gb/s for external control and software updates.
1 x USB-C.
Standards
1080p23.98, 1080p24, 1080p25, 1080p29.97,
1080p30, 1080p50, 1080p59.94, 1080p60,
1080i50, 1080i59.94, 1080i60
2160p23.98, 2160p24, 2160p25, 2160p29.97,
2160p30, 2160p50, 2160p59.94, 2160p60
SMPTE 292M, SMPTE 424M, SMPTE 425M level A and B, SMPTE 2081‑1, SMPTE 2081‑10, SMPTE 2082‑1 and SMPTE 2082‑10.
Television standard sample rate of 48kHz and 24‑bit.
4:2:2
10-bit
REC 709, REC 2020.
SDI switches between HD, 3G-SDI, 6G-SDI and 12G-SDI.
Control
7 buttons with spin knob control and 2.2 inch color display for device control and menu settings.
RJ-45 1Gb/s Ethernet.
Software
Camera Utility for firmware update.
Operating Systems
Mac 13.0 Ventura,
Mac 14.0 Sonoma or later.
Windows 10 and 11.
Power Requirements
100 - 240V AC input.
1 x Internal 100 - 240V AC 50/60Hz.
40 W max plus camera power usage.
Optional Accessories
Blackmagic Universal Rack Shelf
Blackmagic Studio Camera 6K Pro
Blackmagic Studio Camera 4K Pro G2
Blackmagic Studio Camera 4K Pro
Physical Specifications
Environmental Specifications
0° to 40° C (32° to 104° F)
-20° to 45° C (-4° to 113° F)
0% to 90% non-condensing
What's Included
Blackmagic Studio Converter
Warranty
1 Year Limited Manufacturer’s Warranty.
