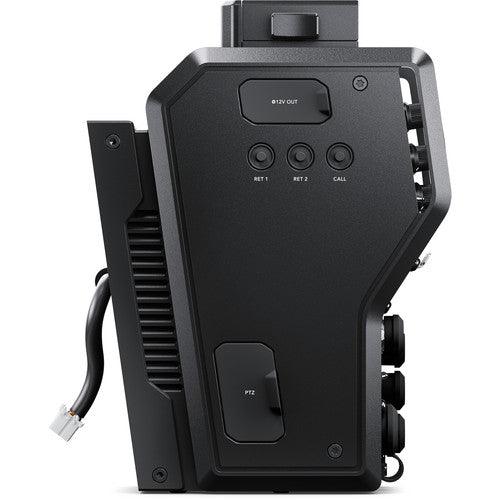

The Blackmagic Camera Fiber Converter lets you extend and power your URSA Broadcast from up to 2 km away using industry standard SMPTE fiber cables. It also includes common live camera controls with multiple channels of talkback and standard television industry talkback headset connections. The Blackmagic Camera Fiber Converter features 1 Ultra HD camera feed, plus 3 HD return feeds in a compact IP video based design.
Connections
1x SMPTE Hybrid Fiber Optic
with SMPTE 304 connector (Male).
1x 12G SDI for Camera feed.
1x 3G SDI for Camera return
feed, 3x 3G SDI for Return SDI Outputs.
2x 5-pin XLR for headset with three way
audio mixer per output, 1x Tracker output.
2x 3-pin XLR Inputs for AES,
Line or Mic input. Phantom Power available.
1x USB-C connector.
Standards
720p50, 720p59.94, 720p60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
1080i50, 1080i59.94, 1080i60
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p60
SMPTE 259M, SMPTE 292M, 296M,
372M, 424M Level B, 425M.
Television standard sample rate of 48Khz, 24 bit A/D conversion.
4:2:2
10-bit
REC 709, REC 2020.
SDI switches between HD,
3G-SDI, 6G-SDI and 12G‑SDI.
Software
Camera Utility for firmware update.
Operating Systems
Mac 13.0 Ventura,
Mac 14.0 Sonoma or later.
Windows 10 and 11.
Physical Specifications
Environmental Specifications
0° to 40° C (32° to 104° F)
-20° to 45° C (-4° to 113° F)
0% to 90% non‑condensing
What's Included
Blackmagic Camera Fiber Converter
Mounting Bracket and screws for attaching to URSA Mini and URSA Broadcast cameras
3x Short 12G SDI cables for SDI In and Out connectiong to URSA Mini and URSA Broadcast
Welcome wallet with QR code for software download
Warranty
1 Year Limited Manufacturer’s Warranty.
