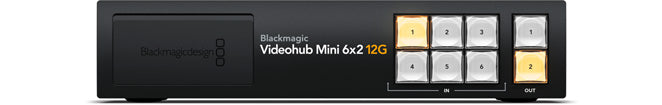

Blackmagic Videohub Mini 6x2 12G is a compact zero latency video router that supports any combination of SD, HD and Ultra HD on the router at the same time. It has 6 12G-SDI inputs and 2 12G-SDI outputs plus reference connections for locking clean switch outputs in a compact 1/2 rack width size. The front panel control panel lets you quickly route a video connection and even includes an emergency 12G-SDI connection for patching in external gear and USB-C webcam video out. It also features SDI re-clocking, external Ethernet control and supports all SDI video standards up to 2160p60.
Connections
6
Front panel input overrides rear input 6
2
Front panel output mirrors rear output 2
270Mb, 1.5G, 3G, 6G, 12G.
On all 6 inputs for clean switch.
On all SDI outputs.
Tri-Sync or Black Burst.
Reference terminating loop output.
USB‑C
Supports 10/100/1000 BASE‑T.
1 x USB Type‑C 3.1 Gen 1 for webcam out, software updates and Videohub Setup Utility connection.
Standards
720p50, 720p59.94, 720p60
1080i50, 1080i59.94, 1080i60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60
1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI, 2Kp47.95 DCI, 2Kp48 DCI, 2Kp50 DCI, 2Kp59.94 DCI, 2Kp60 DCI
2KPsF23.98 DCI, 2KPsF24 DCI, 2KPsF25 DCI, 2KPsF29.97 DCI, 2KPsF30 DCI
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60
4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp47.95 DCI, 4Kp48 DCI, 4Kp50 DCI, 4Kp59.94 DCI, 4Kp60 DCI
SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 425M level A and B, SMPTE 2081-1, SMPTE 2081-10, SMPTE 2082-10, ITU‑R BT.656 and ITU‑R BT.601
Television standard sample rate of 48kHz and 24‑bit.
YUV 4:2:2 and RGB 4:4:4
10, 12‑bit RGB 4:4:4 in all HD and 2K modes, Ultra HD modes up to 2160p30 and 4K modes up to 4Kp30 DCI. 10-bit YUV 4:2:2 in all modes.
REC 601, REC 709, REC 2020
Automatically selects between 270Mb SD‑SDI, 1.5G HD‑SDI, 3G level A and level B HD-SDI, 6G HD‑SDI and 12G‑SDI on each input so that each input can be running a different television standard.
Video payload identification ancillary data as per SMPTE 352M.
Control
8 x buttons
Includes Blackmagic Videohub software control panel for Mac and Windows. Supports Blackmagic Smart Control Pro and Blackmagic Master Control Pro hardware panels. Includes Blackmagic Videohub SDK and Ethernet Videohub Control Protocol.
Ethernet
Software
Router control included free for Windows™ and Mac™.
Via included updater application.
Operating Systems
Mac 14.0 Sonoma,
Mac 15.0 Sequoia or later.
Windows 10, 64-bit.
Windows 11.
Power Requirements
1 x Internal 100 - 240V AC 50/60Hz.
IEC power cable required. 1 x 12V DC input with reverse polarity protection.
18.5W max.

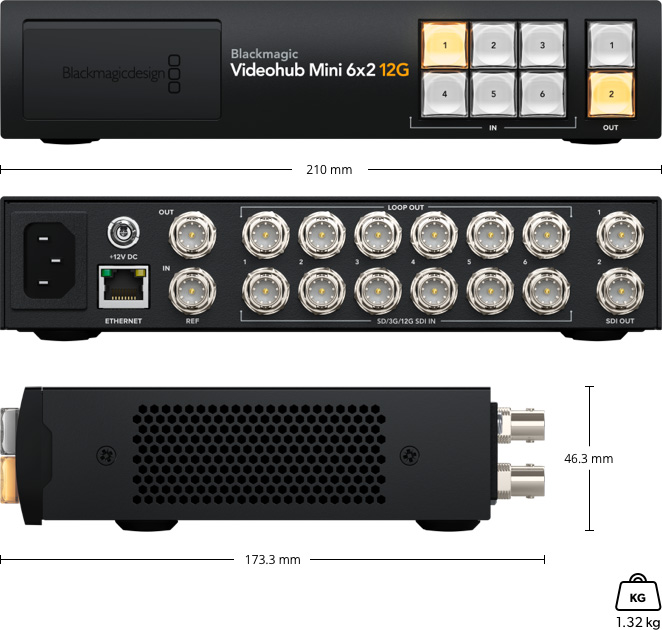

Physical Specifications
Environmental Specifications
0° to 40° C (32° to 104° F)
-20° to 60° C (-4° to 140° F)
0% to 90% non-condensing
What's Included
Blackmagic Videohub Mini 6x2 12G
Welcome wallet with QR code for software download
Warranty
1 Year Limited Manufacturer’s Warranty.
