Display Resolution
Full 1920 x 1080.
Frame Rates
Up to 60fps
Display Type
OLED
Display Pixels
6.22 Million Pixels
Color Precision
SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 425M 2084.
Focus
4 Element diopter.
Diopter Range
-4 to +3
Controls
Buttons for settings, short cut features and navigating menus.
Overlays
Built in overlay display processor and top mounted buttons.
Eyepiece
Can be tilted vertically and extended for left or right eye use.
Tally
LED tally light.
Mounting Options
Camera mount with adjustment.
Metadata Support
Detects camera information embedded in the SDI signal from URSA, URSA Mini and Blackmagic 3G-SDI Shield for Arduino.
- Description
- Connections
- Features
- Power Requirements
- Physical Specifications
- Environmental Specifications
- What's Included
- Recommended Accessories
- Warranty

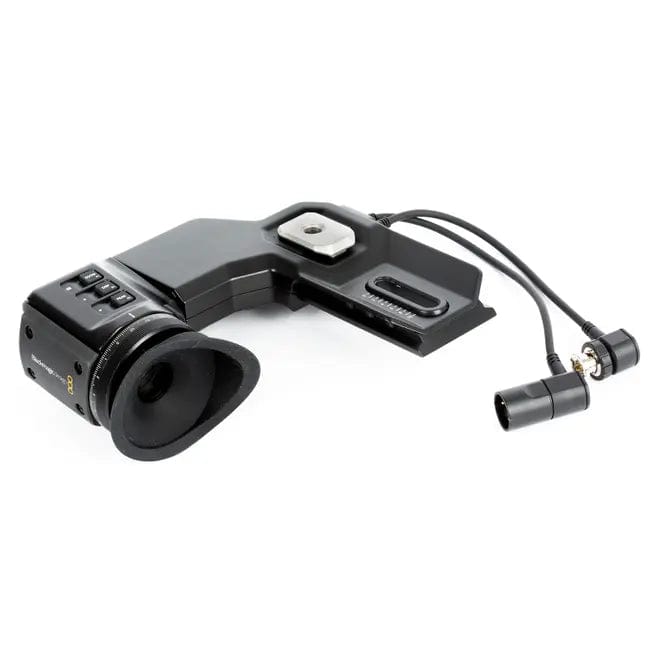

The Blackmagic URSA Viewfinder is the perfect accessory to make outdoors and handheld shooting with your URSA or URSA Mini digital film camera easy. You get an extremely high quality viewfinder with 1080HD resolution display, true precision glass optics, built in tally light and built in menus, overlays and even a digital focus chart!
SDI Video Inputs
1 x 3G-SDI BNC.
Power Input
1 x 4 pin XLR 12V.
Computer Interface
USB 2.0 Mini-B port for software updates.
1 x 3G-SDI BNC.
Power Input
1 x 4 pin XLR 12V.
Computer Interface
USB 2.0 Mini-B port for software updates.
12V power input via 4 pin XLR connected via 12v power output.
Operating Temperature
0° to 40° C (32° to 104° F)
Storage Temperature
-20° to 60° C (-4° to 140° F)
Relative Humidity
0% to 90% non-condensing
Blackmagic URSA Viewfinder
3/8 inch viewfinder mounting thumb screw for URSA
3/8 inch viewfinder mounting thumb screw for URSA
Blackmagic URSA Mini Shoulder kit is required for mounting URSA Viewfinder on URSA Mini or URSA Mini Pro.
12 Month Limited Manufacturer’s Warranty.
