Effective Sensor Size
35.64mm x 23.32mm (Large Format)

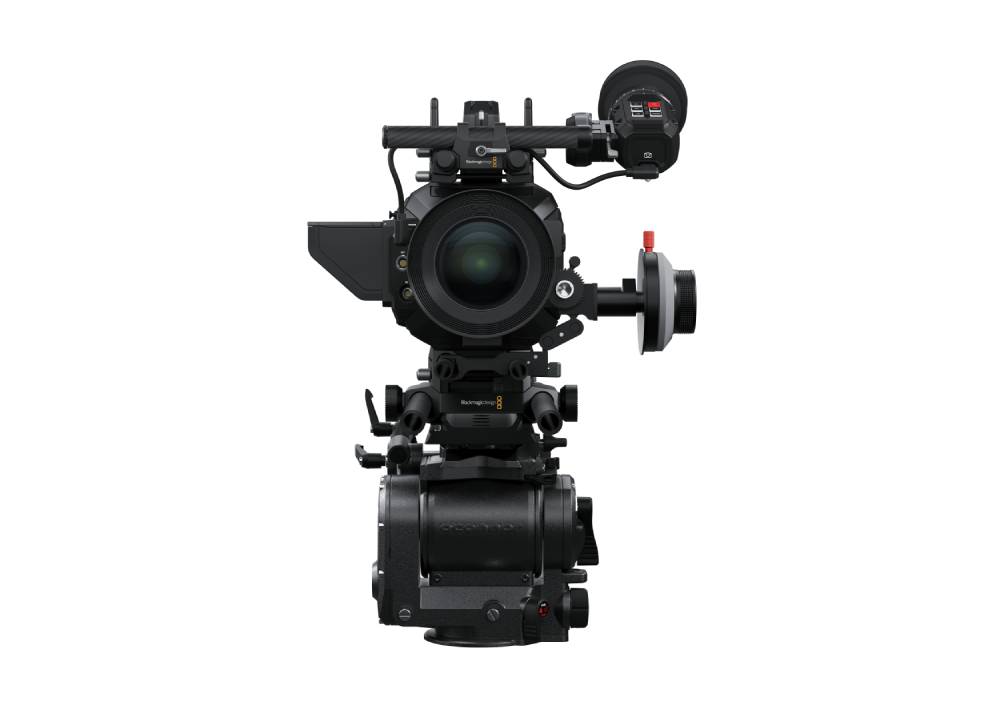

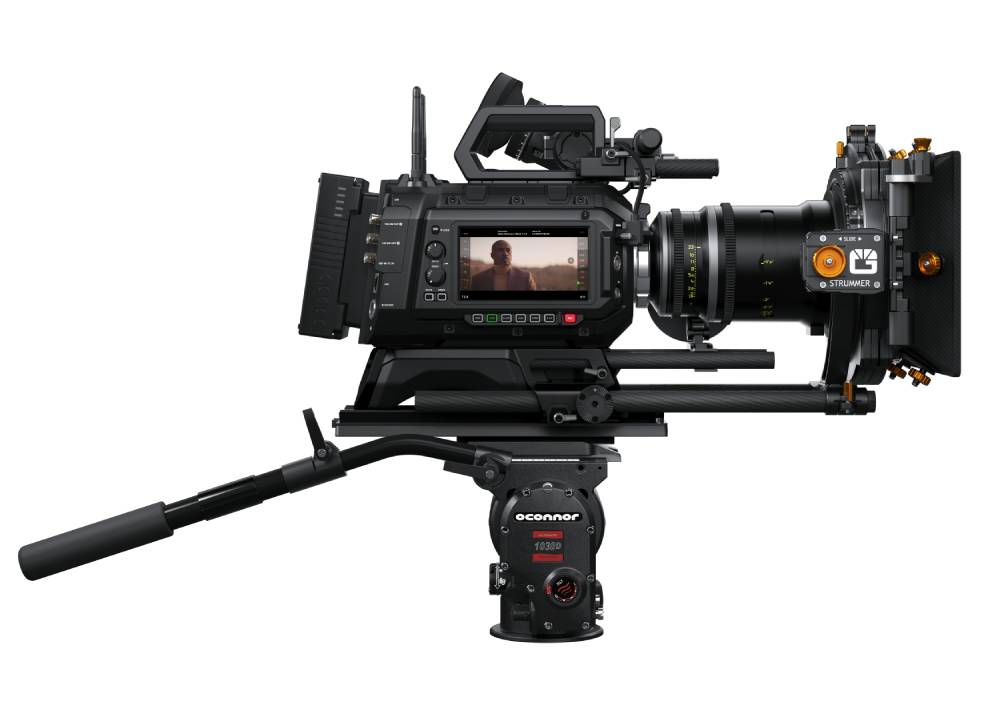

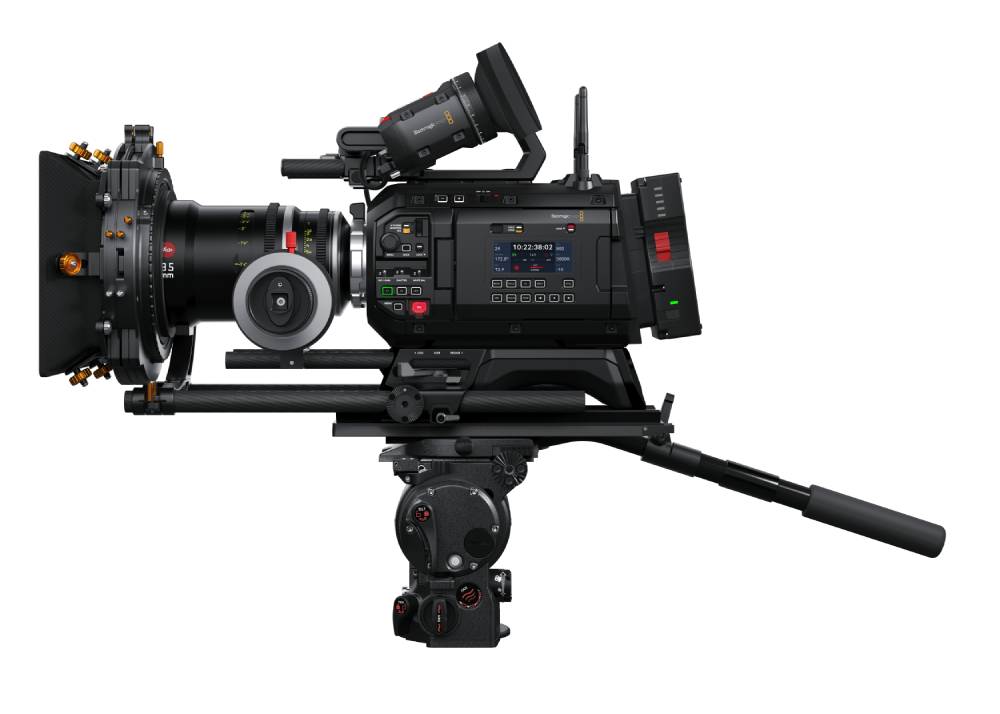

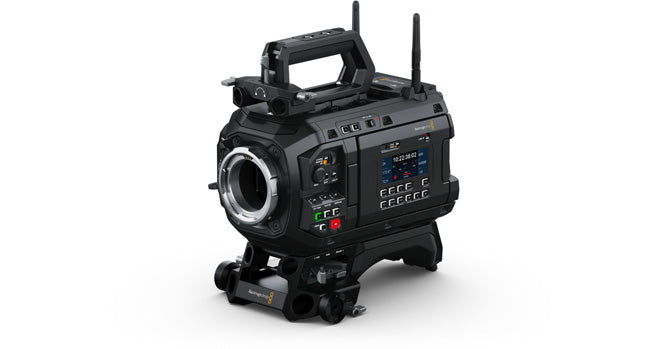

Blackmagic URSA Cine 12K is a revolution in digital film with a new large format RGBW 36 x 24mm sensor with larger photo-sites for 16 stops of dynamic range. This revolutionary model also includes interchangeable lens mounts, a dedicated assist station with a second 5″ HDR LCD touchscreen, built in ND filters and industry standard Lemo and Fischer connections. Blackmagic URSA Cine comes with a massive 8TB of removable high performance media storage built in and also includes high speed 10G Ethernet and Wifi for fast media upload and syncing to Blackmagic Cloud.
Camera Features
Lens Mount
PL mount. Interchangeable with URSA Cine lockable EF mount included.
Lens Control
Active EF and PL mount lens control with compatible lenses.
Dynamic Range
16 Stops
Shooting Resolutions
12,288 x 8040 (12K 3:2 open gate)
12,288 x 6480 (12K 16:9)
12,288 x 6912 (12K 17:9)
12,288 x 5112 (12K 2.4:1)
9648 x 8040 (12K 6:5)
9408 x 6264 (9K 3:2)
8688 x 4896 (9K 16:9)
9312 x 4896 (9K 17:9)
9312 x 3864 (9K 2.4:1)
7680 x 6408 (9K 6:5)
8192 x 5360 (8K 3:2 open gate)
8192 x 4608 (8K 16:9)
8192 x 4320 (8K 17:9)
8192 x 3408 (8K 2.4:1)
6432 x 5360 (8K 6:5)
4096 x 2680 (4K 3:2 open gate)
4096 x 2304 (4K 16:9)
4096 x 2160 (4K 17:9)
4096 x 1704 (4K 2.4:1)
3216 x 2680 (4K 6:5)
Frame Rates
Project frame rates of 23.98, 24, 25, 29.97, 30, 50, 59.94 and 60 fps supported. Maximum sensor frame rate dependent on resolution selected.
High Speed Frame Rates
12K 3:2 open gate up to 80 fps
12K 17:9 up to 100 fps
12K 2.4:1 up to 120 fps
9K 3:2 Super 35 up to 100 fps
8K / 4K 3:2 open gate up to 144 fps
8K / 4K 2.4:1 up to 224 fps
Built in ND Filters
Button activated ND filters with clear, 2-stop, 4-stop and 6-stop IR ND filters.
Focus
Focus button turns on peaking, auto focus available using compatible lenses.
Iris Control
Iris wheel and touchscreen slider for manual iris adjustment on electronically controllable lenses, iris button for instant auto iris settings on compatible lenses so no pixel is clipped in film mode. Scene average auto exposure in video mode.
Screens
2 x Monitoring Screens
1 x Camera Status Screen
Monitoring Screen Dimensions
5 inch.
Monitoring Screen Resolution
1920px x 1080px
Monitoring Screen Brightness
1500 nits.
Monitoring Screen Type
LCD capacitive touchscreen
Metadata Support
Automatically populated lens data from i/Technology with compatible PL, LPL lenses and electronic EF lenses when using optional EF lens mount. Automatic recording of camera settings and slate data such as project, scene number, take and special notes.
Controls
Touchscreen menus on 5 inch screen. Push buttons for other controls. 7 assignable shortcut keys plus 6 assignable shortcut keys on URSA Cine EVF.
Timecode Clock
Highly accurate timecode clock. Less than 1 frame drift every 8 hours.
Connections
Total Video Outputs
2
SDI Rates
1.5G, 3G, 6G, 12G.
Analog Audio Inputs
2 x XLR analog switchable between mic, line and AES audio. Phantom power support.
Analog Audio Outputs
1 x 3.5mm headphone jack
Reference Inputs
Tri-Sync/Black Burst and Timecode.
Viewfinder
1 x Viewfinder USB-C with power, data, video and locking connector.
Accessories
1 x 7-pin Lemo ‘EXT’ for power out, serial communication, and run/stop.
1 x 3-pin Fischer ‘RS’ for power out and run/stop.
Computer Interface
2 x USB Type-C side expansion ports for camera accessories.
Software updates using rear side USB-C.
Ethernet
1 x 10Gb/s RJ‑45 connector supporting 10/100/1000/10G BASE-T for Web Media Management, Blackmagic Cloud uploads, camera control and streaming.
