SDI Reference Inputs
1
CONTACT US
WE WANT TO HEAR FROM YOU
Please feel free to Email: mediatitanstech@gmail.com or Phone: (03) 9021 2521 or send us a message here. Please allow one business day to respond.
INQUIRIES
- Description
- Connections
- Standards
- Streaming
- Control
- Software
- Shipping details
- Reviews
Description
Blackmagic Streaming Decoder 4K is a professional streaming decoder that lets you receive an H.264 or H.265 stream from Blackmagic Streaming Encoder, ATEM switcher or Blackmagic camera and convert it back to SDI and HDMI video. Includes Blackmagic Cloud streaming and 12G-SDI reference input that lets you connect SDI tally, camera control and talkback back to the encoder.

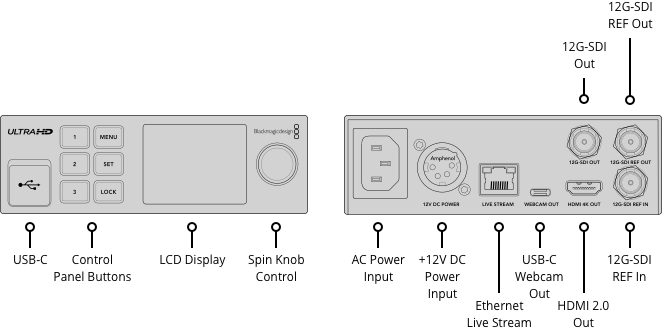

Connections
SDI Video Outputs
1
SDI Reference Outputs
1
SDI Rates
1.5G, 3G, 6G, 12G
HDMI 2.0 Video Outputs
1
Live Stream Audio Inputs / Outputs
2 channels embedded Live Stream audio on output.
2 channels embedded Program audio on input.
2 channels embedded talkback audio on input.
SDI Audio Inputs
16 channels embedded audio on 12G-SDI Ref In.
SDI Audio Outputs
16 channels embedded audio on 12G-SDI Ref Out.
2 channels embedded audio on 12G-SDI Out.
HDMI Audio Outputs
8 channels embedded audio on Monitor Out.
Webcam Outputs
1 x USB-C up to 2160p60
Ethernet
Ethernet supports 10/100/1000 BASE-T for live streaming, configuration and software updates.
Standards
HD Video Input Standards
720p50, 720p59.94, 720p60,
1080i50, 1080i59.94, 1080i60,
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60,
1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
Ultra HD Video Input Standards
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
SDI Compliance
SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M level A and B, SMPTE 2081‑1, SMPTE 2081‑10, SMPTE 2082‑1, SMPTE 2082‑10, SMPTE 2084 and SMPTE 2108‑1.
Video Input Color Space
Rec. 709, Rec. 2020
3G SDI
Auto detects SMPTE level A or B on SDI input.
HDMI HD Video Standards
720p50, 720p59.94, 720p60
1080i50, 1080i59.94, 1080i60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
HDMI Ultra HD Video Standards
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
HDMI 4K Video Standards
4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp50 DCI, 4Kp59.94 DCI and 4Kp60 DCI
HDMI Color Precision
4:2:2
HDMI Color Space
YUV
Video Streaming Standards
720p25, 720p30, 720p50, 720p60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
Streaming
Direct Streaming
Receives (RTMP) H.264 or (SRT) H.265 streams from the Blackmagic Streaming Encoder or compatible Blackmagic cameras.
Closed Captions
Web Presenter 4K supports embedding CEA‑608 and CEA‑708 closed captions in your live RTMP stream.
Timecode
Support source timecode over RTMP and SRT streams on 12G-SDI Out.
Control
Control Panel
Built in control panel including 6 buttons, spin knob control and 2.2 inch color display.
Device Control
Front panel, USB‑C or Ethernet.
External Control
Supports remote camera control, color corrector, tally and talkback.
REST API over Ethernet for external control via HTTP when used with REST client applications.
Displays
Built in 2.2 inch LCD for monitoring video, audio and status plus menu settings.
Software
Compatible Services and Software
Facebook, Twitch, YouTube, Twitter, Restream.IO, Vimeo, BoxCast, Castr, AfreecaTV, Bilibili, DouYu, Weibo, Zoom, Skype, Microsoft Teams, QuickTime Player, FaceTime, OBS Studio, Open Broadcaster, VLC, Wirecast Play, Wowza Streaming Engine.
