USB-C with Locking Connector
Video, power, data and software updates.
CONTACT US
WE WANT TO HEAR FROM YOU
Please feel free to Email: mediatitanstech@gmail.com or Phone: (03) 9021 2521 or send us a message here. Please allow one business day to respond.
INQUIRIES
- Description
- Connections
- Features
- Control
- Mounting
- Compatible Cameras
- Power Requirements
- Physical Specifications
- Environmental Specifications
- Warranty
- Shipping details
- Reviews
Description

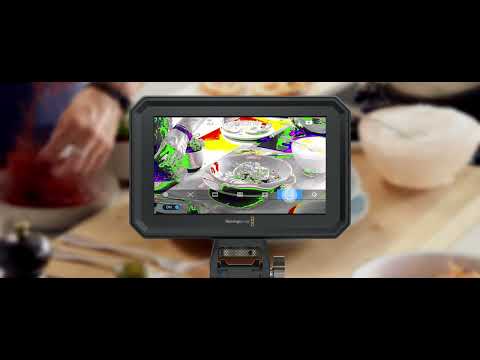

Blackmagic PYXIS Monitor is a versatile 5″ HDR touchscreen monitor with full camera control that can be mounted almost anywhere. It provides an additional monitoring and camera control option that can be mounted anywhere so it’s perfect for use when rigging or other accessories block Blackmagic PYXIS’ internal display. The bright 1500 nit high brightness screen makes monitoring easy, even in bright sunlight and includes a removable sunshade that also folds up to protect the monitor. Blackmagic PYXIS Monitor is easy to set up with a single USB-C cable connection for video, power and camera control.
Connections
Features
Display Size
5 inch.
Display Resolution
Full 1920 x 1080.
Display Type
LCD capacitive touchscreen.
Display Brightness
1500 nits.
Frame Rates
Up to 60fps.
Tally
Rear facing LED tally light.
Accelerometer
Automatically rotates image when monitor mounted upside down.
Control
On Screen Controls
Tap screen to control Monitor Overlays,Frame Rate, Shutter, Iris, Timecode,ISO, White Balance, Tint, Power,Record Start/Stop, Media, Audio,Focus Zoom, Digital Slateand camera menus.
Button Controls
Includes F1, F2, F3 assignable functionbuttons to recall preset parameters ortoggle functions.
Function Button Presets
FPS: Preset Value
Iris: Preset Value
WB: Preset Value
ISO: Preset Value
Shutter: Preset Value
Function Button Toggle
Clean Feed
Status Text
Display LUT
Frame Guides
Focus Assist
False Color
Zebra
Grid
Safe Area Guide
Off Speed Rec
Focus Zoom
Focus
Record
Auto White Balance
Color Bars
Playback
False Color + Zebra
OIS
Stream
Still
Mounting
Mounting Points
1 x 1/4-20 bottom mounting point with ARRI locating pin pattern.
2 x M4 bottom mounting points.
1 x 1/4-20 side mounting point with ARRI locating pin pattern.
2 x M4 side mounting points.
Compatible Cameras
Blackmagic PYXIS 6K
Blackmagic PYXIS 6K PL
Blackmagic PYXIS 6K EF
Blackmagic URSA Cine 12K LF
Blackmagic URSA Cine 17K 65
Operating Systems
Mac 13.0 Ventura,
Mac 14.0 Sonoma or later.
Windows 10 and 11.
Power Requirements
Powered over USB-C.
Physical Specifications
Environmental Specifications
Operating Temperature
0°to 40°C (32° to 104°F)
Storage Temperature
-20°to 60°C (-4° to 140°F)
Relative Humidity
0% to 90% non-condensing
What's Included
Blackmagic PYXIS Monitor
Blackmagic PYXIS Clip On Sunshade
Welcome wallet with QR code for software download
Blackmagic Design Sticker
Warranty
Product Warranty
1 Year Limited Manufacturer’s Warranty.
