Effective Sensor Size
23.10mm x 12.99mm (Super 35)

Lens Mount
Active EF mount.

Lens Control
Iris, focus and zoom on supported lenses.

Dynamic Range
13 Stops.

Dual Native ISO
400 and 3200

Shooting Resolutions
6144 x 3456 (6K) up to 50 fps
6144 x 2560 (6K 2.4:1) up to 60 fps
5744 x 3024 (5.7K 17:9) up to 60 fps
4096 x 2160 (4K DCI) up to 60 fps
3840 x 2160 (Ultra HD) up to 60 fps
3728 x 3104 (3.7K 6:5 anamorphic) up to 60 fps
2868 x 1512 (2.8K 17:9) up to 120 fps
1920 x 1080 (HD) up to 120 fps

Frame Rates
Maximum sensor frame rate dependent on resolution and codec selected. Project frame rates of 23.98, 24, 25, 29.97, 30, 50, 59.94 and 60 fps supported.
Off-speed frame rates up to 60 fps in 6K 2.4:1, 120 fps in 2.8K 17:9 and 1080HD.

Built in ND Filters
None

Focus
Auto focus available using compatible lenses.

Iris Control
Iris wheel and touchscreen slider for manual iris adjustment on electronically controllable lenses, iris button for instant auto iris settings on compatible lenses.

Screen Dimensions
5” 1920 x 1080.

Screen Type
LCD capacitive touchscreen.

Metadata Support
Automatically populated lens data from electronic EF lenses. Automatic recording of camera settings and slate data such as project, scene number, take and special notes. A 3D LUT can also be embedded in metadata of Blackmagic RAW files.

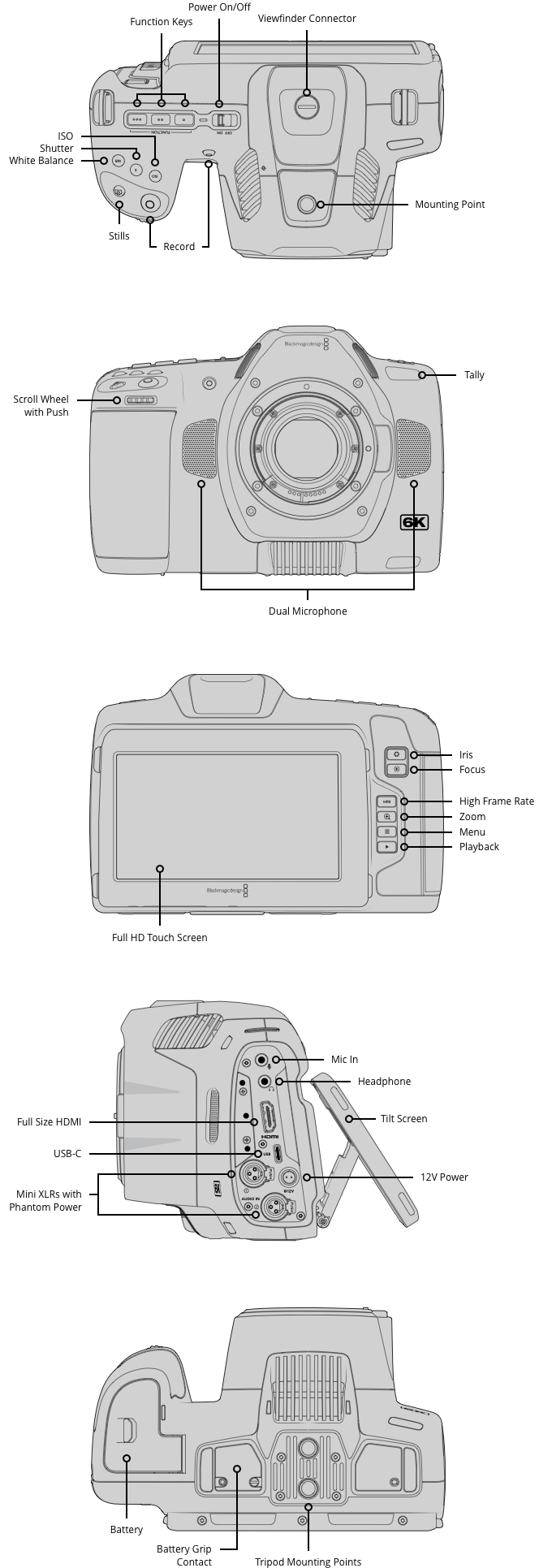

Controls
Touchscreen menus on 5 inch screen. 1 x Power Switch, 1 x Record Button, 1 x Stills Button, 1 x Scroll Wheel with push integrated into handgrip, 1 x ISO Button, 1 x White Balance, 1 x Shutter Button, 3 x software configurable Fn buttons, 1 x IRIS Button, 1 x Focus Button, 1 x High Frame Rate (HFR) Button, 1 x Zoom Button, 1 x Menu Button and 1 x Playback Button.

Timecode Clock
Highly accurate timecode clock. Less than 1 frame drift every 8 hours.

Total Video Inputs
None

Total Video Outputs
1 x HDMI up to 1080p60

Analog Audio Inputs
2 x mini XLR analog switchable between mic with phantom power support and line level (up to +14dBu). 1 x 3.5mm Stereo Input.
All audio inputs can also be used for Timecode input.

Analog Audio Outputs
1 x 3.5mm headphone jack.

Computer Interface
USB Type-C for external drive recording, PTP camera control and software updates..

Microphone
Integrated stereo microphone.

Built in Speaker
1 x mono speaker.

SD Video Standards
None

HD Video Standards
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60

Ultra HD Video Standards
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60

4K DCI Standards
4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp50 DCI, 4Kp59.94 DCI, 4Kp60 DCI.

Power Supply
1 x External 12V power supply.

External Power Input
1 x 2‑pin locking connector.

Battery Type
NP-F570

Battery Life
Approximately 60 minutes
(recording 6K RAW at 24 fps to CFast 2.0 with screen brightness at 50%)

Power
12V-20V.

Storage Type
1 x CFast 2.0.
1 x SD UHS-II card.
1 x high speed USB-C expansion port for external media.

Recording Formats
Blackmagic RAW 3:1, 5:1, 8:1, 12:1, Q0, Q1, Q3 and Q5 at 6144 x 3456, 6144 x 2560, 5744 x 3024, 4096 x 2160, 3728 x 3104 and 2868 x 1512 with film, extended video, video dynamic range or custom 3D LUT embedded in metadata.
ProRes at 4096 x 2160, 3840 x 2160 and 1920 x 1080 with film, extended video or video dynamic range or custom 3D LUT.

Storage Rates
Storage rates based on 30 frames per second.

6144 x 3456 (6K)
Blackmagic RAW 3:1 - 323 MB/s
Blackmagic RAW 5:1 - 194 MB/s
Blackmagic RAW 8:1 - 121 MB/s
Blackmagic RAW 12:1 - 81 MB/s
Blackmagic RAW Q0 - 242 to 483 MB/s
Blackmagic RAW Q1 - 162 to 387 MB/s
Blackmagic RAW Q3 - 108 to 277 MB/s
Blackmagic RAW Q5 - 65 to 162 MB/s

6144 x 2560 (6K 2.4:1)
Blackmagic RAW 3:1 - 240 MB/s
Blackmagic RAW 5:1 - 144 MB/s
Blackmagic RAW 8:1 - 90 MB/s
Blackmagic RAW 12:1 - 60 MB/s
Blackmagic RAW Q0 - 180 to 359 MB/s
Blackmagic RAW Q1 - 120 to 287 MB/s
Blackmagic RAW Q3 - 80 to 205 MB/s
Blackmagic RAW Q5 - 49 to 120 MB/s

5744 x 3024 (5.7K 17:9)
Blackmagic RAW 3:1 - 264 MB/s
Blackmagic RAW 5:1 - 159 MB/s
Blackmagic RAW 8:1 - 100 MB/s
Blackmagic RAW 12:1 - 67 MB/s
Blackmagic RAW Q0 - 198 to 396 MB/s
Blackmagic RAW Q1 - 133 to 317 MB/s
Blackmagic RAW Q3 - 89 to 227 MB/s
Blackmagic RAW Q5 - 54 to 133 MB/s

4096 x 2160 (4K DCI)
Blackmagic RAW 3:1 - 136 MB/s
Blackmagic RAW 5:1 - 82 MB/s
Blackmagic RAW 8:1 - 51 MB/s
Blackmagic RAW 12:1 - 35 MB/s
Blackmagic RAW Q0 - 102 to 203 MB/s
Blackmagic RAW Q1 - 68 to 163 MB/s
Blackmagic RAW Q3 - 46 to 116 MB/s
Blackmagic RAW Q5 - 28 to 68 MB/s
Apple ProRes 422 HQ - 117.88 MB/s
Apple ProRes 422 - 78.63 MB/s
Apple ProRes 422 LT - 54.63 MB/s
Apple ProRes Proxy - 24.25 MB/s

3840 x 2160 (Ultra HD)
Apple ProRes 422 HQ - 110 MB/s
Apple ProRes 422 - 73.6 MB/s
Apple ProRes 422 LT - 51 MB/s
Apple ProRes Proxy - 22.4 MB/s

3728 x 3104 (3.7K 6:5 anamorphic)
Blackmagic RAW 3:1 - 177 MB/s
Blackmagic RAW 5:1 - 106 MB/s
Blackmagic RAW 8:1 - 67 MB/s
Blackmagic RAW 12:1 - 45 MB/s
Blackmagic RAW Q0 - 133 to 265 MB/s
Blackmagic RAW Q1 - 89 to 212 MB/s
Blackmagic RAW Q3 - 60 to 152 MB/s
Blackmagic RAW Q5 - 36 to 89 MB/s

2868 x 1512 (2.8K 17:9)
Blackmagic RAW 3:1 - 67 MB/s
Blackmagic RAW 5:1 - 41 MB/s
Blackmagic RAW 8:1 - 26 MB/s
Blackmagic RAW 12:1 - 17 MB/s
Blackmagic RAW Q0 - 51 to 101 MB/s
Blackmagic RAW Q1 - 34 to 81 MB/s
Blackmagic RAW Q3 - 23 to 58 MB/s
Blackmagic RAW Q5 - 14 to 34 MB/s

1920 x 1080
Apple ProRes 422 HQ - 27.5 MB/s
Apple ProRes 422 - 18.4 MB/s
Apple ProRes 422 LT - 12.75 MB/s
Apple ProRes Proxy - 5.6 MB/s.

Software Included

Blackmagic OS
DaVinci Resolve Studio for Mac and Windows including activation key
Blackmagic Camera Setup
Blackmagic RAW Player
Blackmagic RAW QuickLook Plugin
Blackmagic RAW SDK
Blackmagic RAW Speed Test.

Blackmagic Pocket Cinema Camera 6K G2
Lens turret dust cap
Camera strap
30W power supply with locking connector and international adapters
NP-F570 battery
NP-F series battery USB charger
Welcome booklet
DaVinci Resolve Studio activation key

.
