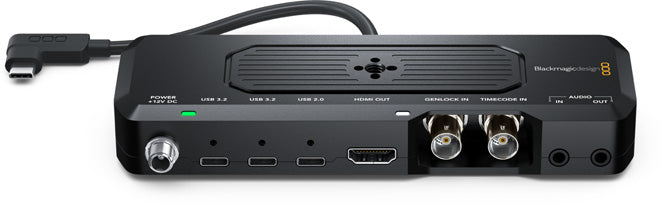

Blackmagic Camera ProDock transforms your iPhone into a professional production camera with all the connections you need to build a custom rig. It also supports the Blackmagic Camera app for iPhone! You get connections for HDMI monitoring, mic, headphones, genlock, USB for external disks and power! With professional BNC connections, Blackmagic Camera ProDock supports external genlock and timecode to keep all your cameras in perfect sync. You get 3 USB-C ports so you can connect control accessories and external SSDs for recording, plus the power management will ensure everything can run at the same time.

1 x HDMI 2.1 (Type A)

Outputs resolution and frame rateset in Blackmagic Camera for iOS.

1 x 3.5mm stereo mini-jack.

1 x 3.5mm stereo mini-jack.

1 x BNC,

1 x 3.5mm audio input supports timecode in.

1 x BNC,

Tri-Sync or Black Burst.

2 x USB 3.2 high speed portsfor recording to external media

1 x USB 2.0 port for accessories

1 x USB-C cable and plug.

Connect external microphones via the3.5mm stereo mini-jack, or USB‑C ports.

Connect headphones via the3.5mm stereo mini-jack audio output.

Record Blackmagic Camera clips to internal iPhone storage or external storage connected by USB.

1 x power LED indicator,

1 x front tally LED indicator,

1 x genlock LED indicator.

Download for free on the App Store.

Operating System

Supported on iPhones running iOS 26 or later.

Some features dependent on iPhone model.

1 x External 12V DC 60W power supply.

+12V to +15V DC input withlocking 5.5mm barrel connector.

5V 𝌂 1.5A 7.5W max output each USB‑C port.

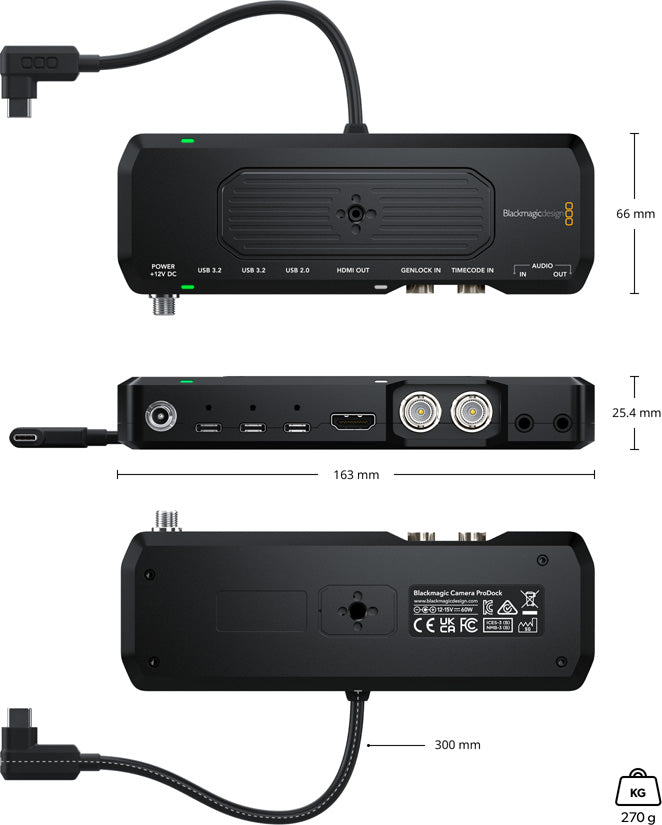

Physical Specifications

0°to 40°C (32° to 104°F)

-20°to 45°C (-4° to 113°F)

0% to 90% non-condensing

1 Year Limited Manufacturer’s Warranty.
