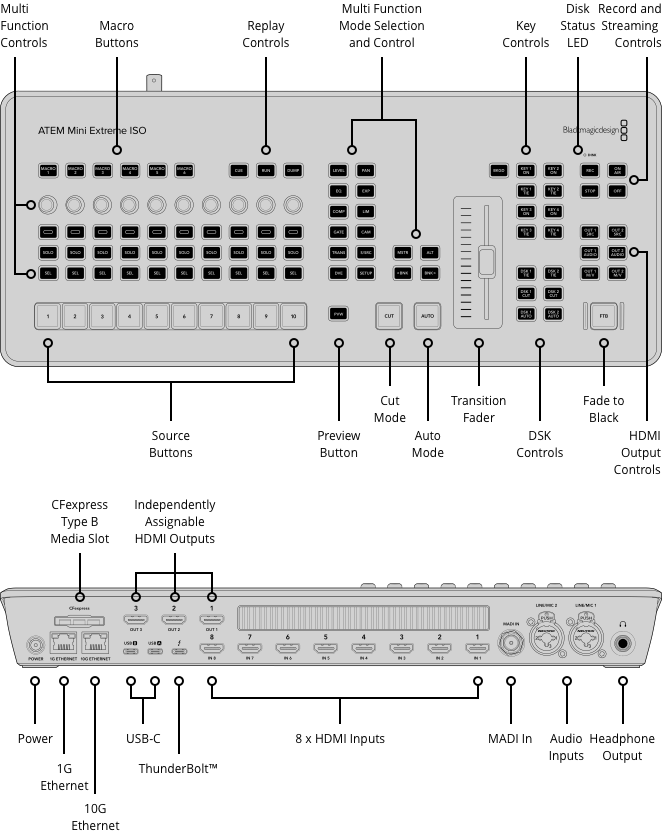

ATEM Mini Extreme ISO G2 is a powerful yet compact live switcher for building a high-end broadcast studio. Get an expanded professional style control panel with built in streaming, 8 standards converted HDMI inputs, 3 independent HDMI outputs, built in streaming engine, multi-view, CFexpress and Thunderbolt for record/playback. There is also 10G Ethernet for fast network storage access, XLR audio inputs, USB webcam, DVE, chroma key, media player and ISO recording of all 8 video inputs.

9

4

4

1.5G, 3G

8 x HDMI type A, 10-bit HD switchable.
2 channel embedded audio.

3

3

2 x XLR Combo with phantom power.
1 x BNC 32 Ch MADI digital audio.

1 x 6.35mm headphone jack

None

None

On all 8 HDMI inputs and remote sources

On all 8 HDMI inputs and remote sources

2 x USB-C supporting 720p or 1080p at PGM frame rate.

1 x HDMI
1 x Webcam

Yes

On Blackmagic HDMI and remote cameras.

1 x 1G Ethernet for simple streaming, control panels and internet connection,
1 x 10G Ethernet connection for recording.

720p50, 720p59.94, 720p60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
1080i50, 1080i59.94, 1080i60

1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60

1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60

4:2:2 YUV

10-bit

Rec 709

1280 x 720p 50Hz, 59.94Hz and 60Hz
1920 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94 and 60Hz
1920 x 1080i 50, 59.94Hz and 60Hz

Hardware based real time.

-

1

10

NKK Buttons

1

Set using Multi Function Controls and Fairlight Audio Status Output.

6

Set using Multi Function Controls and Fairlight Audio Status Output.

Set using Multi Function Controls and Fairlight Audio Status Output.

8

6

1

2

2

6

1 NKK button

4

2

Up to 4

1

2

Up to 4

DVE only

2

Set using Multi Function Controls and Fairlight Audio Status Output.

16

Red for program and green for preview indication.

26 input x 2 channel mixer.
(8 HDMI+16MADI+XLR+Thunderbolt)
Selectable On/Off/Audio-Follow-Video per channel plus separate gain control per channel.
Level and Peak metering. Plus new Fairlight audio enhancements: Compressor, Gate, Limiter, 6 bands of parametric EQ. Master gain control.

Balanced stereo XLR combo connectors

Up to 8 frames

+48V phantom power on XLR combo inputs

Up to 8

Mapped to inputs in ATEM Software Control Settings.

Supports direct live streaming using Real Time Messaging Protocol (RTMP) and Secure Reliable Transport (SRT) over ethernet or a shared internet connection over USB‑C.

CFExpress slot for recording
Network Recording
USB-C Recording

8 x HDMI ISO inputs as H.264 .mp4 files at up to 70Mb/s quality at the ATEM video standard with AAC audio.
1 x Program out as H.264 .mp4 file at the Streaming quality setting and at the ATEM video standard with AAC audio.

26 x 2 channel audio inputs recorded as separate 24‑bit 48KHz .wav files. Including 1 x analog 2 channel audio input, 8 x Input source 2 channel embedded audio inputs and 32 x MADI audio channels.

Program switching recorded as a DaVinci Resolve project .drp file.

Supports media formatted ExFAT (Windows/Mac). APFS or HFS+ (Mac).

Configurable to 16, 13, 10, 7 or 4 up views including Program, Preview, 8 HDMI inputs, SuperSource, Clean Feed, Media Player, Streaming Status, Recording Status and Audio Meters.

HD

2

Fill and key for each Media Player.

20 with fill and key.

200 frames in 1080 HD.

PNG, TGA, BMP, GIF, JPEG and TIFF.

TGA Sequence.

WAV, MP3 and AIFF.

Built in control panel.Supports optional hardware panel.
ATEM Software Control Panel for Macand Windows included for free.

Compatible with ATEM Micro Panel, ATEM 1 M/E Advanced Panels, ATEM 2 M/E Advanced Panels, ATEM 4 M/E Advanced Panels plus ATEM Camera Control Panel and ATEM Micro Camera Panel.ATEM can also be configured using Blackmagic Videohub Hardware Panel Setup utility to route sources to destinations using Videohub Smart Control Pro and Videohub Master Control Pro.

Ethernet supports 10/100/1000/10G BaseT.

Ethernet used for direct connection between panel and chassis or via network. Also supports direct USB‑C connection. Ethernet or USB‑C used for updating the software.

58 Channel mixer.

Selectable On/Off/Audio-Follow-Video.

Level and Peak metering.

Master gain control.

6 band parametric EQ,Dynamics including Expander,Gate, Compressor and Limiter.

When used with most Blackmagic Design cameras, ATEM can control focus, iris and zoom of compatible lenses and camera settings including gain, white balance, tint, shutter, ND filter, color corrector, tally and record start/stop.

ATEM Software Control Panel included free for macOS 14.0 Sonoma, macOS 15.0 Sequoia or later. and Windows 10 or 11.

Using USB or Ethernet connection directly connected to Mac or Windows computers. Includes ATEM Setup Utility.

Set via ATEM Software Control, excluding ATEM chassis IP address which is set via the ATEM Switcher Utility connected via USB to chassis.
