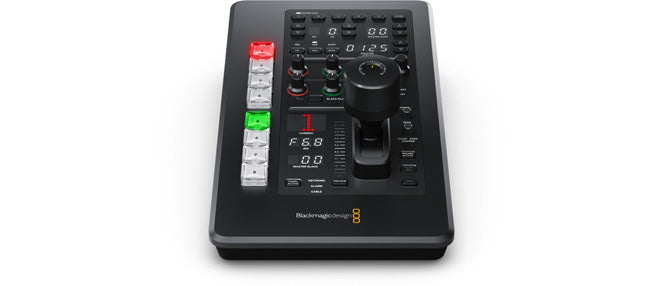

ATEM Micro Camera Panel is a portable camera panel with high end broadcast CCU controls. Control iris, pedestal, shutter, white balance, master gain, RGB balance and more for up to 8 cameras from a single panel. Connects to ATEM Software Control via Bluetooth or USB‑C.
Connections
USB Type‑C.
Bluetooth 5.1 LE
1 x USB‑C for firmware updates.
Product Specifics
8 x NKK buttons.
Assignable via setup utility.
Green off air, red on air.
White and black balance setup.
Flare via modifier key.
1
1
Auto Iris On, Coarse control.
CLS f32 to f1.2
-12dB to +32dB
0, 2, 4, 6.
1/24 to 1/2000
2500K to 10,000K
5 per camera.
Protects settings.
Software
ATEM Micro Panel controls ATEM Software Control Panel running on the host computer.
Operating Systems
Mac 14.0 Sonoma,
Mac 15.0 Sequoia or later.
Windows 10 and 11.
Windows 11 for ARM
Power Requirements
Internal battery with power switch.
USB-C port for external power supply and battery charging.
4 W max.
Minimum 3 hours.
(under normal use)

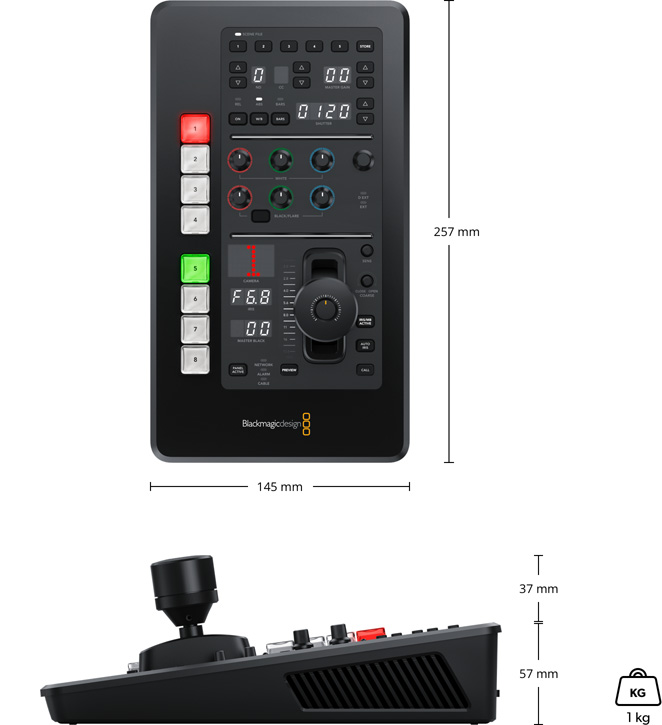

Physical Specifications
Environmental Specifications
5° to 40° C (41° to 104° F)
-20° to 45° C (-4° to 113° F)
0% to 90% non‑condensing
What's Included
ATEM Micro Camera Panel
Welcome wallet with QR code for software download
1 x USB‑C cable
Warranty
1 Year Limited Manufacturer’s Warranty.
