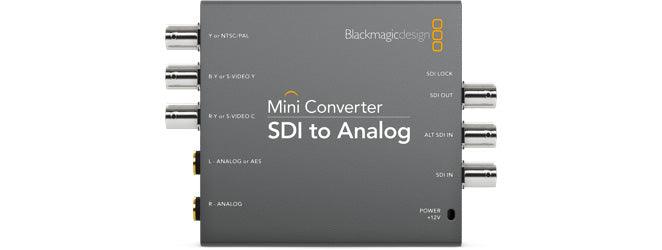

The perfect way to convert from SD and HD‑SDI to analog component, s‑video or NTSC/PAL composite. Mini Converter SDI to analog supports all SD and HD input formats up to 1080p30 and includes a down converter for when you need to convert from HD to standard definition analog formats such as s‑video and composite. Audio can be de‑embedded to balanced analog or AES/EBU. Mini Converter SDI to Analog is ideal for converting to older analog equipment when you don’t need the extra cost of the 6G‑SDI 4K model.

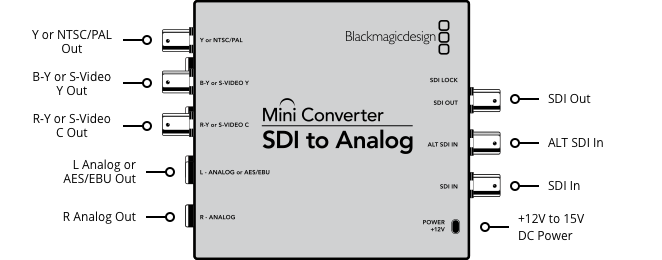

Connections
1 x SD, HD or 1.5G‑SDI. 1 x ALT SDI Input for automatic switch over if main input fails.
1 x SDI Loop Output.
270Mb, 1.5G
NTSC, PAL, S‑Video and component SD/HD from 1.5G‑SDI input.
2 channels of professional balanced analog audio with standard 1/4 inch jack connections.
2 channels of balanced AES/EBU audio.
Automatically switches over if main SDI input is lost.
Auto detection of SD, HD or 1.5G‑SDI.
USB
Yes
Standards
525i59.94 NTSC, 625i50 PAL
720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30, 1080i50, 1080i59.94, 1080i60
SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M level B, SMPTE 425M level B, ITU‑R BT.656 and ITU‑R BT.601
SDI video inputs are automatically detected between standard definition, high definition and level B 3G‑SDI.
4:2:2
Television standard sample rate of 48 kHz and 24 bit.
4:2:2
YUV
Auto detection of SD, HD or 3G‑SDI.
525i29.97 NTSC, 625i50 PAL, 720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080i50, 1080i59.94, 1080i60
YUV
4:2:2
Format Conversion
HD to SD down converter.
Software
Mac™ and Windows™ software upgrade via USB.
Via included updater application.
Operating Systems
Mac 10.15 Catalina,
Mac 11.1 Big Sur or later.
Windows 10, 64-bit.
Settings Control
Mini Switches or USB software.
Power Requirements
+12V universal power supply included with international socket adapters for most countries. Cable tie point.
8.04 Watts
12 ‑ 15V DC

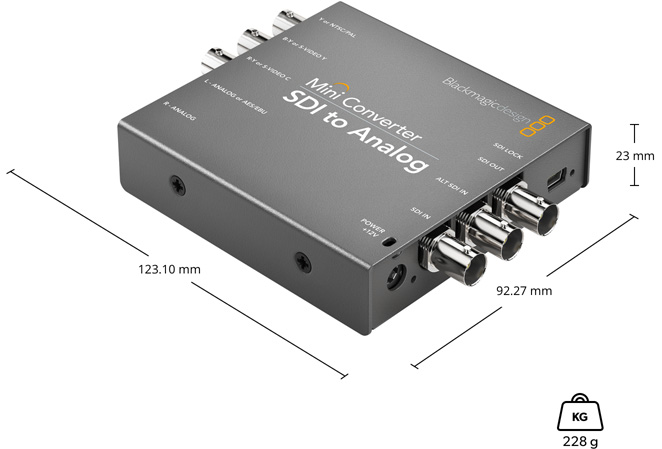

Physical Specifications
Environmental Specifications
0° to 40° C (32° to 104° F)
-20° to 45° C (-4° to 113° F)
0% to 90% non-condensing
What's Included
Mini Converter SDI to Analog
12V universal power supply with international socket adapters
Warranty
3 Year Limited Manufacturer’s Warranty.
